Engine Room Relay Block Assembly and Engine Room Junction Block Assembly Inner Circuit

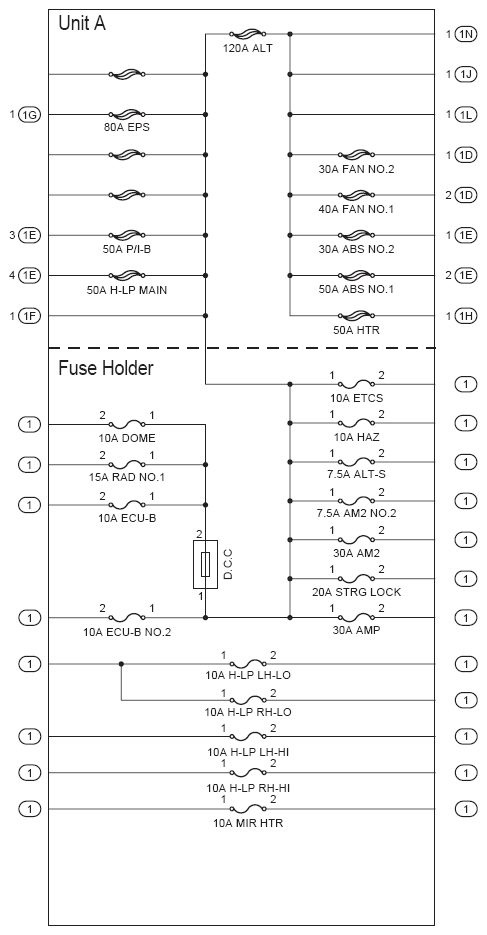

Fig 1: Engine Room R/B And J/B Assembly Inner Circuit Diagram (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

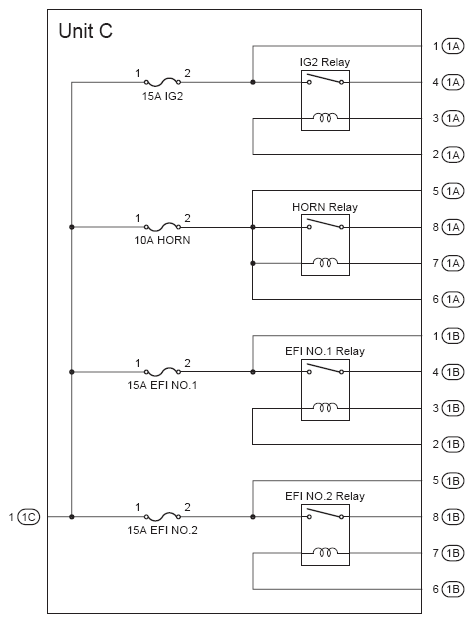

Fig 2: Engine Room R/B And J/B Assembly Inner Circuit Diagram (2 Of 2) With Relays

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B AND J/B INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
IG2 Relay
Horn Relay
EFI No.1 Relay
EFI No.2 Relay
