Occupant Classification System (Diagnostic Codes & Symptom Tests)
>>
Occupant Classification System
>>
DTC B1794: Open in Occupant Classification ECU Battery Positive Line
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC B1794: Open in Occupant Classification ECU Battery Positive Line: Wiring Diagram

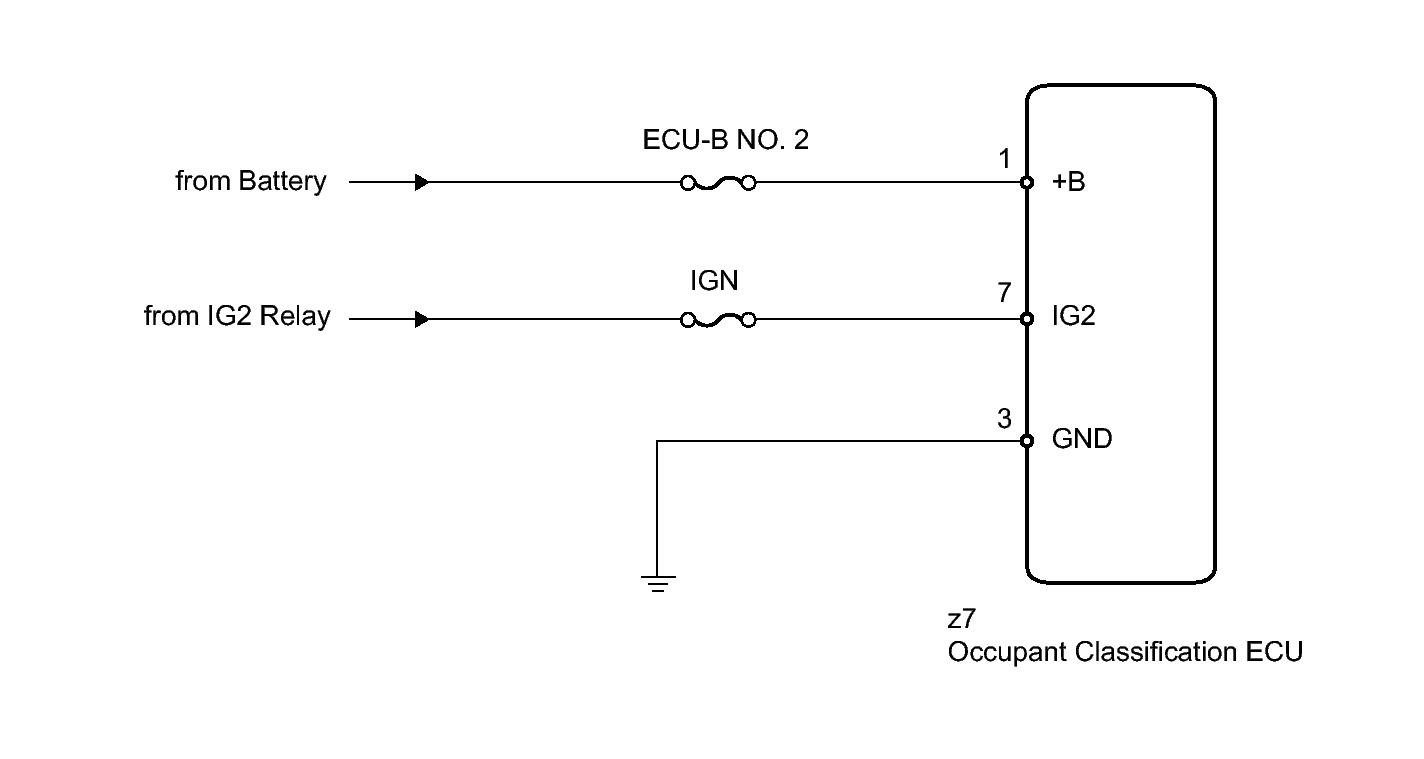

Fig 1: Occupant Classification ECU (Source Voltage) Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
