Unable to Unlock Steering Wheel (Engine cannot Start): Procedure

NG → GO TO DTC TABLE

OK: Go to next step

1. Check the power source mode change.
   1. When the electrical key transmitter is inside the vehicle and the shift lever is in P (for Automatic Transaxle), check that pressing the engine switch with the brake pedal (for Automatic Transaxle) or clutch pedal (for Manual Transaxle) released causes the power source mode to change as follows:

      OK

      Off → on (ACC) → on (IG) → off

NG → See step   13

OK: Go to next step

1. Use the Data List to check if the steering lock command is functioning properly.
   SMART KEY



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   Unlock Request Receive	Reception state of steering unlock command signal determined by certification ECU (smart key ECU assembly) and sent to ID code box (immobilizer code ECU)/OK or NG HINT:  The reception state is maintained for 10 seconds. When 10 seconds or more elapse after receiving the signal, the item changes to "NG".	OK: Within 10 seconds of turning engine switch on (IG) or on (ACC) or starting engine NG: Except above	If the unlock signal has not been received, the engine cannot be started. If this item does not change to "OK" even though the steering unlock conditions are met, the certification ECU (smart key ECU assembly) may be malfunctioning.

   OK

   Within 10 seconds of turning the engine switch on (ACC) or on (IG) or starting the engine, the Data List item changes to "OK".

NG → See step   6

OK: Go to next step

1. Disconnect the C18 steering lock ECU connector.
2. Measure the resistance and voltage according to the value(s) in the table below.

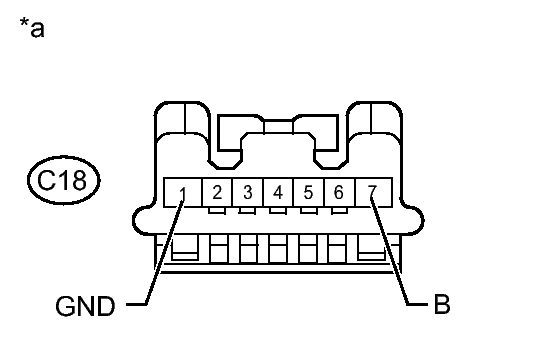

   Fig 1: Checking Harness And Connector (Steering Lock ECU - Battery And Body Ground)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   C18-1 (GND) - Body ground	Always	Below 1 Ω

   NOTE: If the result is not as specified, check for looseness in the connection which leads to ground.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   C18-7 (B) - Body ground	Always	11 to 14 V

   TEXT IN ILLUSTRATION



   *a	Front view of wire harness connector (to Steering Lock ECU)

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the C18 steering lock ECU connector.
2. Check the signal waveform according to the condition(s) in the table below.
   Fig 2: Inspecting Steering Lock ECU With Waveform

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   MEASUREMENT CONDITIONS



   Item	Content
   Tester Connection	C18-3 (IGE) - C18-1 (GND)
   Tool Setting	2 V/DIV., 200 ms./DIV.
   Vehicle Condition	Steering lock motor not operating → Steering lock motor operating → Steering lock motor not operating

   HINT:

   • When taking measurements when the lock motor is stopped, it is not necessary to perform any operations.
   • In order to take measurements when the lock motor is operating, perform either of the following operations:
     • To unlock the steering, carry the electrical key transmitter and turn the engine switch on (ACC) or on (IG) while the shift lever is in P*.
     • To lock the steering, turn the engine switch off with the shift lever in P*, and then open a door.

   *: for Automatic Transaxle

   TEXT IN ILLUSTRATION



   *a	Component with harness connected (to Steering Lock ECU)
   *b	Steering lock motor not operating
   *c	Steering lock motor operating

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   11

NG → See step   9

OK: Go to next step

NG → See step   10

OK: Go to next step

NG → See step   12

OK → END

NG → See step   15

OK → END

NG → See step   14

OK → END
