DTC P0715: Input / Turbine Speed Sensor Circuit Malfunction; DTC P0717: Input Speed Sensor Circuit No Signal: Procedure

1. Make sure that the connector is properly connected, and then check the speed sensor installation.

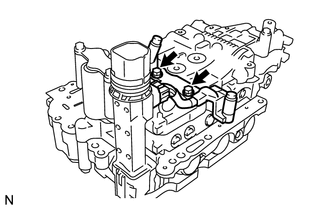

   Fig 1: Locating Speed Sensor Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   The installation bolts are tightened properly and there is no clearance between the sensor and transaxle case.

NG → See step   6

OK: Go to next step

1. Disconnect the speed sensor connector.
   Fig 2: Inspecting Transmission Wire

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the TCM.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   NTB speed sensor side - 1 (NTB) TCM side	Always	Below 1 Ω
   NTO speed sensor side - 2 (NTO) TCM side	Always	Below 1 Ω
   NTB speed sensor side - Body ground	Always	10 kΩ or higher
   NTO speed sensor side - Body ground	Always	10 kΩ or higher
   NTB speed sensor side - All other terminals except 1 (NTB) TCM side	Always	10 kΩ or higher
   NTO speed sensor side - All other terminals except 2 (NTO) TCM side	Always	10 kΩ or higher

   TEXT IN ILLUSTRATION



   *1	Transmission Wire
   *a	Speed Sensor Side
   *b	TCM Side

NG → See step   7

OK: Go to next step

1. Replace the speed sensor. Refer to REMOVAL .

NEXT: Go to next step

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / ECT / Trouble Codes / Clear.

   HINT:

   Write down the currently output DTCs before clearing them.

5. Perform the monitor drive pattern. Refer to MONITOR DRIVE PATTERN .
6. Enter the following menus: Powertrain / ECT / Trouble Codes.
7. Read the DTCs using the Techstream.
   RESULT



   Result	Proceed to
   Only P0715 or P0717 is output	A
   DTCs are not output	B

B → END

A → See step   5
