Power Source Mode does not Change to ON (IG and ACC): Wiring Diagram

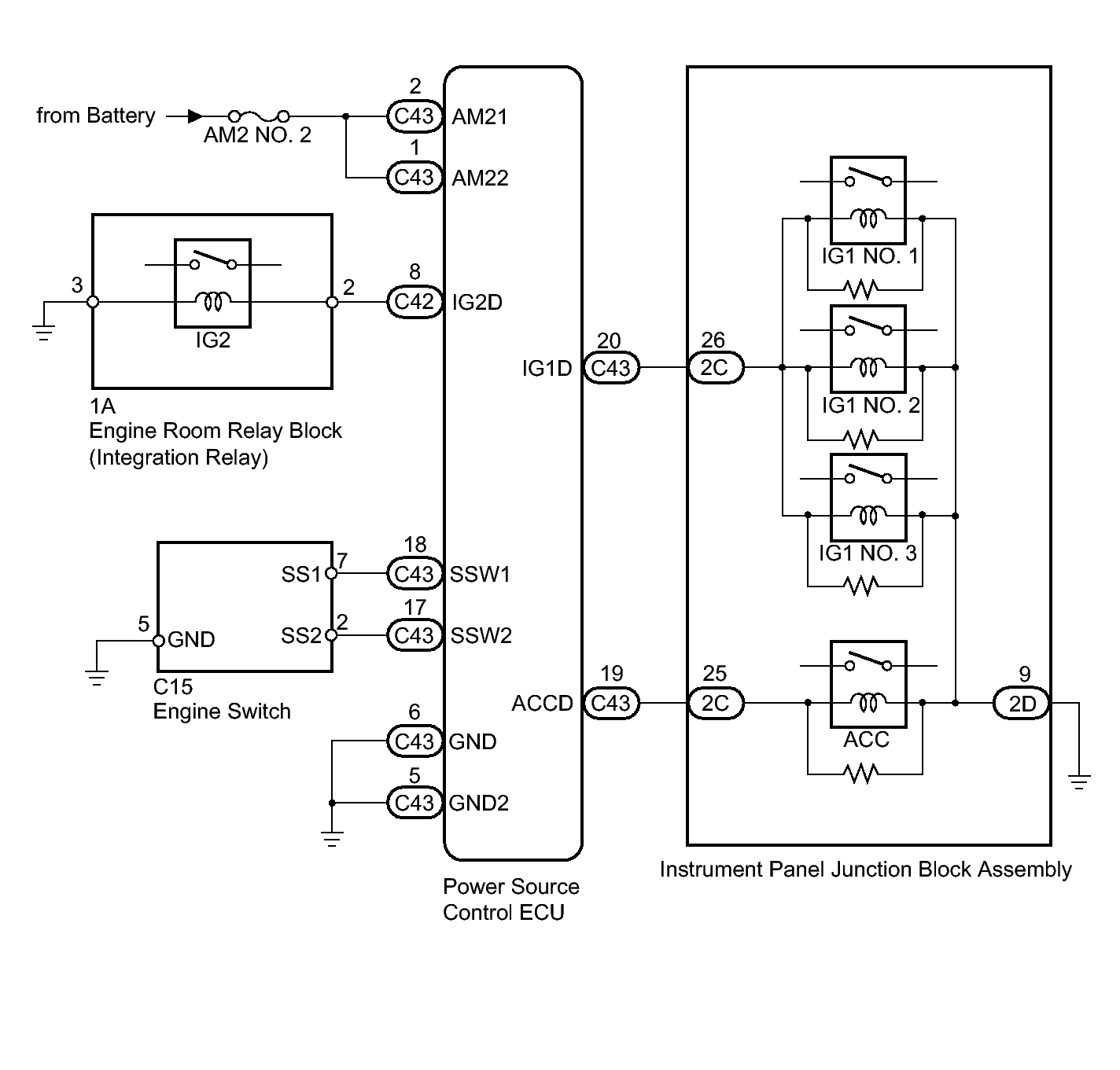

Fig 1: IG/ACC (Power Source Mode) - Wiring Diagram
GTY313427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
