System Diagram

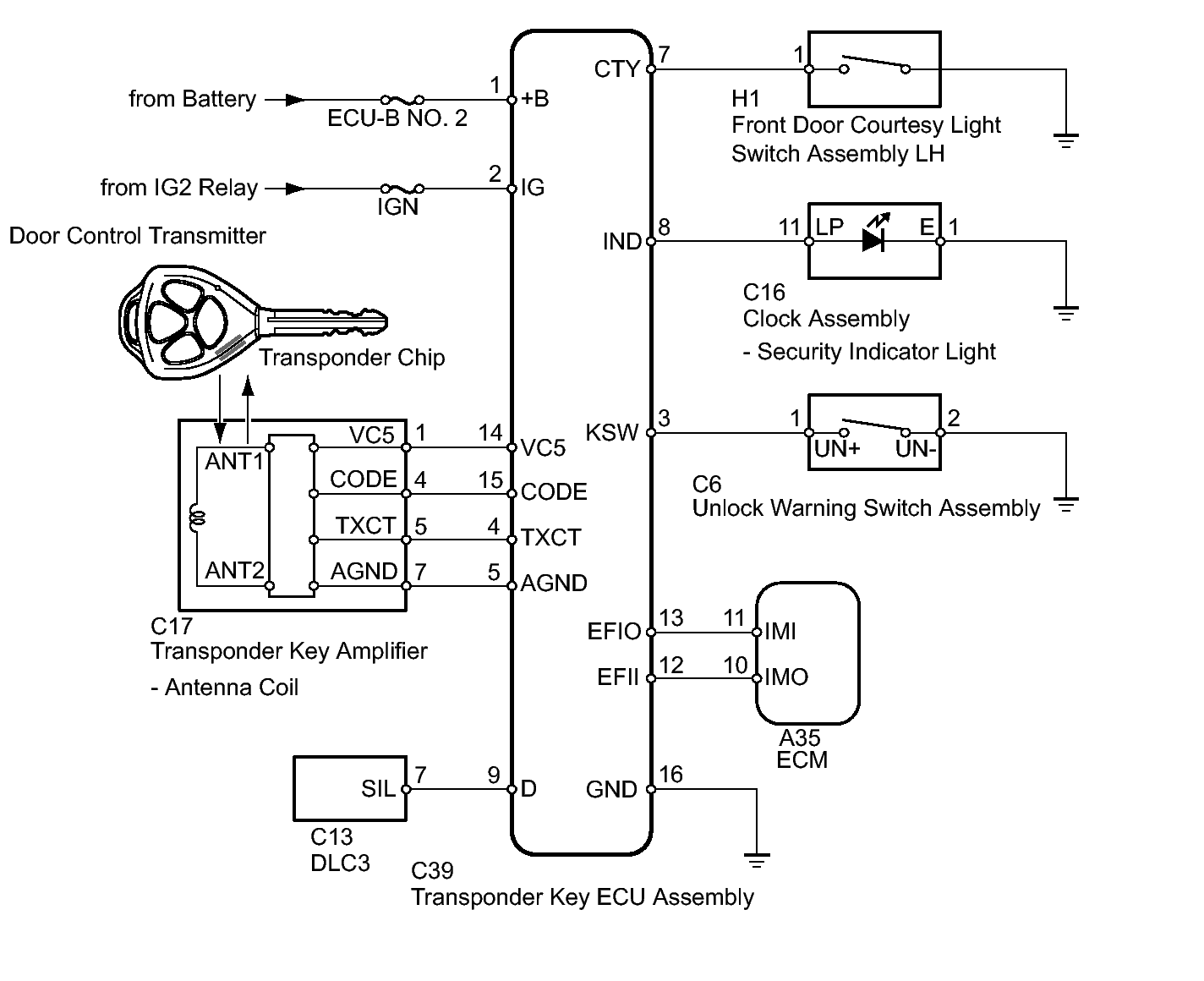

Fig 1: Engine Immobilizer System Circuit Diagram (W/O Smart Key System)
GTY314458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
