Steering Pad Switch: Removal: Removal

WARNING: Some of these service operations affect the SRS. Read the precautionary notices concerning the SRS before servicing. Refer to PRECAUTION .
  1. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
  3. REMOVE LOWER NO. 3 STEERING WHEEL COVER  . Refer to REMOVAL - Step 3
  4. REMOVE LOWER NO. 2 STEERING WHEEL COVER  . Refer to REMOVAL - Step 4
  5. REMOVE LOWER NO. 2 STEERING WHEEL COVER (w/ Cruise Control System)  . Refer to REMOVAL - Step 5
  6. REMOVE STEERING PAD  . Refer to REMOVAL - Step 6
  7. REMOVE STEERING PAD SWITCH LH
    1. Disconnect the connector from the spiral cable.
    2. w/ Shift Paddle Switch:

      Disconnect the connector from the No. 1 switch wire (shift paddle switch).

    3. Remove the 2 screws.

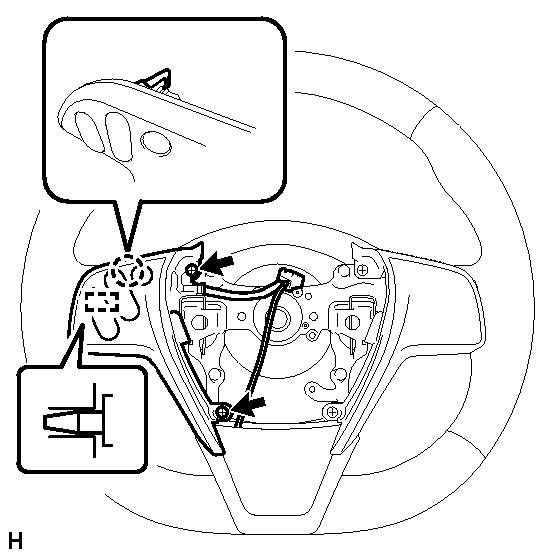

      Fig 1: Identifying Steering Pad Switch Screws, Claw And Guide
      GTY311737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Detach the claw and guide and remove the steering pad switch.
