DTC U0073/94: Control Module Communication Bus OFF; DTC U0100/65: Lost Communication with ECM / PCM; DTC U0123/62: Lost Communication with Yaw Rate Sensor Module; DTC U0124/95: Lost Communication with Lateral Acceleration Sensor Module; DTC U0126/63: Lost Communication with Steering Angle Sensor Module: Wiring Diagram

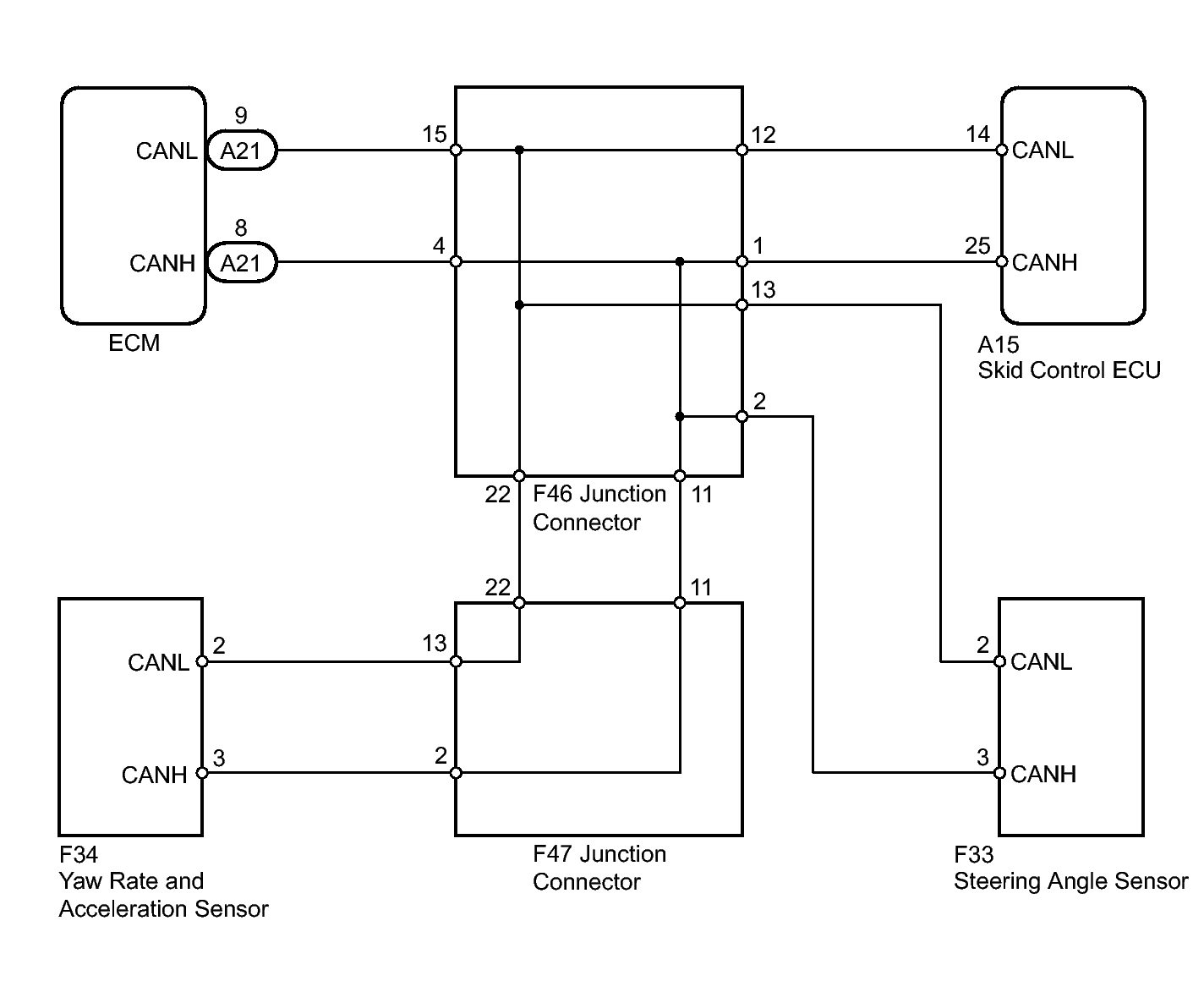

Fig 1: Skid Control ECU To Steering Angle, Yaw Rate & Acceleration Sensors Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
