Fusible Link Block Assembly - Dash Panel: Notes

For additional information, refer to Figure.

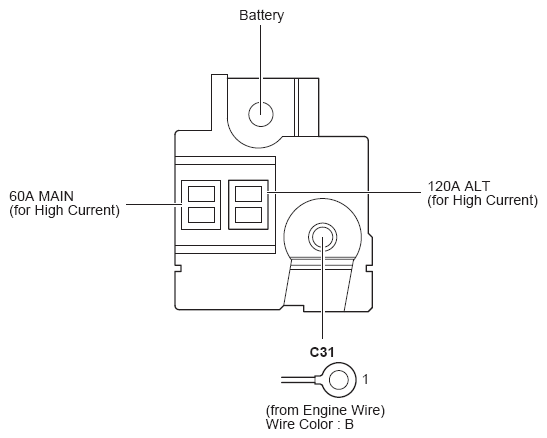

Fig 1: Fusible Link Block Assembly (1 Of 2) Fuse Identification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

FUSIBLE LINK BLOCK ASSEMBLY FUSE IDENTIFICATION LEGEND

Fuse		System
60A	MAIN	Charging
120A	ALT	Charging
		Engine Control
		Illumination and Taillight
		Key Reminder and Light Reminder
		Power Window
		Wireless Door Lock Control

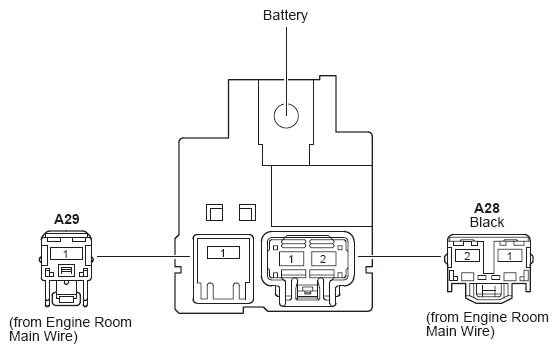

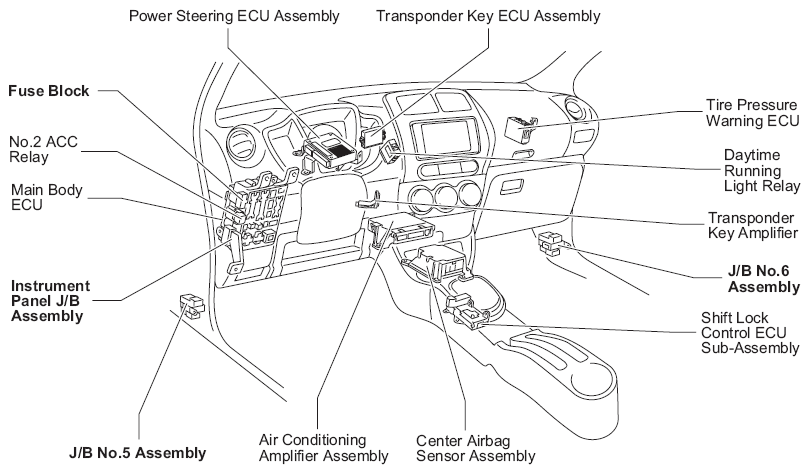

Fig 2: Fusible Link Block Assembly (2 Of 2)
