DTC B1794: Open in Occupant Classification ECU Battery Positive Line: Wiring Diagram

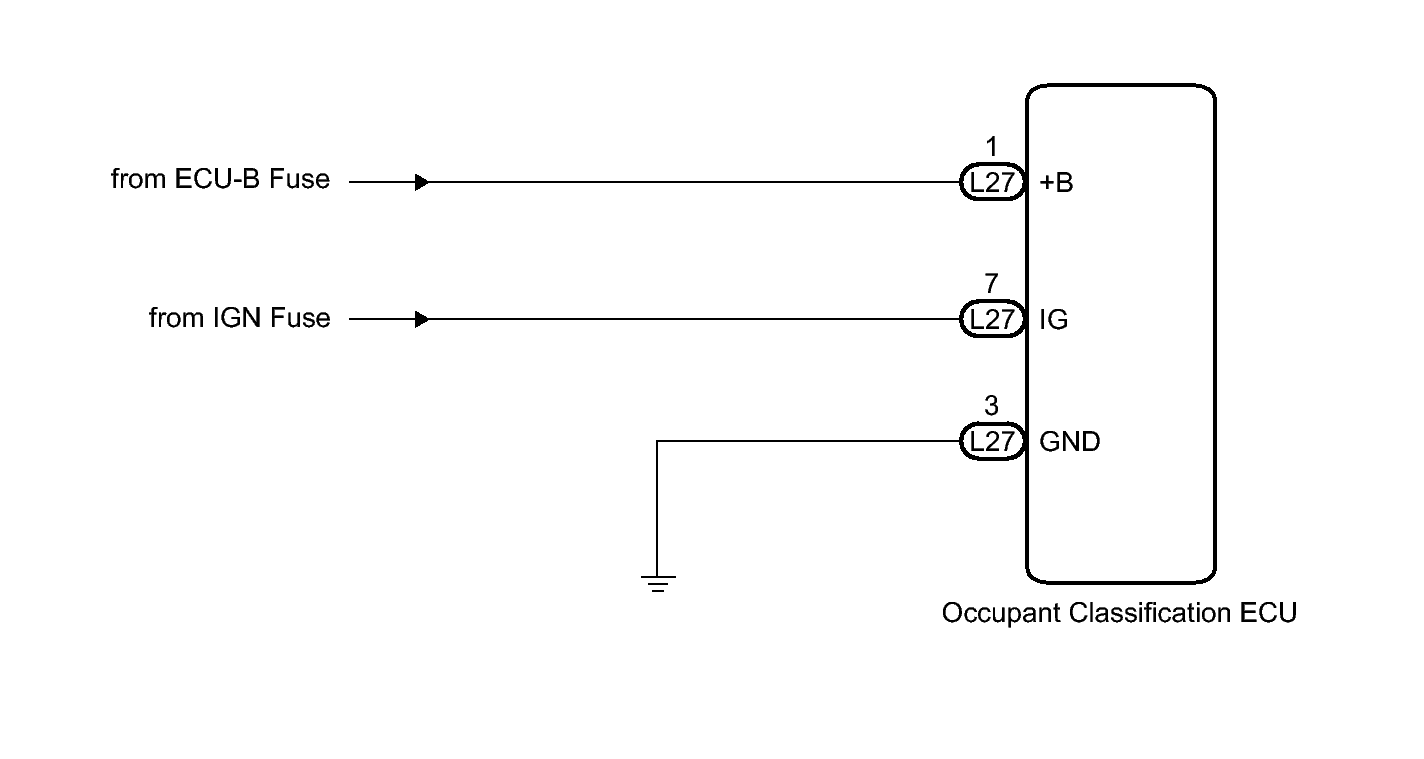

Fig 1: Occupant Classification ECU Battery Positive Wiring Diagram
GTY158145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
