Instrument Panel Junction Block Assembly - Lower Finish Panel: Notes

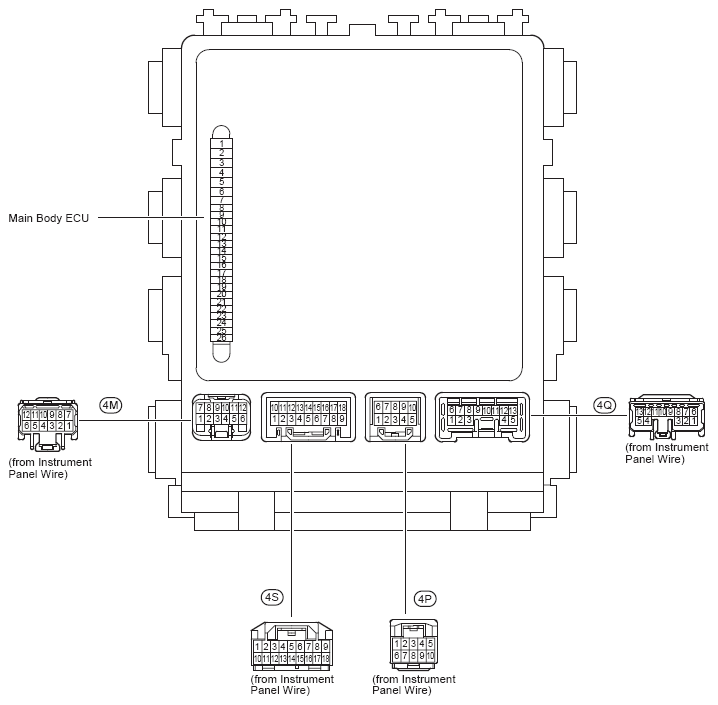

For additional information, refer to Figure.

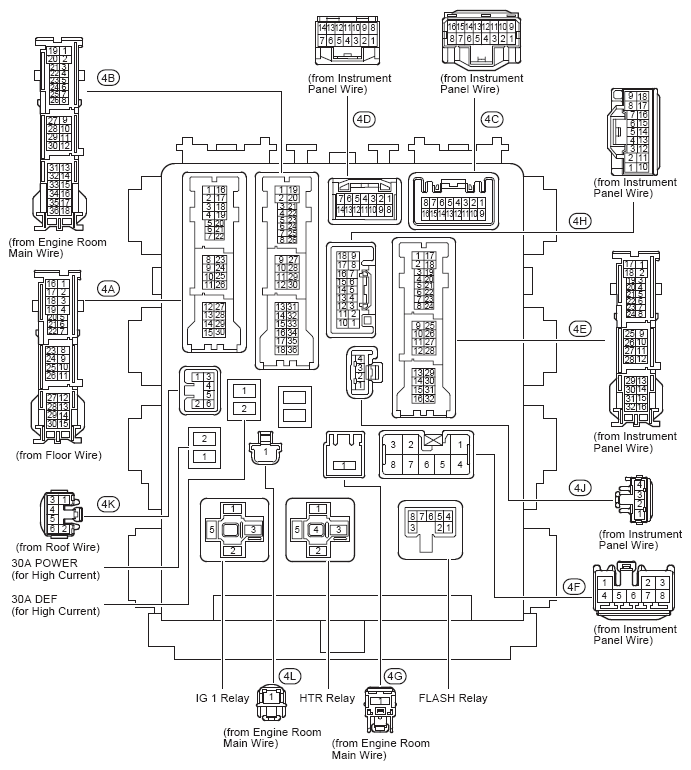

INSTRUMENT PANEL J/B RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Flasher Relay |
| HTR Relay |
| IG 1 Relay |

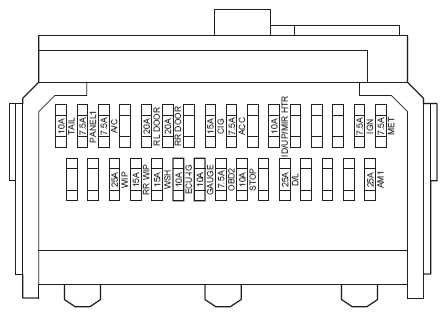

INSTRUMENT PANEL J/B ASSEMBLY FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 7.5A | A/C | Air Conditioning |
| Mirror Heater and Rear Window Defogger | ||
| 7.5A | ACC | Audio System |
| Back Door Opener | ||
| Clock | ||
| Combination Meter | ||
| Door Lock Control | ||
| Interior Light | ||
| Key Reminder and Light Reminder | ||
| Power Window | ||
| Remote Control Mirror | ||
| Wireless Door Lock Control | ||
| 7.5A | IGN | Cruise Control |
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| Engine Immobilizer System | ||
| Seat Belt Warning | ||
| SRS | ||
| 7.5A | MET | ABS, TRAC and VSC |
| Back Door Opener | ||
| Charging | ||
| Combination Meter | ||
| Cruise Control | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Engine Control | ||
| EPS | ||
| Illumination and Taillight | ||
| 7.5A | MET | Interior Light |
| Key Reminder and Light Reminder | ||
| Seat Belt Warning | ||
| SRS | ||
| Tire Pressure Warning System | ||
| 7.5A | OBD2 | Data Link Connector 3 |
| 7.5A | PANEL1 | Illumination and Taillight |
| Key Reminder and Light Reminder | ||
| 10A | ECU-IG | ABS, TRAC and VSC |
| Back Door Opener | ||
| Combination Meter | ||
| Cooling Fan | ||
| Cruise Control | ||
| Door Lock Control | ||
| EPS | ||
| Headlight | ||
| Interior Light | ||
| Key Reminder and Light Reminder | ||
| Power Window | ||
| Tire Pressure Warning System | ||
| Wireless Door Lock Control | ||
| 10A | GAUGE | ABS, TRAC and VSC |
| Air Conditioning | ||
| Back-Up Light | ||
| Charging | ||
| Clock | ||
| Cruise Control | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| Illumination and Taillight | ||
| Mirror Heater and Rear Window Defogger | ||
| Seat Belt Warning | ||
| Shift Lock | ||
| SRS | ||
| Turn Signal and Hazard Warning Light | ||
| 10A | ID/UP/MIR HTR | Engine Control |
| Mirror Heater and Rear Window Defogger | ||
| 10A | STOP | ABS, TRAC and VSC |
| Cruise Control | ||
| Electronically Controlled Transmission and A/T Indicator | ||
| 10A | STOP | Engine Control |
| Shift Lock | ||
| Stop Light | ||
| 10A | TAIL | Engine Control |
| Illumination and Taillight | ||
| 15A | CIG | Power Outlet |
| 15A | RR WIP | Rear Wiper and Washer |
| 15A | WSH | Front Wiper and Washer |
| Rear Wiper and Washer | ||
| 20A | RL DOOR | Power Window |
| 20A | RR DOOR | Power Window |
| 25A | D/L | Back Door Opener |
| Combination Meter | ||
| Door Lock Control | ||
| Interior Light | ||
| Key Reminder and Light Reminder | ||
| Power Window | ||
| Wireless Door Lock Control | ||
| 25A | WIP | Front Wiper and Washer |
| 30A | DEF | Engine Control |
| Mirror Heater and Rear Window Defogger | ||
| 30A | POWER | Power Window |
