DTC P0112: Intake Air Temperature Circuit Low Input; DTC P0113: Intake Air Temperature Circuit High Input [07/2013 - 12/2013]: Wiring Diagram

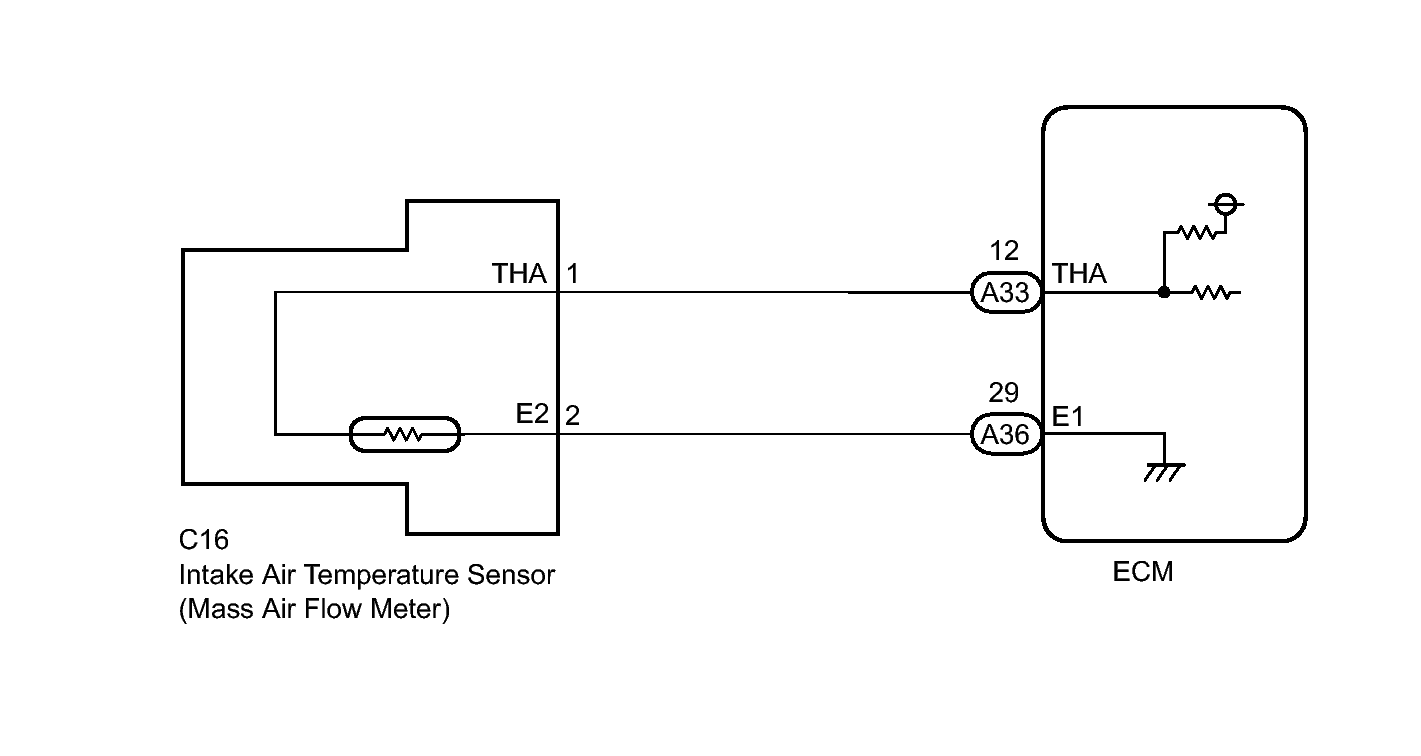

Fig 1: Identifying Intake Air Temperature Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
