Relay Block Assembly - Behind the Combination Meter

For additional information, refer to Figure.

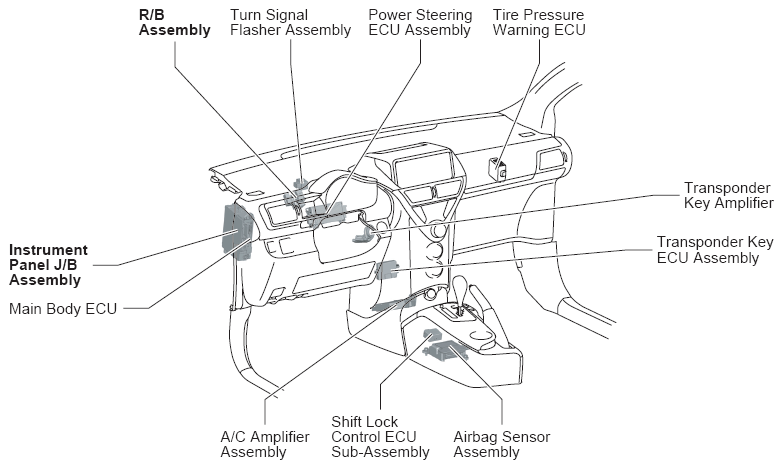

Fig 1: R/B Assembly Relay Identification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

R/B RELAY IDENTIFICATION

RELAY DESCRIPTION
HTR Relay
