Junction Connector End View (D71)

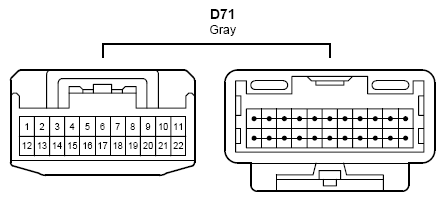

Fig 1: Junction Connector End View (D71)
G10282244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
