Engine Room Relay Block and Engine Room Junction Block Inner Circuit

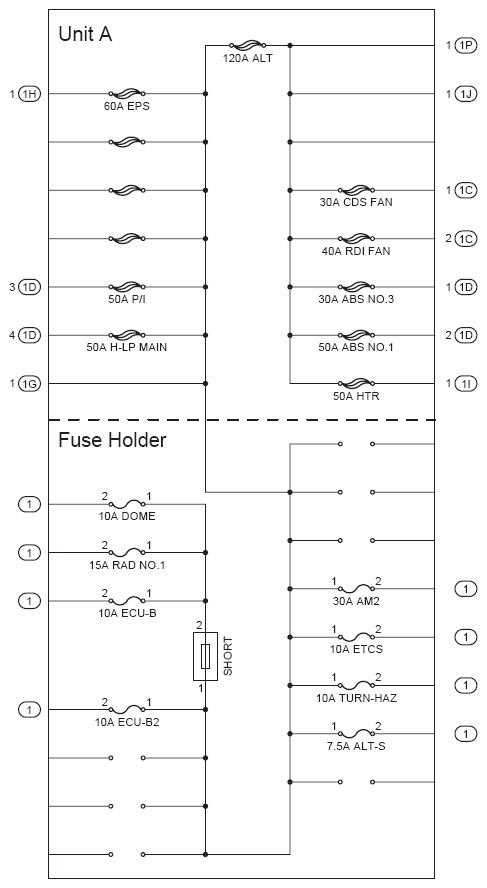

Fig 1: Engine Room R/B And Engine Room J/B Assembly Inner Circuit Diagram (Unit A)
G08776798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

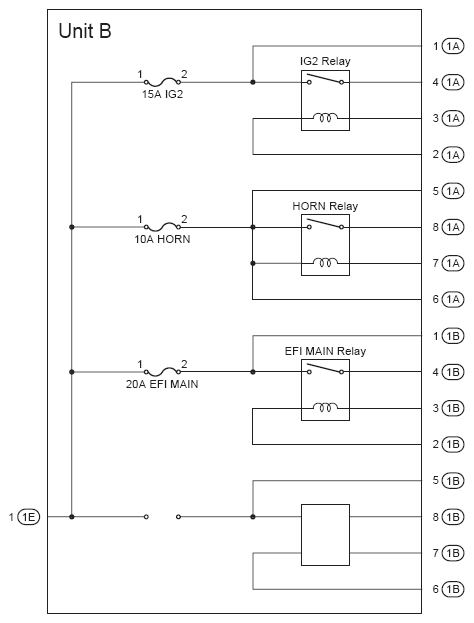

Fig 2: Engine Room R/B And Engine Room J/B Assembly Inner Circuit Diagram (Unit B) With Relays
G08776800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ENGINE ROOM R/B AND J/B INNER CIRCUIT RELAY IDENTIFICATION (UNIT B)

RELAY DESCRIPTION
IG2 Relay
Horn Relay
EFI Main Relay
