Installation [08/2013 - ]

  1. INSTALL STEERING COLUMN ASSEMBLY

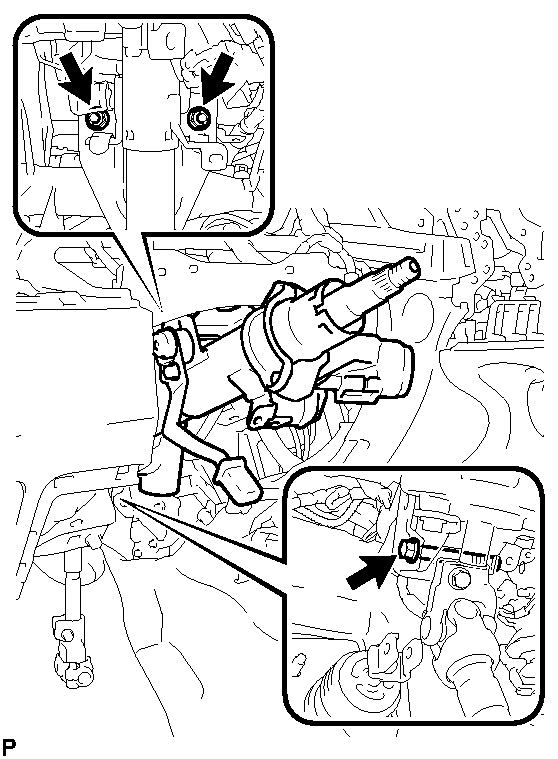

    Fig 1: Identifying Steering Column Assembly Bolts
    GTY162434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the steering column assembly onto the instrument panel reinforcement assembly with the bolts and 2 nuts.

      Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

    2. Connect all the connectors and clamp the wire harnesses onto the steering column assembly bracket.
  2. INSTALL BRAKE PEDAL SUPPORT  . Refer to INSTALLATION [08/2013 - ] - Step 4
  3. INSTALL BRAKE MASTER CYLINDER PUSH ROD CLEVIS  . Refer to INSTALLATION [08/2013 - ] - Step 5
  4. INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

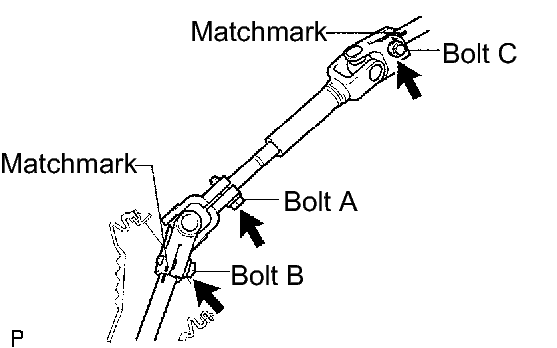

    Fig 2: Identifying Matchmarks On Steering Intermediate Assembly & Steering Gear Assembly
    GTY156965Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Align the matchmarks on No. 2 steering intermediate shaft assembly and the steering sliding yoke and provisionally install them with bolt C.

      Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

    2. Align the matchmarks on the steering sliding yoke and steering gear assembly and install them with bolt B.

      Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

    3. Tighten bolt A.

      Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

  5. INSTALL COLUMN HOLE COVER SILENCER SHEET

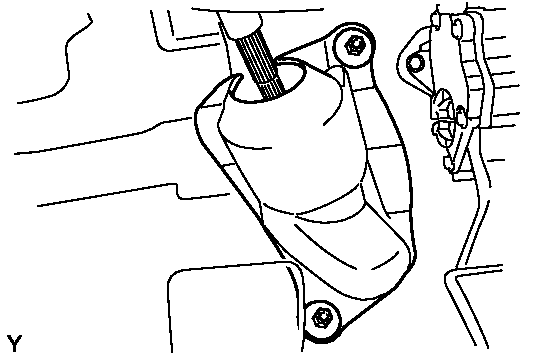

    Fig 3: Identifying Column Hole Cover Silencer Sheet Fasteners
    GTY161513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the column hole cover plate with the 2 clips.
    2. Install the floor carpet.
  6. INSTALL INSTRUMENT PANEL SUB REINFORCEMENT

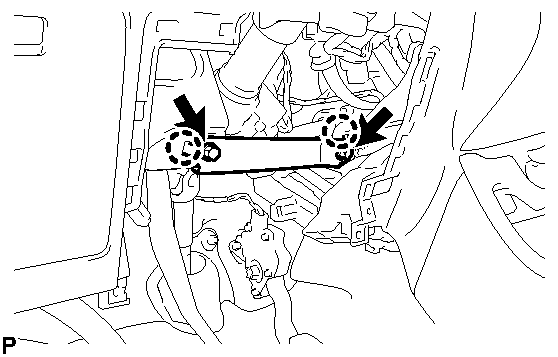

    Fig 4: Identifying Instrument Panel Sub Reinforcement With Bolts
    GTY157926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Align the 2 claws and install the instrument panel sub reinforcement with the 2 bolts.
  7. INSTALL INSTRUMENT PANEL UNDER TRAY  . Refer to INSTALLATION [08/2013 - ] - Step 15
  8. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY  . Refer to INSTALLATION [08/2013 - ] - Step 47
  9. CONNECT POWER STEERING ECU

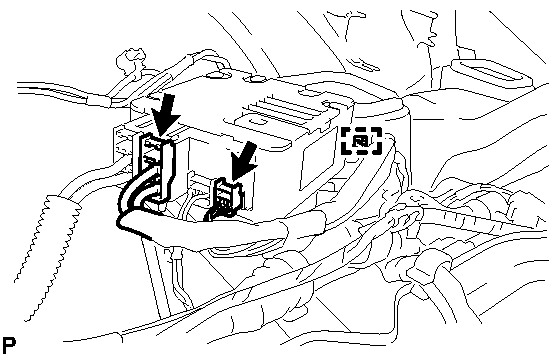

    Fig 5: Identifying Power Steering ECU Connectors & Clamps
    GTY162841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Connect the 2 steering column assembly connectors to the power steering ECU.
    2. Install the power steering motor harness and torque sensor wire harness clamps onto the side of the power steering ECU.
    3. Tilt the steering column assembly up and down to make sure that the power steering motor harness and torque sensor wire harness do not interfere with any components.
  10. INSTALL UPPER INSTRUMENT PANEL  . Refer to INSTALLATION [08/2013 - ] - Step 12
  11. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY  . Refer to INSTALLATION [08/2013 - ] - Step 13
  12. INSTALL INSTRUMENT CLUSTER FINISH PANEL RETAINER  . Refer to INSTALLATION [08/2013 - ] - Step 14
  13. INSTALL INSTRUMENT CLUSTER FINISH CENTER PANEL SUB-ASSEMBLY  . Refer to INSTALLATION [08/2013 - ] - Step 15
  14. INSTALL COMBINATION METER ASSEMBLY  . Refer to INSTALLATION [08/2013 - ] - Step 1
  15. INSTALL INSTRUMENT CLUSTER FINISH PANEL  . Refer to INSTALLATION [08/2013 - ] - Step 2
  16. INSTALL FRONT PILLAR GARNISH RH  . Refer to INSTALLATION [08/2013 - ] - Step 22
  17. INSTALL FRONT PILLAR GARNISH LH  . Refer to INSTALLATION [08/2013 - ] - Step 23
  18. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH  . Refer to INSTALLATION [08/2013 - ] - Step 20
  19. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH  . Refer to INSTALLATION [08/2013 - ] - Step 21
  20. INSTALL COMBINATION SWITCH ASSEMBLY

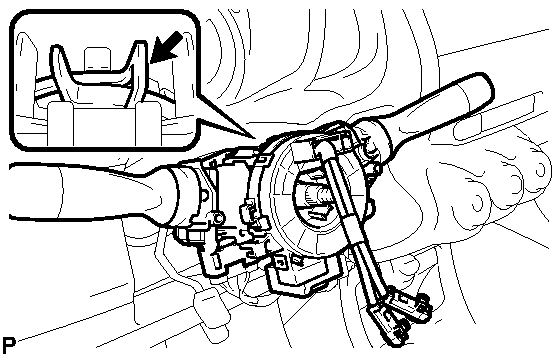

    Fig 6: Identifying Combination Switch Assembly Clamp
    GTY157924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install the turn signal switch assembly with spiral cable onto the steering column assembly with the clamp.
    2. Connect all the connectors to the turn signal switch with spiral cable.
  21. INSTALL STEERING COLUMN UPPER COVER
    1. Engage the claw to install the steering column upper cover.

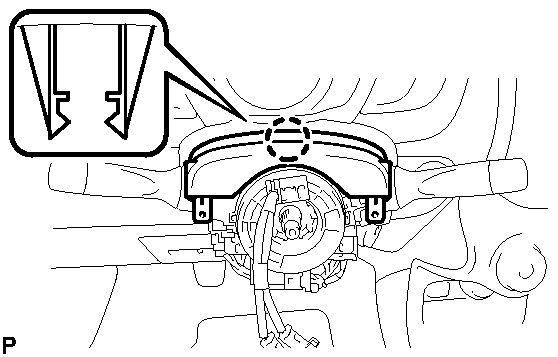

      Fig 7: Identifying Steering Column Upper Cover Claw
      GTY167121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL STEERING COLUMN LOWER COVER
    1. Engage the 2 claws to install the steering column lower cover.

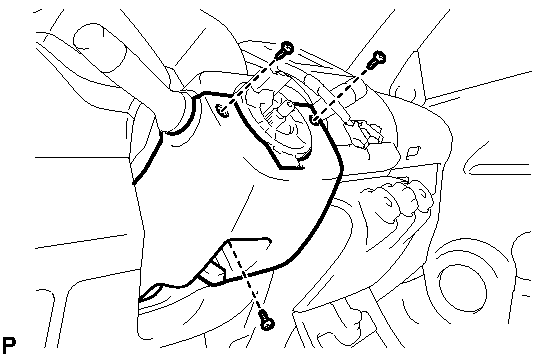

      Fig 8: Identifying Steering Column Lower Cover Screws
      GTY162044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 3 screws.
  23. INSTALL STEERING WHEEL ASSEMBLY
    1. Align the matchmarks and install the steering wheel assembly onto the steering column assembly.

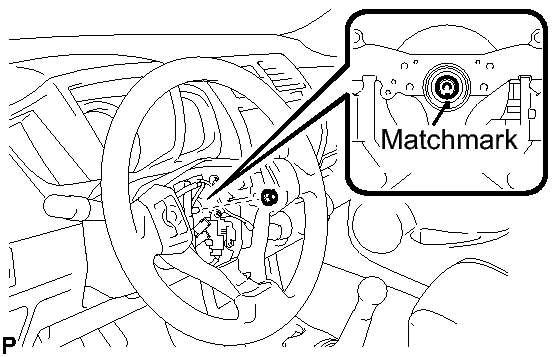

      Fig 9: Identifying Matchmarks
      GTY157923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the nut.

      Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

    3. Connect all the connectors to the spiral cable.
  24. INSTALL STEERING PAD  . Refer to INSTALLATION [08/2013 - ] - Step 1
  25. POSITION FRONT WHEELS FACING STRAIGHT AHEAD
  26. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  27. INSPECT SRS WARNING LIGHT TURNS OFF

    Refer to DIAGNOSIS SYSTEM [08/2013 - ]

  28. PERFORM CALIBRATION OF TORQUE SENSOR ZERO POINT

    Refer to CALIBRATION [08/2013 - ]
