Components [05/2014 - ]: Illustration

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (1 Of 4)
GTY471338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

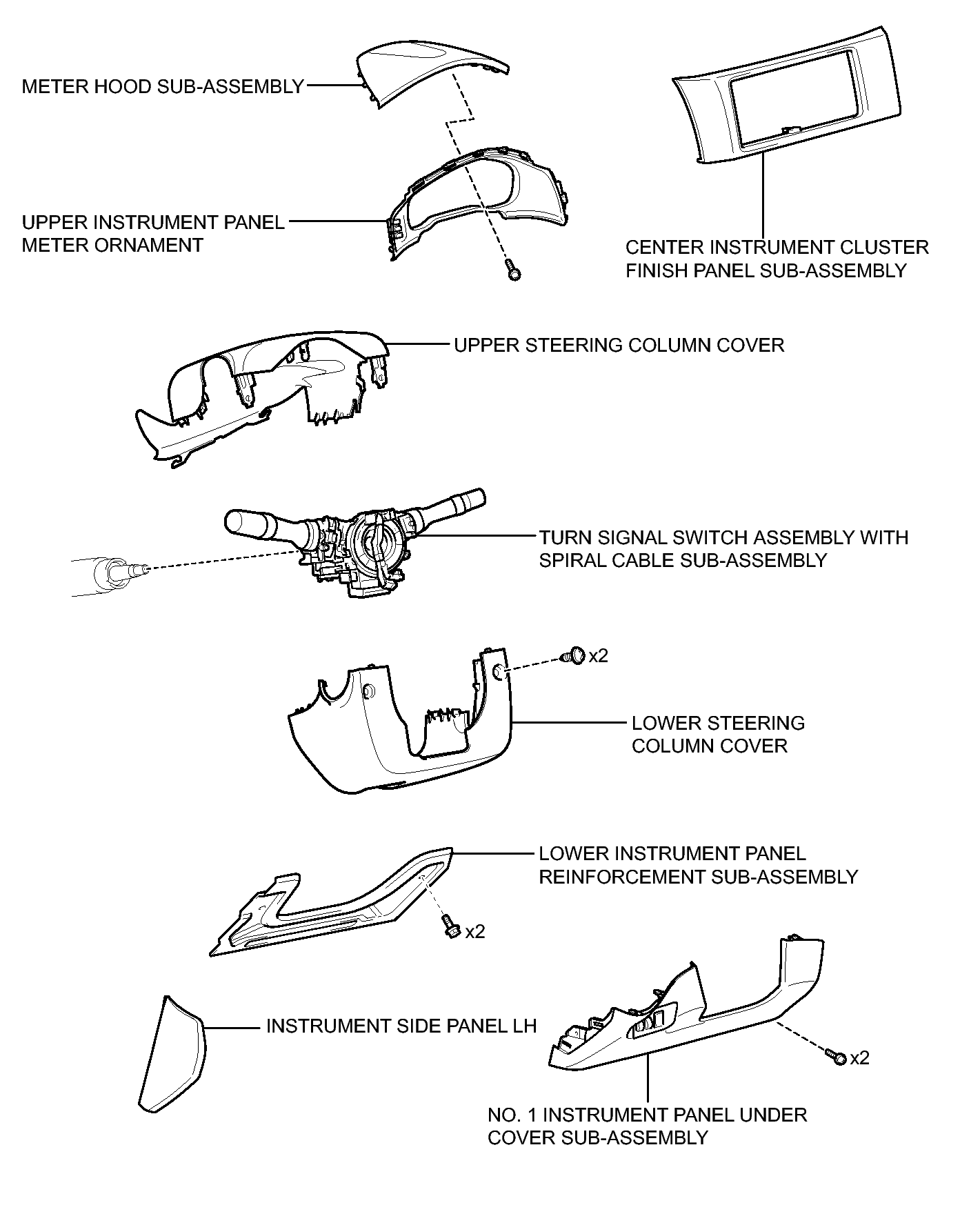

Fig 1: Identifying Steering Column Assembly Replacement Components (2 Of 4)
GTY471561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

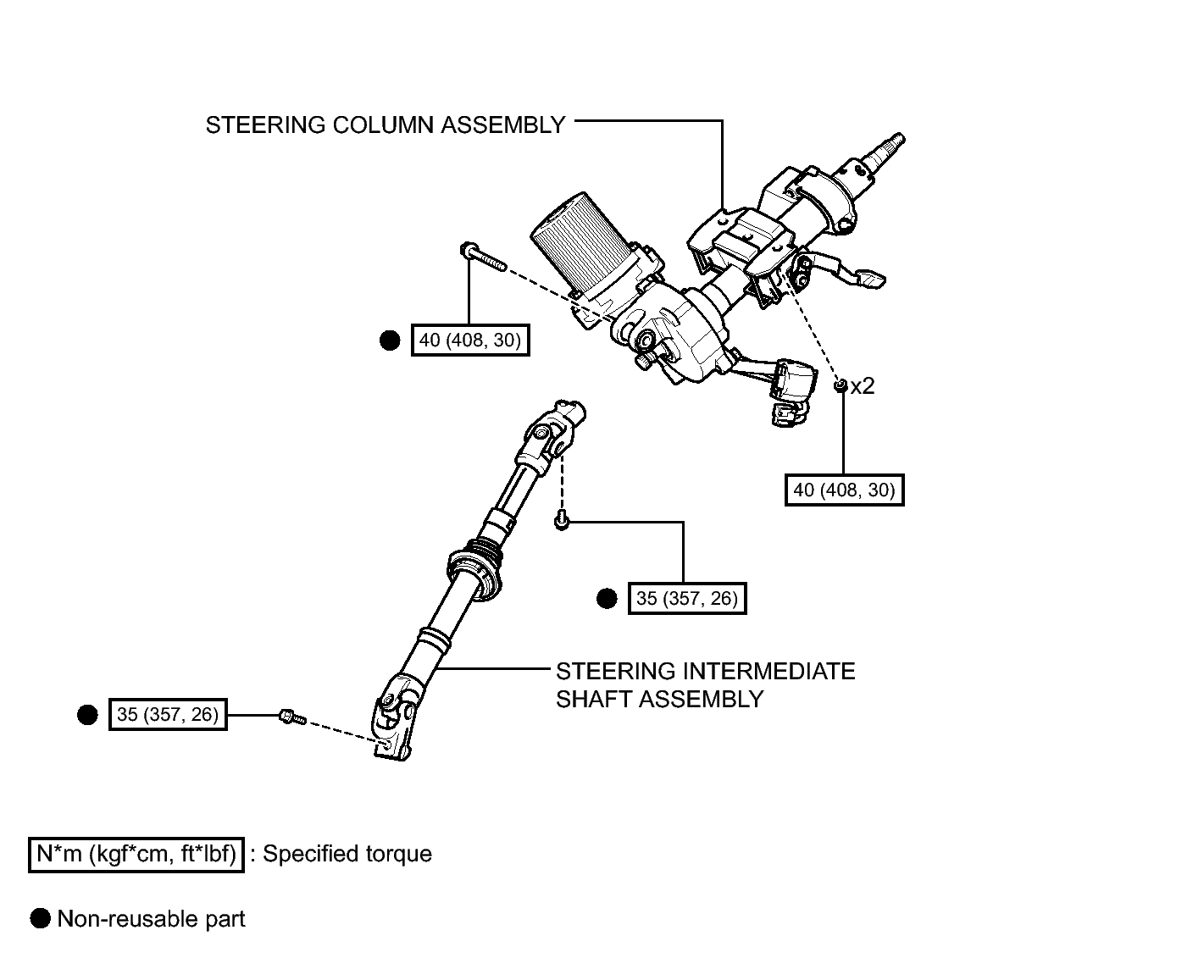

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications (3 Of 4)
GTY471345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

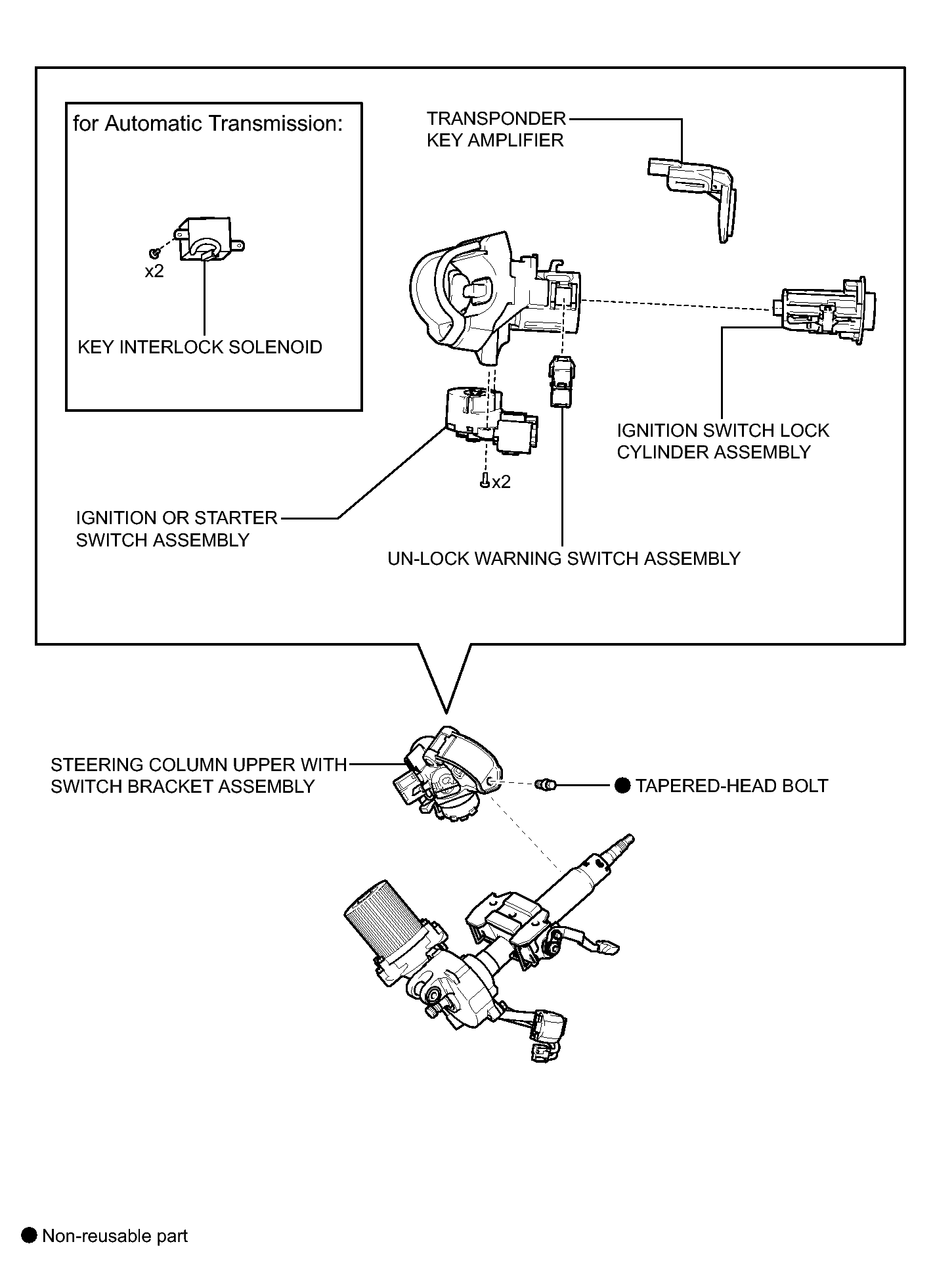

Fig 1: Identifying Steering Column Assembly Replacement Components (4 Of 4)
GTY471247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
