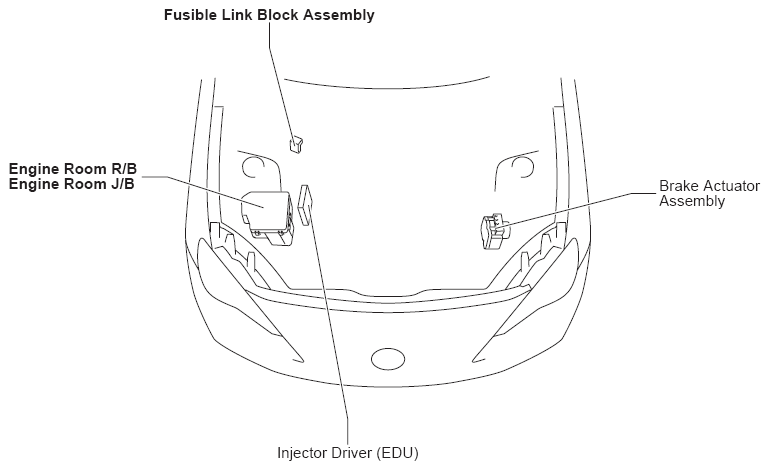

Fusible Link Block Assembly - Right Engine Compartment: Notes
For additional information, refer to Figure.
FUSIBLE LINK BLOCK FUSE IDENTIFICATION LEGEND
| Fuse | System | |
|---|---|---|
| 80A | MAIN | Charging |
| Headlight | ||
| Horn | ||
| Wireless Door Lock Control | ||
| 140A | ALT | Charging |
| Cooling Fan | ||
| Illumination and Taillight | ||
| Mirror Heater and Rear Window Defogger | ||
