Components Location [05/2014 - ]: Illustration

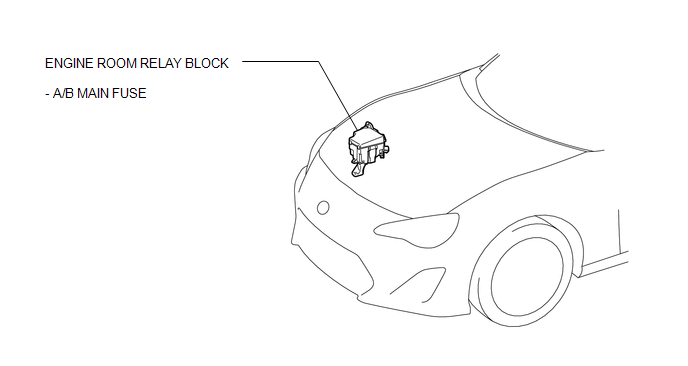

Fig 1: Occupant Classification System Replacement Components (1 Of 2)
GTY390511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

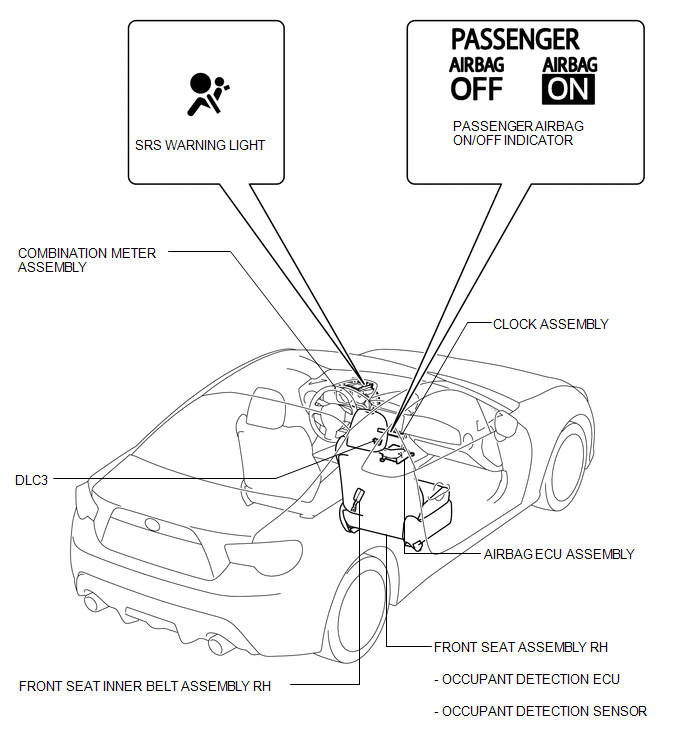

Fig 1: Occupant Classification System Replacement Components (2 Of 2)
GTY389961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
