Body & Frame
>>
Windows
>>
Power Window Control System (Diagnostic Codes & Symptom Tests)
>>
Power Window Control System
>>
Symptom Tests
>>
Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch [06/2015 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Driver Side Power Window Auto Up / Down Function does not Operate with Power Window Master Switch [06/2015 - ]: Wiring Diagram

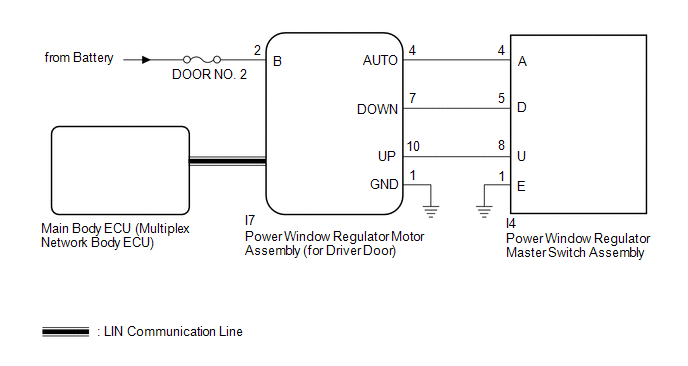

Fig 1: Power Window Master Switch Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
