Removal [06/2015 - ]: Procedure

  1. REMOVE NO. 2 CYLINDER HEAD COVER

    Refer to PROCEDURE - Step 15

  2. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    See step  3

  3. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 17

  4. REMOVE BATTERY

    Refer to PROCEDURE - Step 18

  5. DISCONNECT ENGINE WIRE
    1. Disengage the 9 clamps, and then disconnect the 22 connectors.
    2. Remove the 3 bolts and 2 nuts, and disconnect the engine wire.

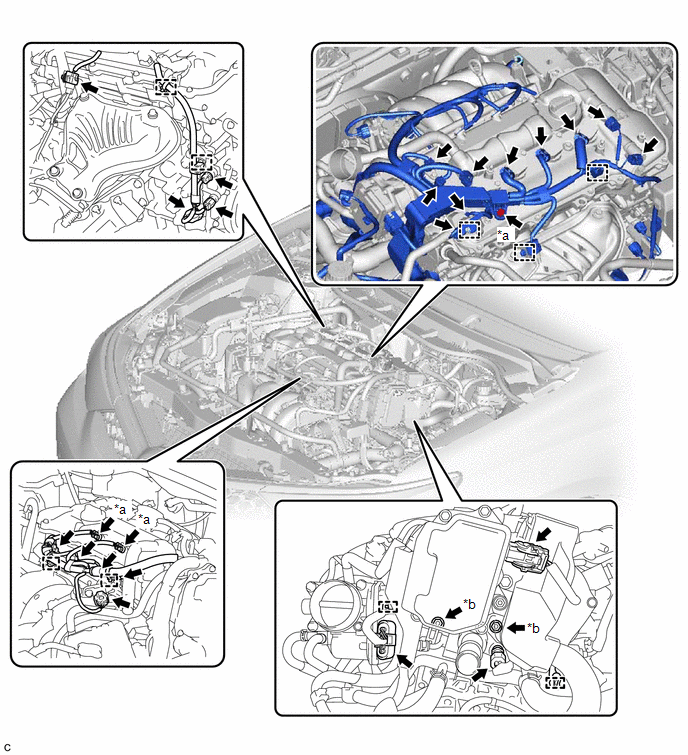

      GTY490816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bolt *b Nut
  6. REMOVE IGNITION COIL ASSEMBLY
    1. Remove the 4 bolts and 4 ignition coil assemblies from the cylinder head cover sub-assembly.

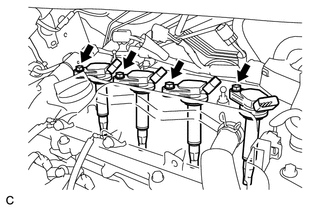

      GTY436347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE PURGE VALVE (PURGE VSV)
    1. Disconnect the No. 2 fuel vapor feed hose from the intake manifold.
    2. Slide the clip and disconnect the No. 1 fuel vapor feed hose from the vacuum switching valve assembly.

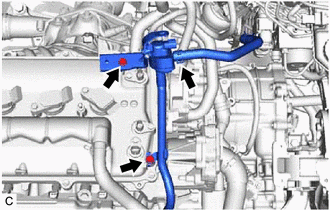

      GTY488079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 2 bolts and purge valve (purge VSV) from the cylinder head cover sub-assembly.
  8. REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 13

  9. REMOVE CYLINDER HEAD COVER GASKET

    Refer to PROCEDURE - Step 14

  10. REMOVE CONTINUOUSLY VARIABLE VALVE LIFT CONTROLLER ASSEMBLY
    1. Using a screwdriver, slide the valve lift control actuator connector clip from the valve lift control actuator connector.

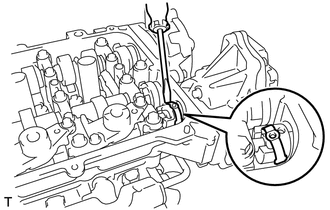

      GTY426427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Slide only the upper part of the valve lift control actuator connector clip, as the straight pin will fall out from the bottom if the valve lift control actuator connector clip is completely removed.

    2. Rotate the crankshaft clockwise until the intake camshaft position at the No. 1 cylinder and No. 3 cylinder are as shown in the illustration.
      GTY444262Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a No. 1 Cylinder
      *b No. 3 Cylinder

      HINT:

      If the intake camshaft position is not as shown in the illustration, rotate the crankshaft clockwise again so that the intake camshaft is aligned as shown in the illustration.

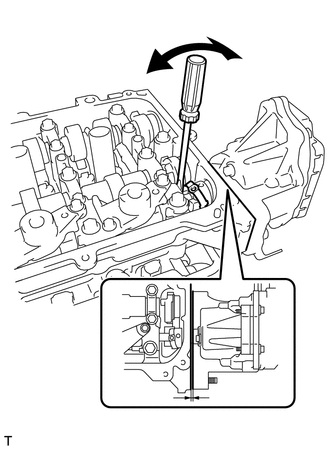

    3. Using a screwdriver, lightly pry the valve lift control actuator connector to make a space between the continuously variable valve lift controller assembly and camshaft housing sub-assembly.
      GTY450272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not forcibly pry the valve lift control actuator connector.
      • Do not damage the camshaft housing sub-assembly and camshaft bearing cap.

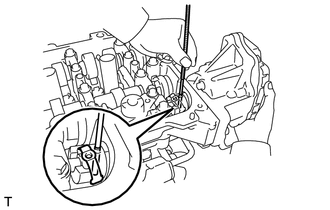

    4. Using a Magnet Hand, remove the straight pin from the valve lift control actuator connector.
      GTY423229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not drop the straight pin to the engine.

      HINT:

      The straight pin can be removed by utilizing the space between the continuously variable valve lift controller assembly and camshaft housing sub-assembly to move the continuously variable valve lift controller assembly so that there is no load on the straight pin.

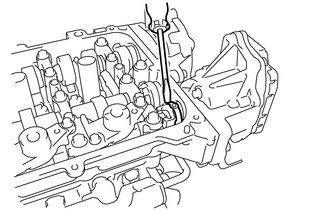

    5. Using a screwdriver, remove the valve lift control actuator connector clip from the valve lift control actuator connector.
      GTY447465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not drop the valve lift control actuator connector clip to the engine.

    6. Remove the 2 nuts and wire harness clamp bracket from the camshaft housing sub-assembly.

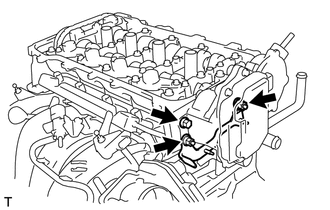

      GTY450969Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Remove the bolt from the continuously variable valve lift controller assembly.
    8. Remove the continuously variable valve lift controller assembly from the camshaft housing sub-assembly.

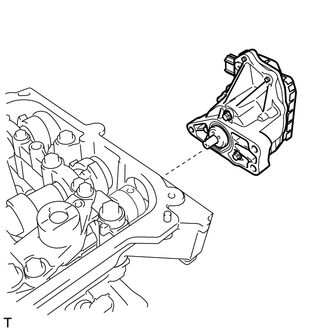

      GTY426418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the continuously variable valve lift controller assembly has been struck or dropped, replace it.

    9. Remove the O-ring from the continuously variable valve lift controller assembly.

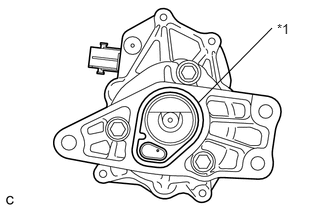

      GTY444623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 O-ring
    10. Remove the valve lift control actuator connector from the valve rocker shaft assembly.
      GTY447425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
