Pattern Select Switch Sport Mode Circuit [06/2015 - ]: Procedure

1. Connect the Techstream to the DLC3.
2. Turn the ignition switch to ON.
3. Turn the Techstream on.
4. Enter the following menus: Powertrain / Engine and ECT / Data List.
5. According to the display on the Techstream, read the Data List.

   Powertrain > Engine and ECT > Data List

   Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
   Pattern Switch (PWR/M)	SPORT mode switch status	OFF or ON	OFF: SPORT mode off ON: SPORT mode on	-

   Powertrain > Engine and ECT > Data List

   Tester Display
   Pattern Switch (PWR/M)

   Result

   Result	Proceed to
   Data List values are normal	A
   Data List values are not normal	B

Result:  2

B

See step  3

Result:  1

A

See step  2

1. Replace the ECM.

   Refer to COMPONENTS [06/2015 - ]

   Result

   Proceed to
   NEXT

Result:  1

NEXT

PERFORM INITIALIZATION. Refer to  INITIALIZATION [06/2015 - ]

1. Remove the SPORT switch (combination switch assembly).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

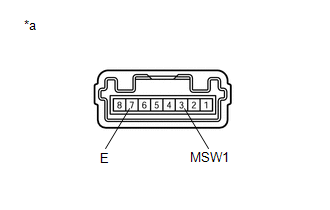

   *a	Component without harness connected (SPORT Switch (Combination Switch Assembly))

   Refer to REMOVAL [06/2015 - ]

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   3 (MSW1) - 7 (E)	Switch being pushed	Below 50 Ω
   3 (MSW1) - 7 (E)	Switch not being pushed	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:  2

NG

REPLACE COMBINATION SWITCH ASSEMBLY. Refer to  COMPONENTS [06/2015 - ]

Result:  1

OK

See step  4

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   F26-7 (E) - Body ground	Always	Below 1 Ω

2. Install the SPORT switch (combination switch assembly).

   Refer to INSTALLATION [06/2015 - ]

   Result

   Proceed to
   OK
   NG

Result:  2

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (COMBINATION SWITCH ASSEMBLY - BODY GROUND)

Result:  1

OK

See step  5

1. Disconnect the A31 ECM connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A31-57 (PWMS) - Body ground	Switch being pushed	Below 50 Ω
   A31-57 (PWMS) - Body ground	Switch not being pushed	10 kΩ or higher

3. Connect the A31 ECM connector.

   Result

   Proceed to
   OK
   NG

Result:  2

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (COMBINATION SWITCH ASSEMBLY - ECM)

Result:  1

OK

See step  6

1. Replace the ECM.

   Refer to COMPONENTS [06/2015 - ]

   Result

   Proceed to
   NEXT

Result:  1

NEXT

PERFORM INITIALIZATION. Refer to  INITIALIZATION [06/2015 - ]
