Occupant Classification System (Diagnostics And Symptom Tests)
>>
Occupant Classification System
>>
DTC B1782: Rear Occupant Classification Sensor LH Circuit Malfunction [06/2015 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC B1782: Rear Occupant Classification Sensor LH Circuit Malfunction [06/2015 - ]: Wiring Diagram

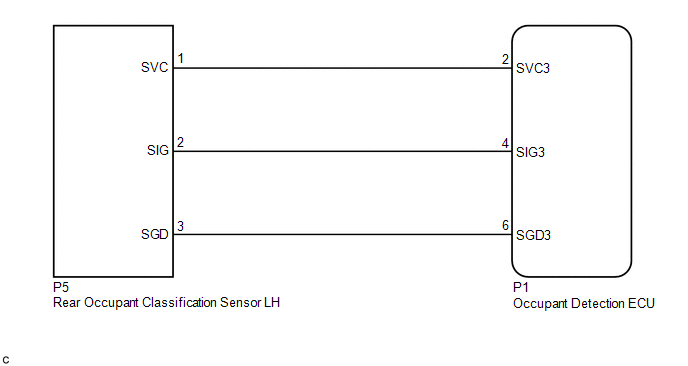

Fig 1: Rear Occupant Classification Sensor LH Circuit Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
