Installation [06/2015 - ]: Procedure

  1. INSPECT STEERING COLUMN ASSEMBLY

    Refer to INSPECTION [06/2015 - ]

  2. INSTALL STEERING COLUMN ASSEMBLY
    1. Install the steering column assembly with the bolt and 2 nuts.

      Bolt

      Torque: 36 N*m (367 kgf*cm, 27 ft.*lbf)

      Nut

      Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

      NOTE:

      Make sure that the wire harness is not interfering with the steering column assembly.

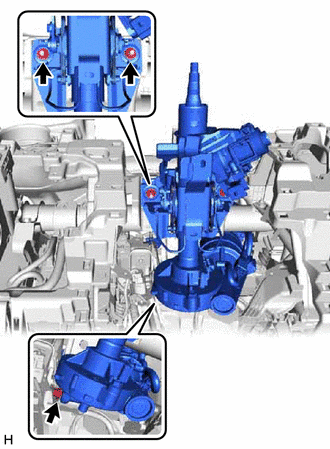

      GTY491927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect each connector and engage each wire harness clamp to the steering column assembly.
    3. Engage the 2 wire harness clamps.

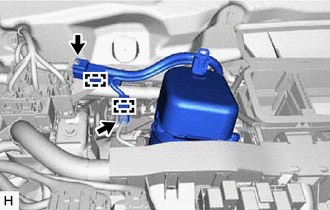

      GTY493660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the 2 connectors.
  3. INSTALL BRAKE PEDAL SUPPORT ASSEMBLY

    Refer to PROCEDURE - Step 1

  4. INSTALL PUSH ROD PIN

    Refer to PROCEDURE - Step 2

  5. INSTALL BRAKE PEDAL RETURN SPRING

    Refer to PROCEDURE - Step 3

  6. INSTALL STOP LIGHT SWITCH MOUNTING ADJUSTER

    Refer to PROCEDURE - Step 1

  7. INSTALL STOP LIGHT SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 2

  8. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 1

  9. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 11

  10. INSTALL NO. 1 SWITCH HOLE BASE

    Refer to PROCEDURE - Step 12

  11. INSTALL UPPER INSTRUMENT PANEL ASSEMBLY

    Refer to INSTALLATION [06/2015 - ]

  12. INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Align the matchmarks on the No. 2 steering intermediate shaft assembly and steering column assembly.
      GTY493064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    2. Install the No. 2 steering intermediate shaft assembly to the steering column assembly.
    3. Install the bolt.

      Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

  13. CONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

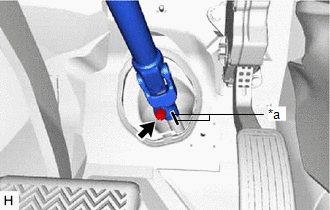

    1. GTY486749Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark

      Align the matchmarks on the No. 2 steering intermediate shaft assembly and steering intermediate shaft assembly.

    2. Connect the No. 2 steering intermediate shaft assembly to the steering intermediate shaft assembly.
    3. Install the bolt.

      Torque: 35 N*m (357 kgf*cm, 26 ft.*lbf)

  14. INSTALL COLUMN HOLE COVER SILENCER SHEET
    1. Install the column hole cover silencer sheet with the 2 clips.
      GTY491952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Return the floor carpet.
  15. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
    NOTE:
    • Do not replace the spiral cable with sensor sub-assembly with the battery connected and the ignition switch ON.
    • Do not rotate the spiral cable with sensor sub-assembly without the steering wheel with the battery connected and the ignition switch ON.
    • Ensure that the steering wheel is installed and aligned straight when inspecting the steering sensor.
    1. Engage the 3 claws to install the turn signal switch assembly with spiral cable sub-assembly to the steering column assembly.

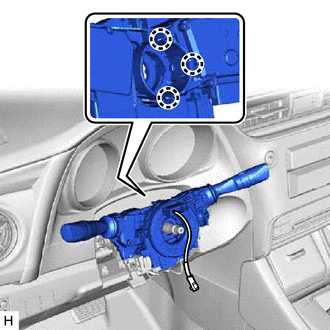

      GTY495052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect each connector to the turn signal switch assembly with spiral cable sub-assembly.
  16. INSTALL STEERING COLUMN COVER
    1. Engage the 2 claws to install the steering column cover (upper).

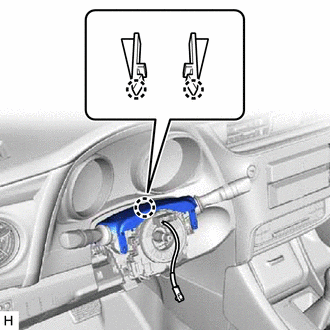

      GTY491946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 5 claws to install the steering column cover (lower).

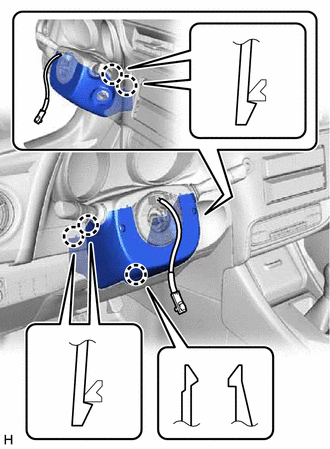

      GTY495053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 screws.

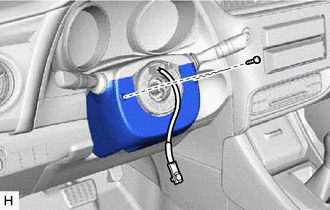

      GTY491949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  18. INSPECT AND ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 6

  19. INSTALL STEERING WHEEL ASSEMBLY

    See step  6

  20. INSTALL HORN BUTTON ASSEMBLY

    Refer to INSTALLATION [06/2015 - ]

  21. INSPECT AND ADJUST BRAKE PEDAL

    Refer to ADJUSTMENT [06/2015 - ]

  22. PERFORM CALIBRATION OF TORQUE SENSOR ZERO POINT

    Refer to CALIBRATION [06/2015 - ]

  23. PERFORM DIAGNOSTIC SYSTEM CHECK

    Refer to DTC CHECK / CLEAR [06/2015 - ]

  24. INSPECT SRS WARNING LIGHT

    Refer to DIAGNOSIS SYSTEM [06/2015 - ]
