AR07.04-P-0080MCI Remove/Install O2 Sensor

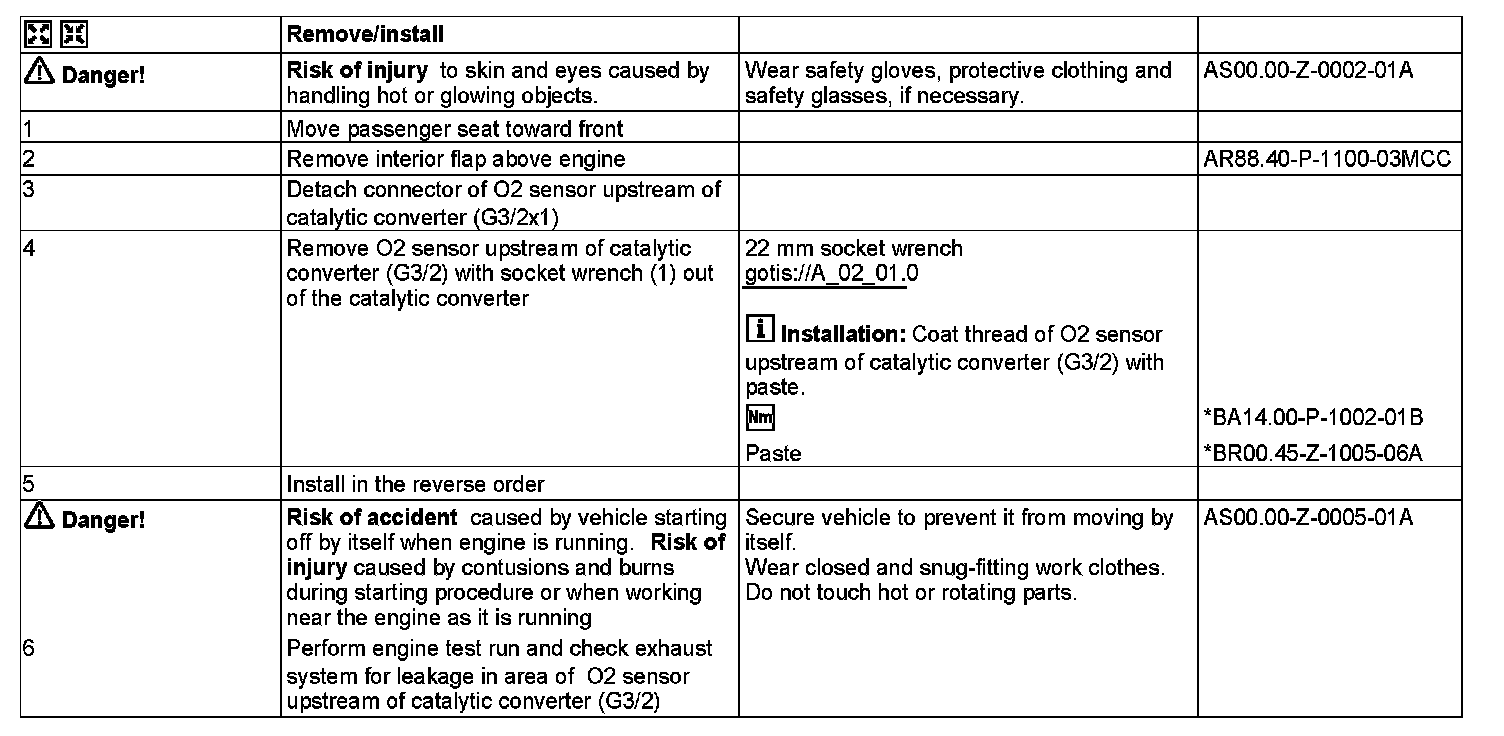

AR07.04-P-0080MCI Remove/install O2 Sensor
- ENGINES 132.910 in MODEL 451.3 /4 as of 31.8.10 except CODE (494) USA version

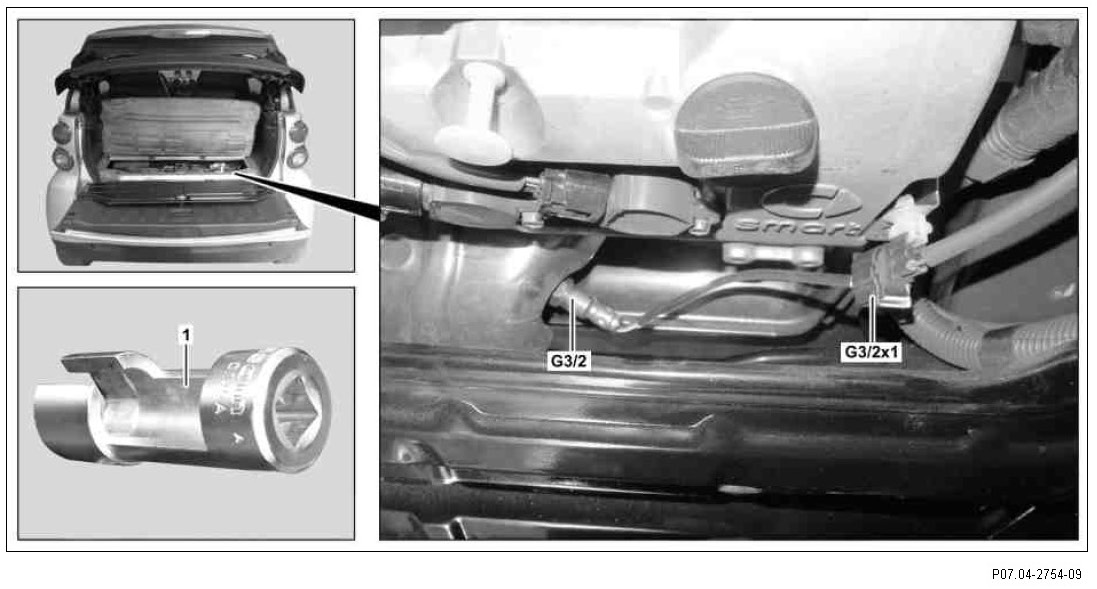

O2 sensor upstream of catalytic converter







1 Socket wrench
G3/2 O2 sensor upstream of catalytic converter
G3/2x1 Connector for O2 sensor upstream of catalytic converter
