AR83.20-P-1850MCF Remove/Install Heater/Ventilation Operating Unit




AR83.20-P-1850MCF Remove/Install Heater/Ventilation Operating Unit
- MODEL 451.3 /4 as of 31.8.10 except CODE (I01) Air conditioning Plus

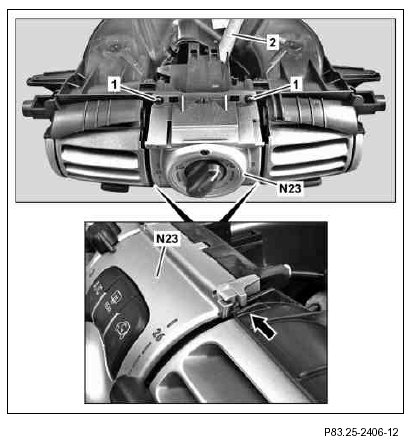

1 Screw
2 Flexible shaft
N23 Heater/AC operating unit
