Information Bus: Diagrams

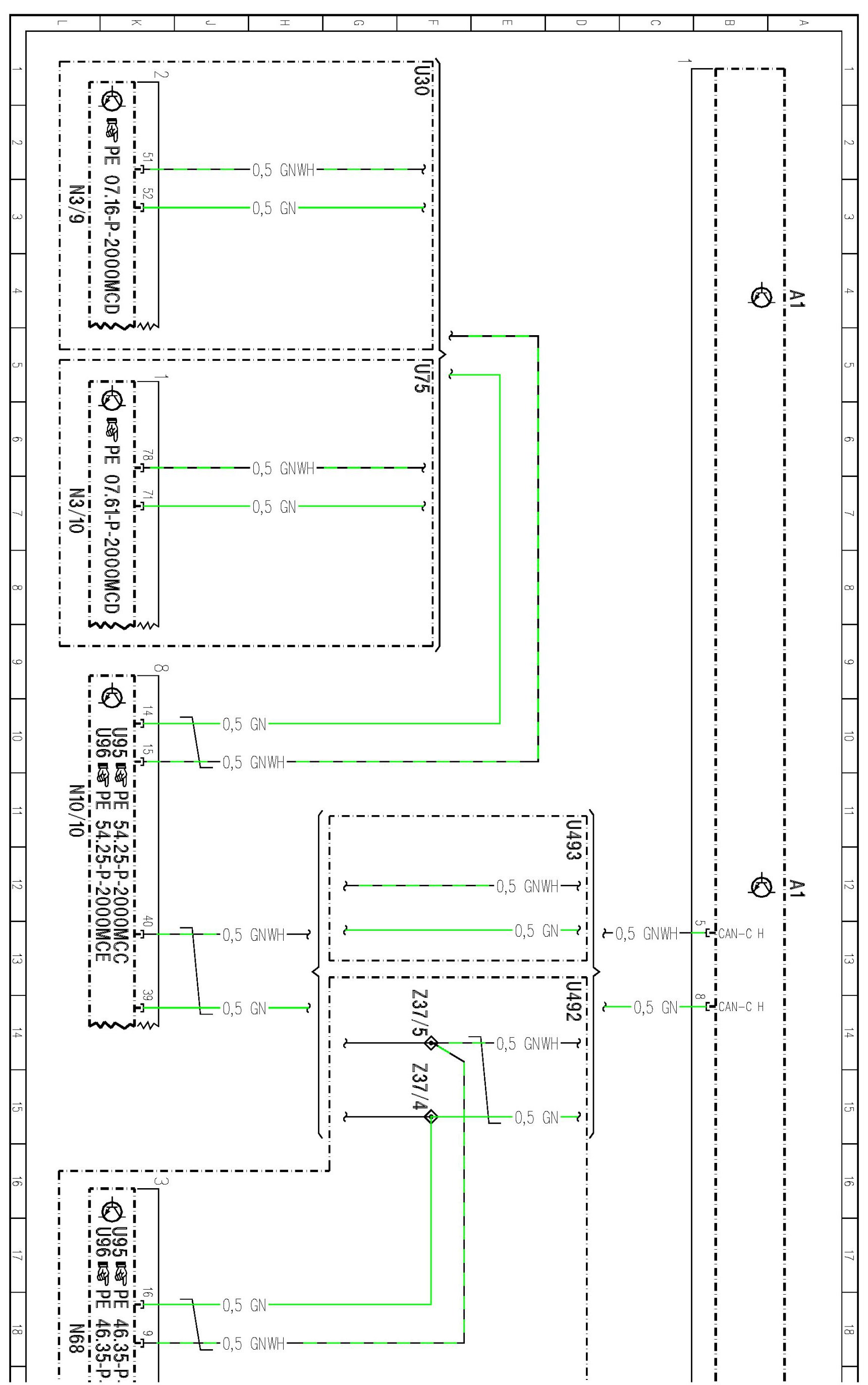

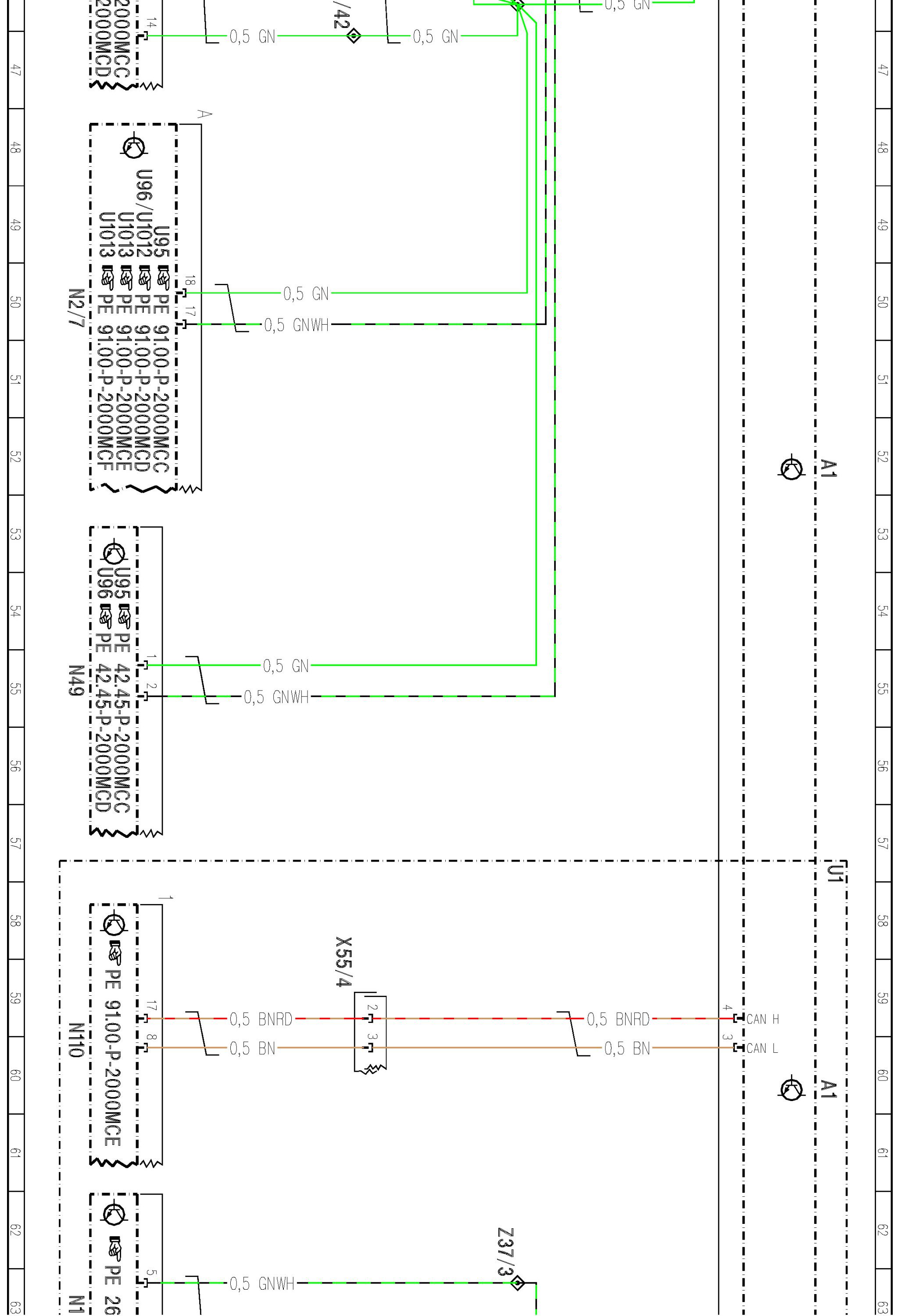

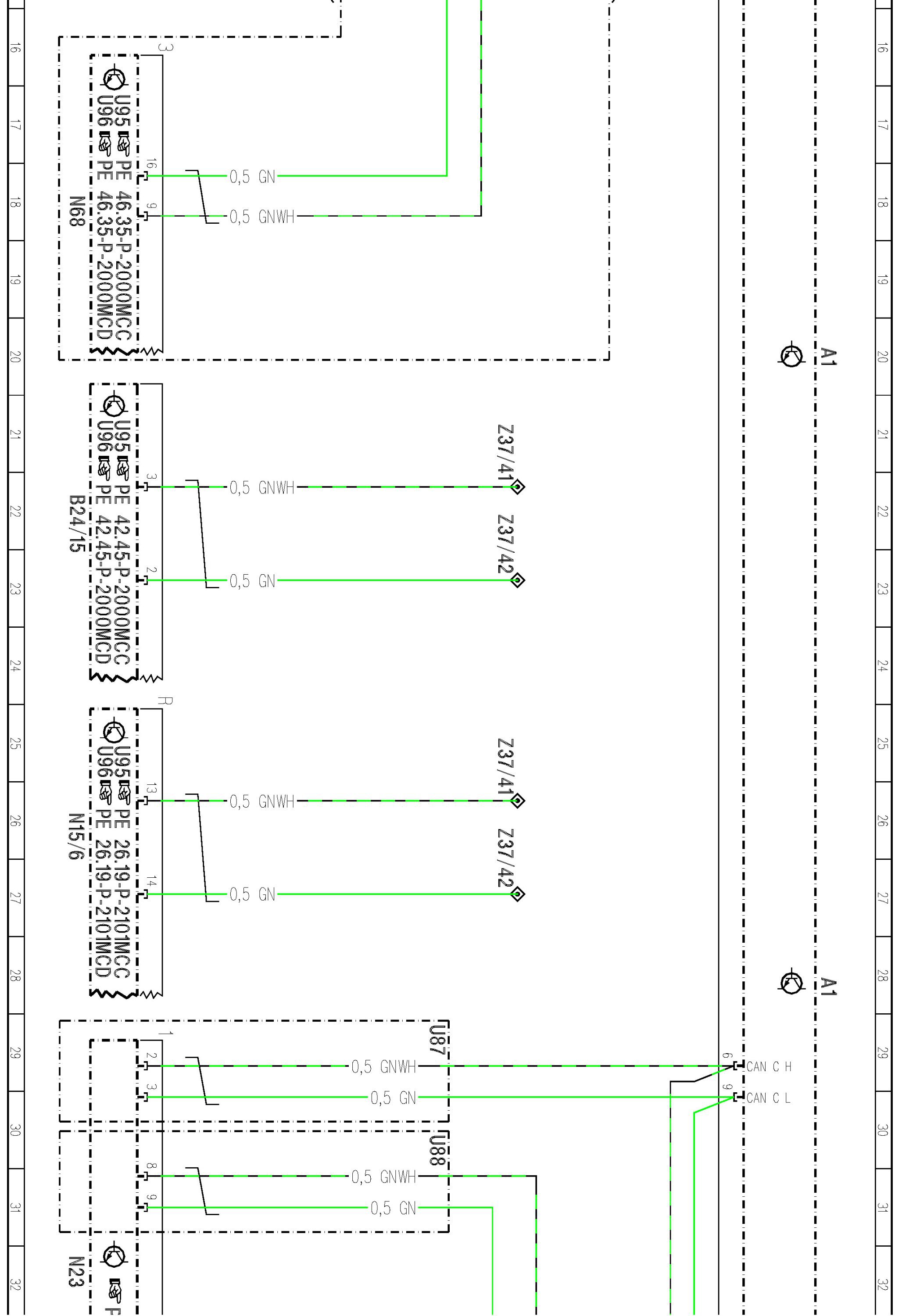

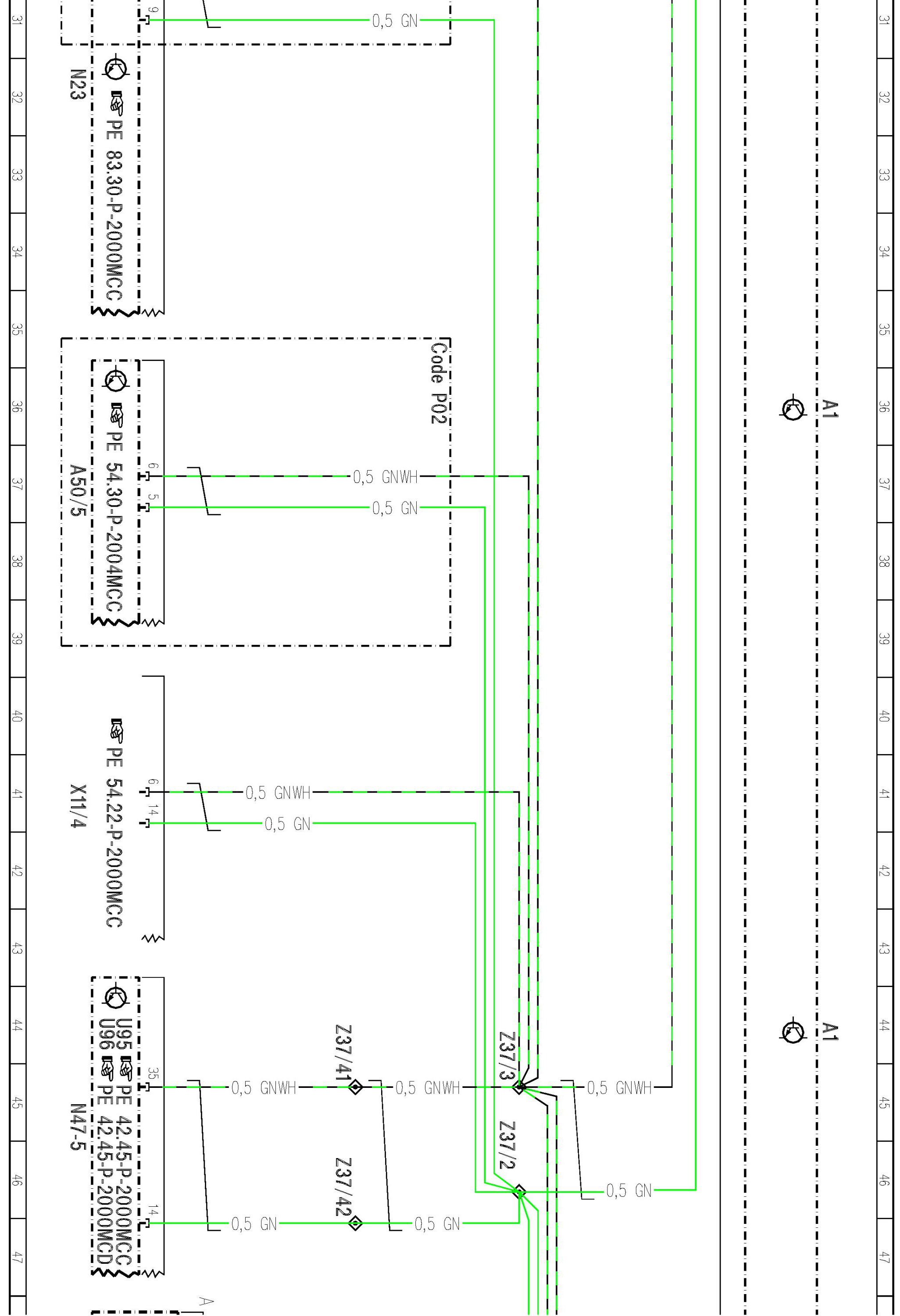

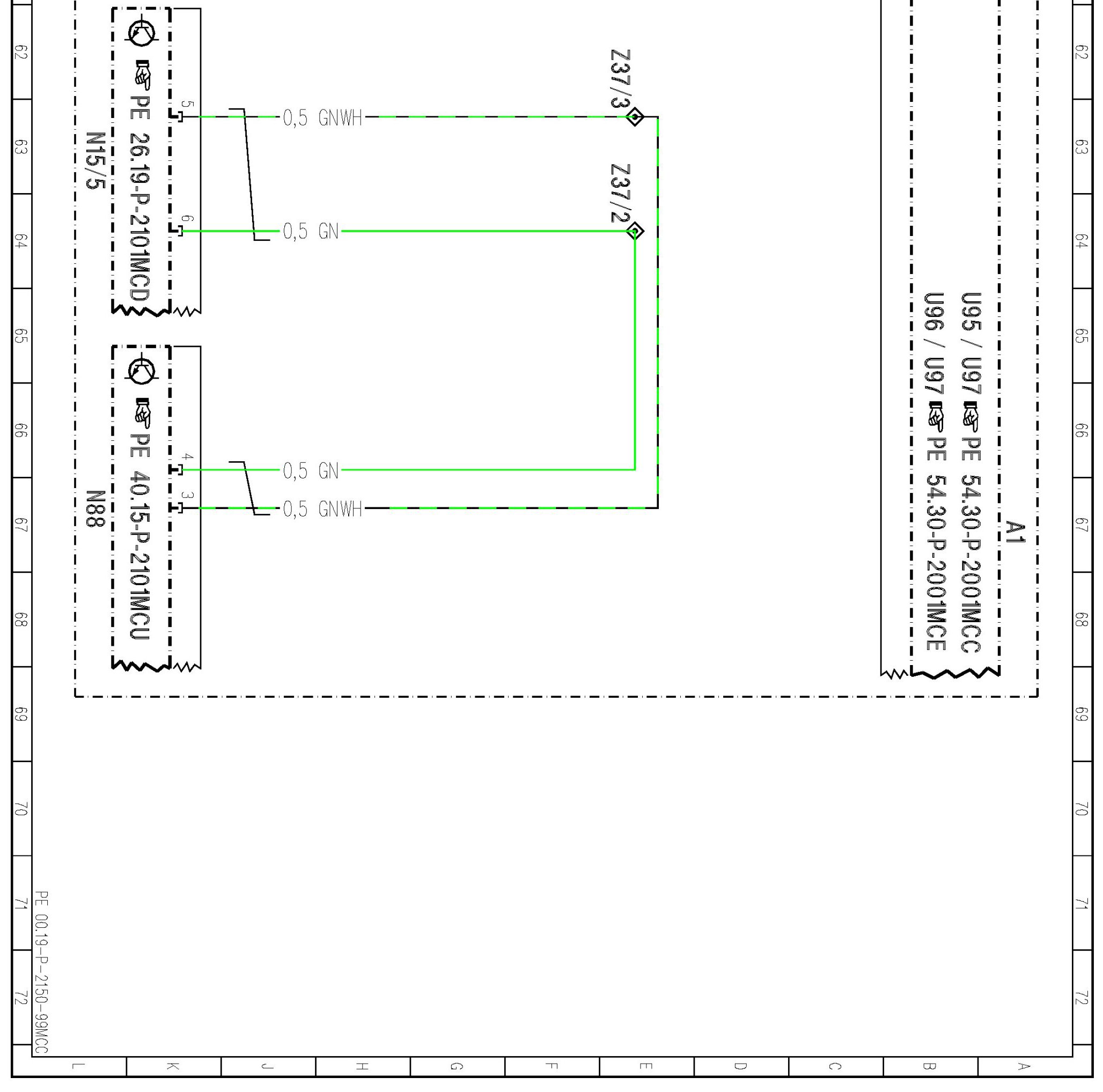

PE00.19-P-2150MCC CAN Bus
451 00 Multi-function Circuits
Model 451 except 451.334/ 380/ 391/ 480/ 491
