Seat Belt Control Module: Service and Repair

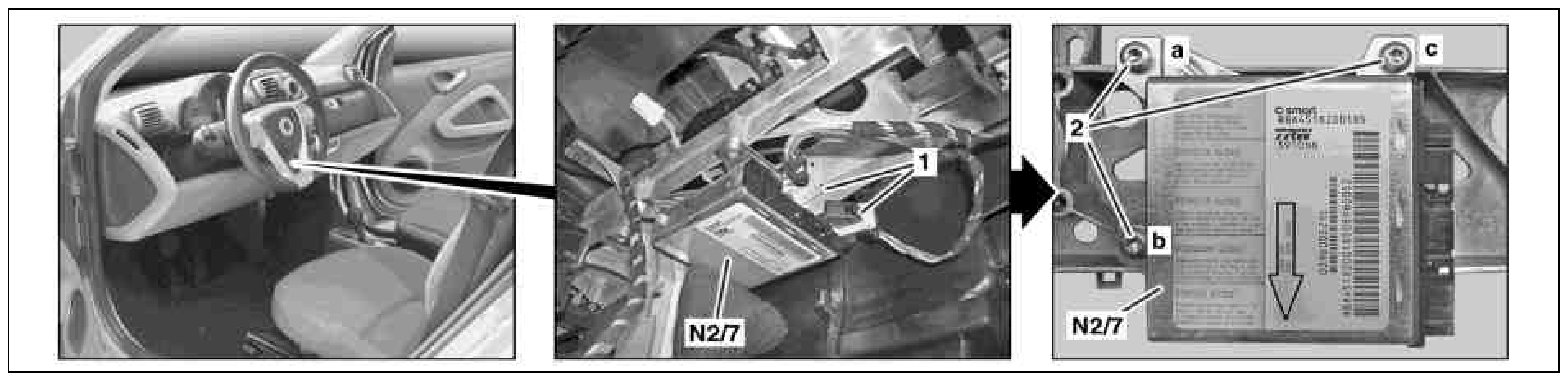

AR91.60-P-0623MCU Remove/Install Airbag, Side bag And Emergency Tensioning Retractor Control Unit







1 Electrical connectors
2 Bolts
N2/7 Restraint systems control unit
