Data Link Connector: Diagrams

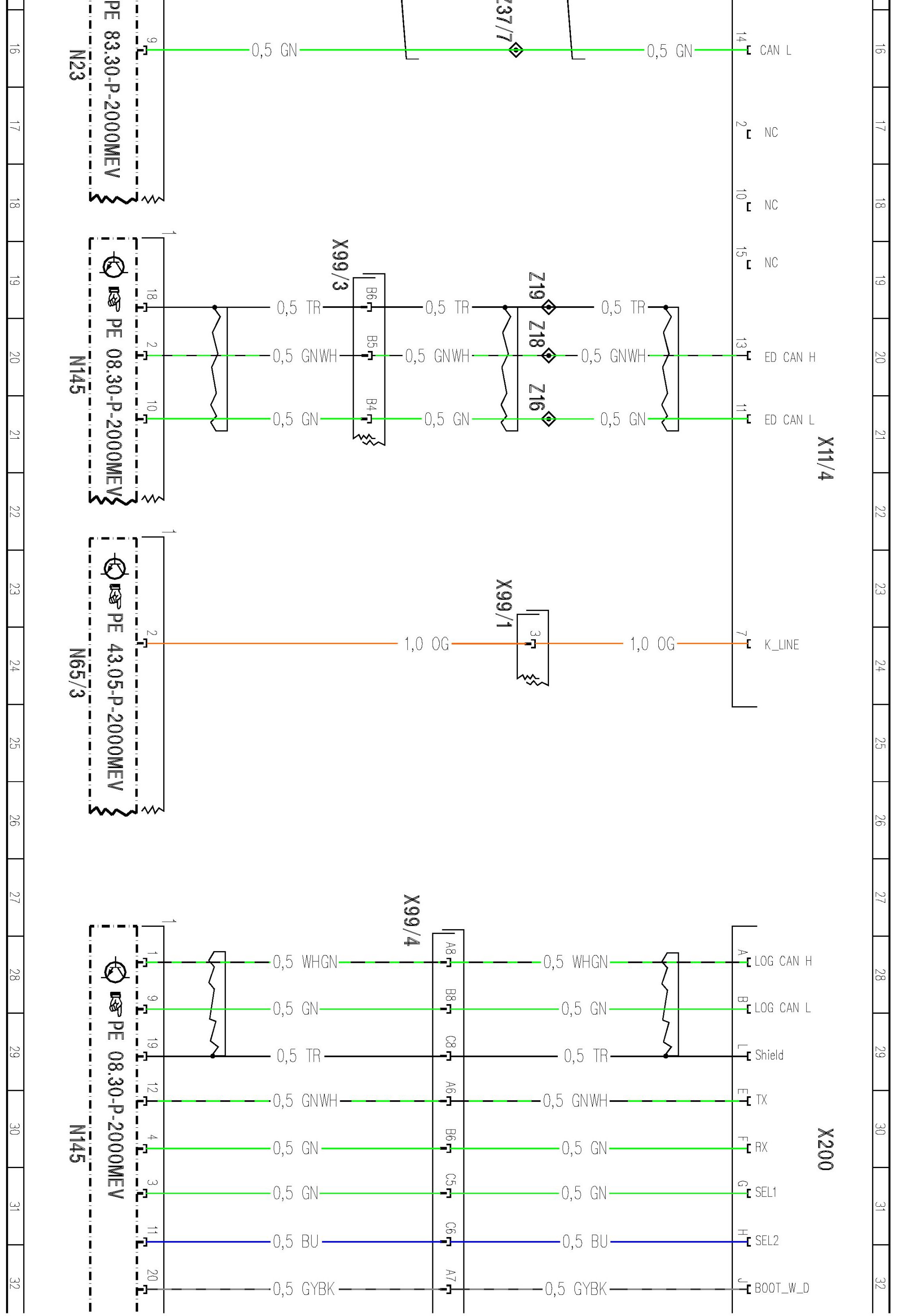

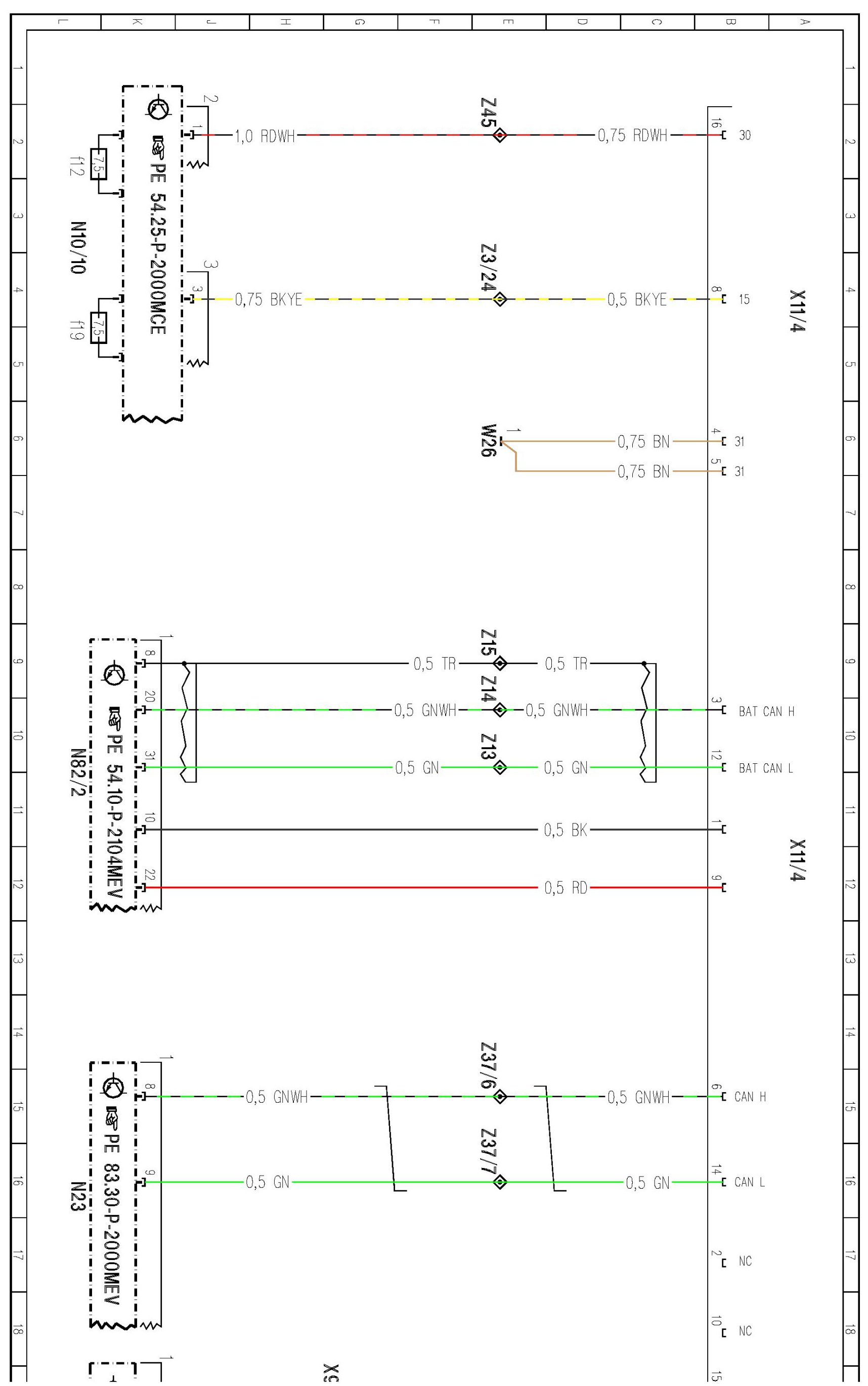

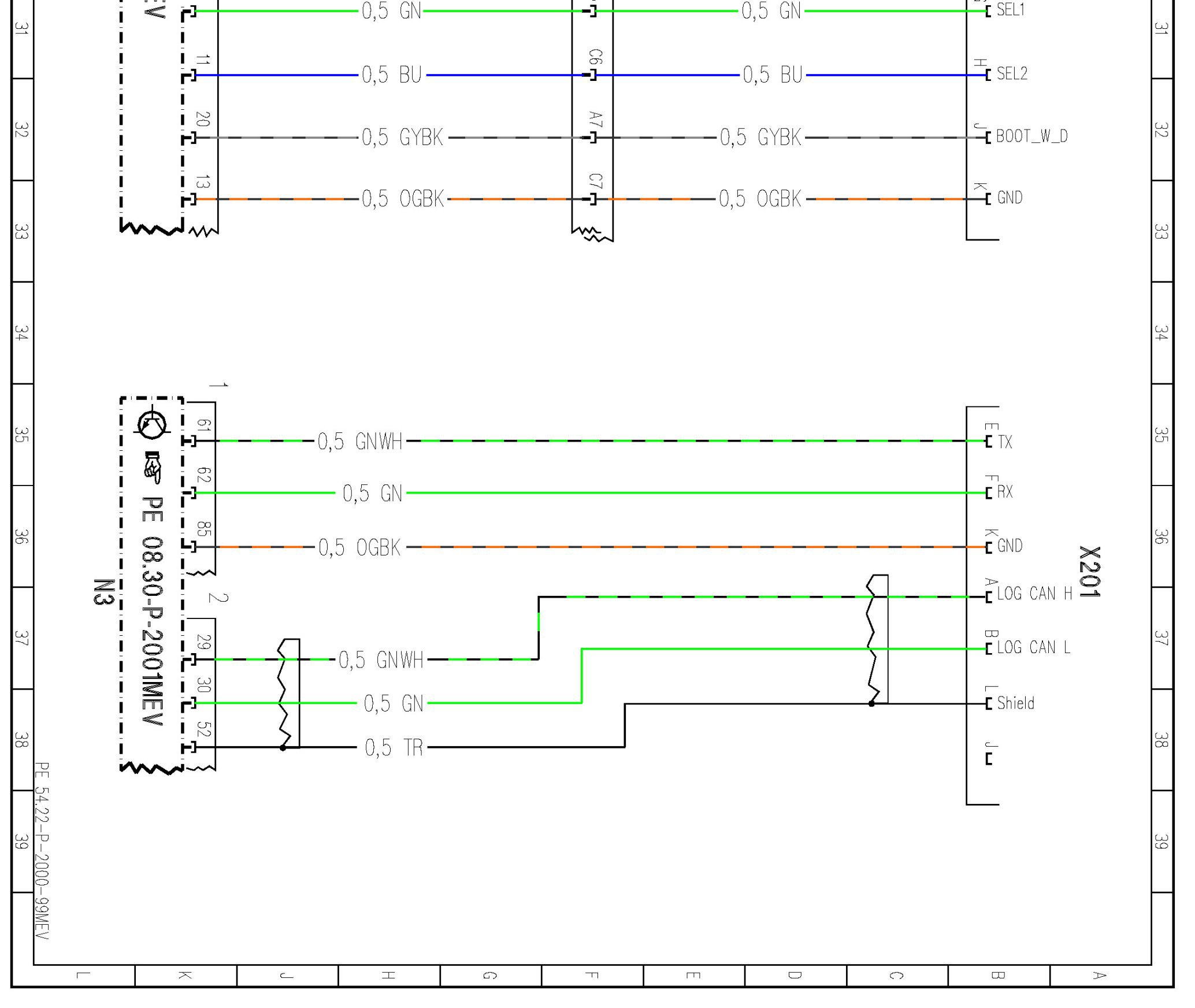

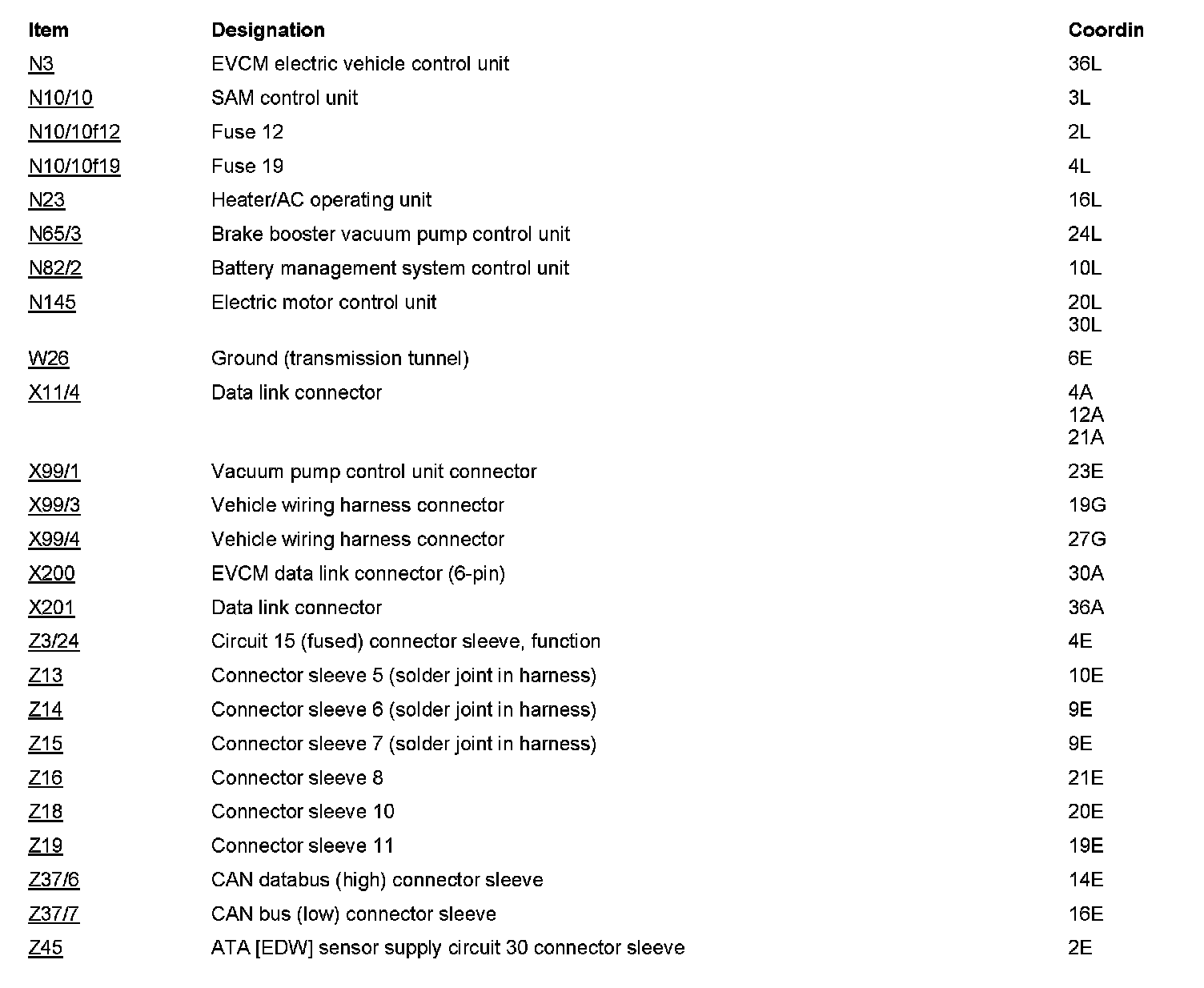

PE54.22-P-2000MEV Data Link Connector/Diagnostic Socket

451 54 Electrical Systems - Equipment and Instruments
MODEL 451.391/ 491
