Remove/install cable for parking shift lock - AR26.60-P-1000MEV

MODEL 451.391/491

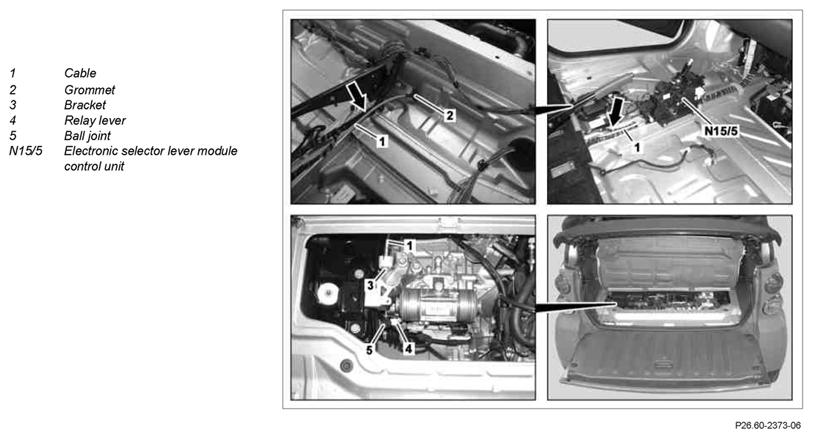

Fig 1: Identifying Parking Shift Lock Cable Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Risk of death  when touching components on vehicles with high-voltage on-board electrical system	Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not  carry out any work on high-voltage on-board electrical systems.	AS54.00-Z-0001-01A
	Note on high-voltage battery		AH54.10-P-0006-01MEV
	Note on the voltage on-board electrical system		AH54.00-P-0010-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove electronic selector lever module control unit (N15/5)		AR26.60-P-0630MCU
2	Remove cable ties on cable (1)	There are two cable ties in the marked areas (arrows).
3	Pry ball joint (5) with a open end wrench at the relay lever (4) of park pawl and remove wire (1) from bracket (3)	Use open end wrench with a width across flats of 12.
4	Press grommet (2) out of the body towards the engine compartment and remove cable (1) to the rear
5	Install in the reverse order
