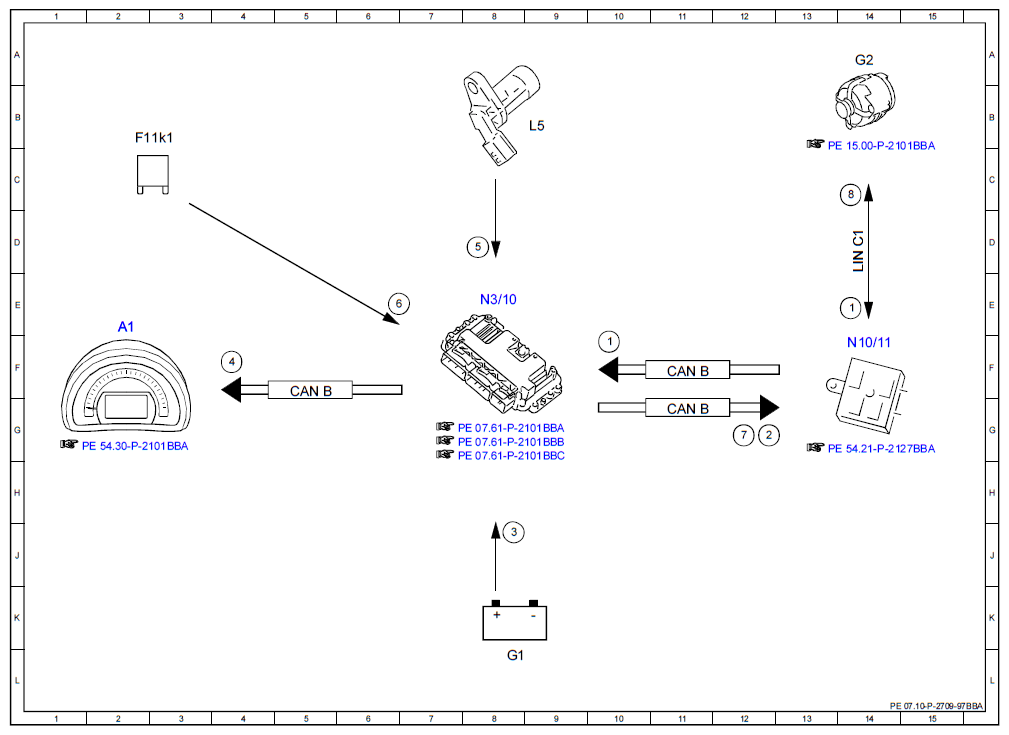

Electrical Function Schematic, Alternator Interface - PE07.10-P-2709-97BBA
ENGINE 281.910 in MODEL 453.0/3/4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Alternator, status | 14E |
| 1 | Alternator, status | 10F |
| 2 | Alternator, request | 13G |
| 3 | Circuit 30, status | 8J |
| 4 | Instrument cluster, message | 4F |
| 5 | Engine speed, signal | 8D |
| 6 | Circuit 87, status | 7E |
| 7 | Engine running, signal | 12G |
| 8 | Specified alternator voltage, signal | 14C |
| A1 | Instrument cluster | 2E |
| CAN B | Interior CAN | 5F |
| CAN B | Interior CAN | 11F |
| CAN B | Interior CAN | 11G |
| F11k1 | Engine function circuit 87 relay | 2B |
| G1 | On-board electrical system battery | 8L |
| G2 | Alternator | 14A |
| L5 | Crankshaft position sensor | 9B |
| LIN C1 | Drive train LIN | 14D |
| N10/11 | Driver SAM control unit | 14F |
| N3/10 | ME-SFI [ME] control unit | 8E |
