Remove/install transmission - AR26.10-P-0020MCU

TRANSMISSION 717.4 in MODEL 451.3/4 with ENGINE 132.910

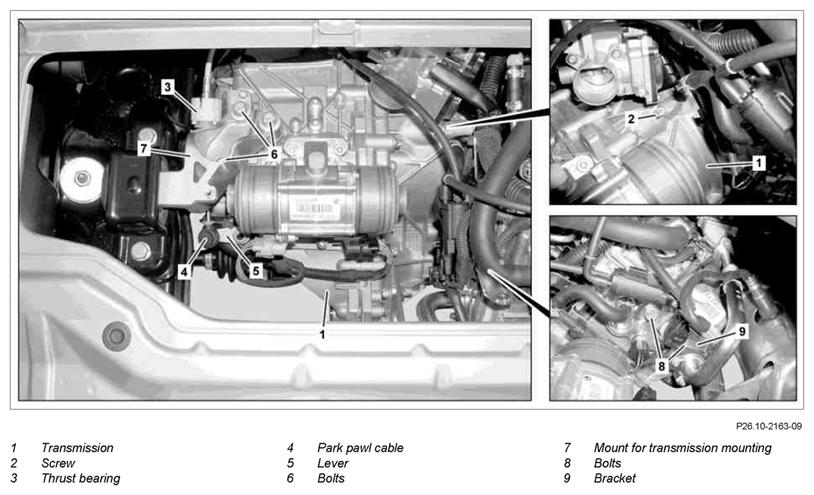

Fig 1: Identifying Transmission Remove/Install Components (1 Of 2)
G10978263Courtesy of MERCEDES-BENZ USA

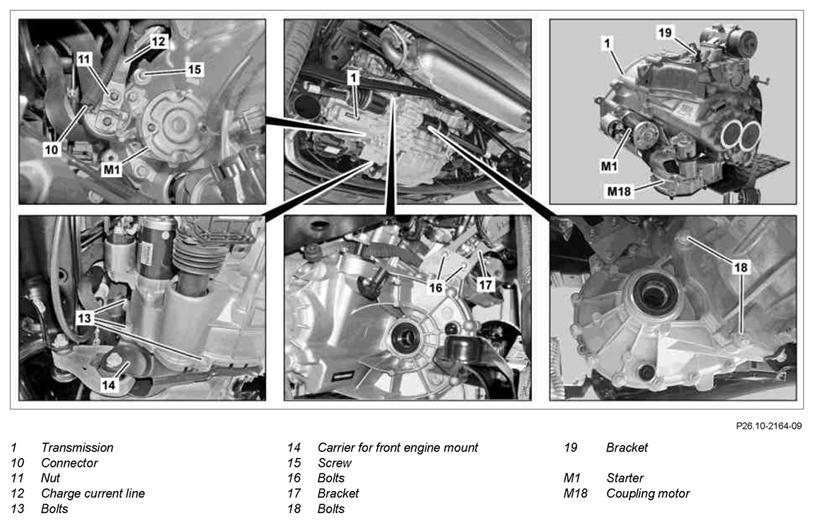

Fig 2: Identifying Transmission Remove/Install Components (2 Of 2)
G10978264Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Position selector lever on electronic selector lever module control unit in position "P"
2 Remove interior flap above engine   AR88.40-P-1100-03MCC
3 Disconnect ground line of battery   AR54.10-P-0003MCC
4 Remove air filter housing   AR09.10-P-1150MCU
5 Remove rear axle shafts   AR35.30-P-0620MCU
6 Remove fender liner from left rear fender   AR88.10-P-1400MCU
7 Lower vehicle with vehicle lift
8 Unscrew bolt (2) TORQUE SPECIFICATION *BA26.10-P-1001-01D
9 Unhook counter bearing (3) of wire pull of park pawl (4) on transmission (1) and unclip wire pull of park pawl (4) at lever (5)
10 Loosen bolts (6) of bushing of transmission mounting (7) on transmission (1) TORQUE SPECIFICATION *BA26.00-P-1002-01D
11 Unscrew bolts (8) of bracket (9) on cylinder head put down bracket (9) to one side
12 Fasten retaining plate to the upper threaded hole in the cylinder head with one bolt (8) SPECIAL TOOL Fig 5
13 Attach support brace to engine hoist, position engine hoist and suspend suitable chain in the retaining plate IMPORTANT Turn back the spindle at the engine hoist so that it is ensured that it is possible to lower the engine with the transmission (1) by approx. a further 4 cm.
SPECIAL TOOL
Fig 4
    SPECIAL TOOL Fig 5
    SPECIAL TOOL Fig 6
14 Raise vehicle with vehicle lift
15 Detach wiring harness from transmission (1)   AR26.19-P-0001-05MCU
16 Pull out the plug (10) on the starter (M1)
17 Unscrew nut (11) and remove charge current line (12) from starter (M1) TORQUE SPECIFICATION *BA15.30-P-1002-01E
18 Unscrew bolts (13) of carrier for front engine mount (14) from transmission (1) TORQUE SPECIFICATION *BA22.10-P-1012-01M
19 Unscrew bolt (15) TORQUE SPECIFICATION *BA26.10-P-1001-01D
20 Support transmission (1) with transmission jack and removal fixture and secure with tensioning strap SPECIAL TOOL
Transmission jack
Fig 3
21 Unscrew bolts (6) of bushing of transmission mounting (7) from transmission (1) INSTALLATION IMPORTANT : Screw in bolts (6) until they abut.
22 Unscrew bolts (16) on bracket (17) of exhaust system
23 Remove bolts (18) TORQUE SPECIFICATION *BA26.10-P-1001-01D
24 Loosen transmission (1) from engine and lower NOTES When moving the transmission (1) out and in ensure that no electrical lines and hoses are damaged.
IMPORTANT Helper required to guide the transmission (1).
INSTALLATION IMPORTANT : The centering sleeves must seat firmly in the cylinder crankcase, replace centering sleeves if necessary. Grease transmission input shaft lightly.
Olista Longtime 3 E P
*BR00.45-Z-1062-06A
25 Release tensioning strap and remove transmission (1) from transmission jack IMPORTANT Aid of 2 helpers required.
SPECIAL TOOL
Fig 3
26 Unscrew bracket (19) of air filter housing on transmission (1) When replacing the transmission (1).
27 Detach starter (M1) from transmission (1) When replacing the transmission (1).
TORQUE SPECIFICATION
*BA15.30-P-1001-01E
28 Detach clutch motor (M18) from transmission (1) When replacing the transmission (1).
INSTALLATION IMPORTANT : Only install clutch motor (M18) after installing the transmission (1).
AR25.20-P-0125MCU
29 Install in the reverse order
30 Perform commissioning without control unit replacement IMPORTANT Observe menu guidance in DAS (DAS). AD00.00-P-2000-04MCC
REFER TO SELF-DIAGNOSTIC SYSTEMS Connect STAR DIAGNOSIS and read out fault memory
STARTER

Number Designation Engine 132.9
BA15.30-P-1001-01E Bolt, starter to transmission Nm 42
BA15.30-P-1002-01E Cable on starter circuit 30 Nm 10
ENGINE MOUNTS, ENGINE SUPPORTS

Number Designation ENGINE 132.9
BA22.10-P-1012-01M Bolt, carrier for front engine mount to transmission Nm 23
COMPLETE MANUAL TRANSMISSION

Number Designation Transmission 717.48
BA26.00-P-1002-01D Bolt, transmission mount to transmission Nm 80
COMPLETE MANUAL TRANSMISSION

Number Designation Transmission 717.4 in model 451.3/4
BA26.10-P-1001-01D Bolt, transmission to engine Nm 45
Fig 3: Identifying Removal Assembly (450 589 02 62 00)
G10977991Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Support Braces (451 589 01 62 00)
G10978028Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Retaining Plates (451 589 02 63 00)
G10978024Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Engine Lifting Fixture (639 589 00 61 00)
G09974006Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1062-06A Lubricating grease, Olista Longtime, DB supply specification 6804.60 A 001 989 36 51 10
