Remove/install transmission - AR26.10-P-0020MEV
MODEL 451.391/491
| Risk of death when touching components on vehicles with high-voltage on-board electrical system | Do not touch components and open lines of the high-voltage on-board electrical system. Persons who wear electronic implants (e.g. cardiac pacemakers), must not carry out any work on high-voltage on-board electrical systems. | AS54.00-Z-0001-01A | |
| Note on the voltage on-board electrical system | AH54.00-P-0010-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove transmitter key and mains plug | ||
| 2 | Carry out disconnection of high-voltage system | AR54.10-P-1160MEV | |

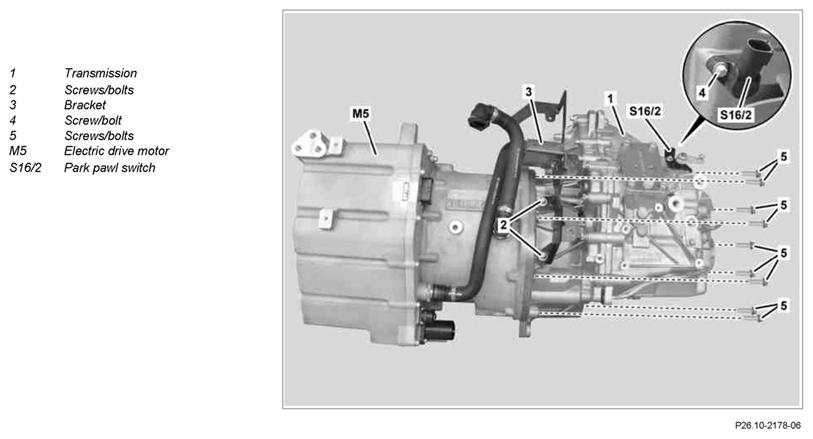

| 3 | Remove electric motor drive (M5) with transmission (1) | AR08.10-P-0010MEV | |
| 4 | Remove screws/bolts (2) and bracket (3) | When replacing the transmission (1). | |
| 5 | Remove screw/bolt (4) and remove park pawl switch (S16/2) | When replacing the transmission (1). | |
| 6 | Unscrew screws/bolts (5) and remove transmission (1) from electric drive motor (M5) | When replacing the transmission (1). |
*BA26.00-P-1002-01E |
| 7 | Install in the reverse order |
MANUAL TRANSMISSION COMPLETE
| Number | Designation | ENGINE 780.009 | |
|---|---|---|---|
| BA26.00-P-1002-01E | Bolt, transmission to engine | Nm | 23 |
