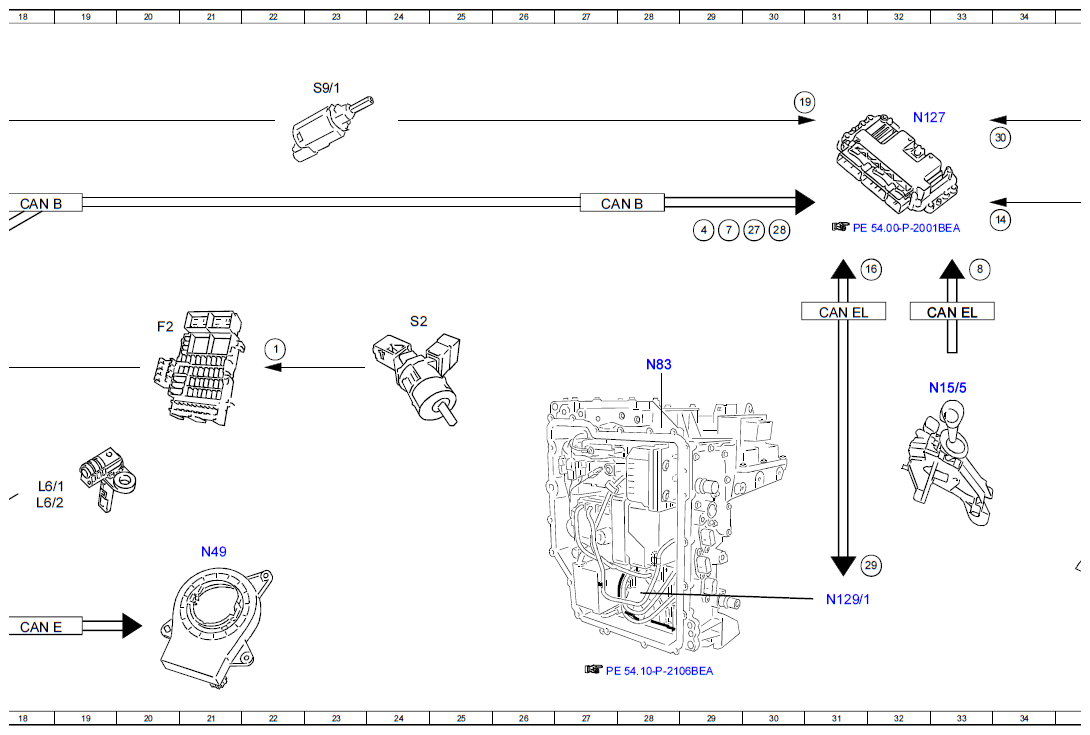

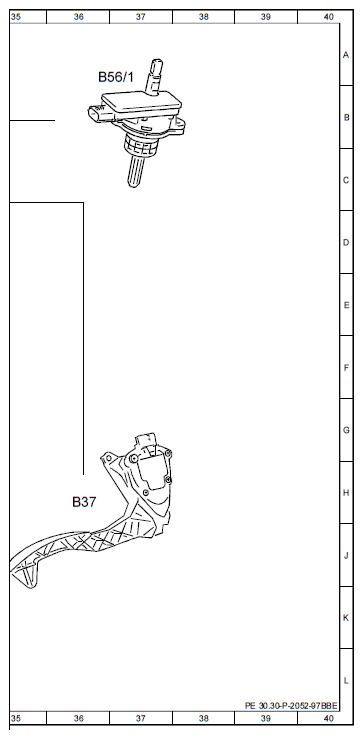

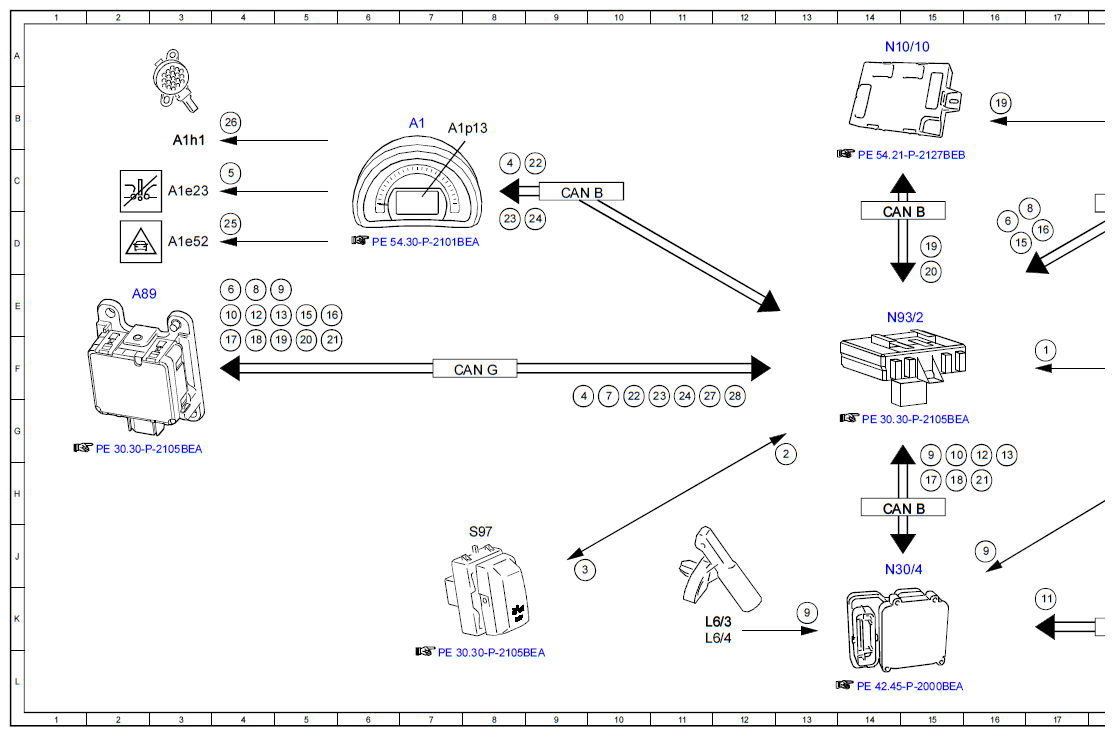

Electrical Function Schematic For Distance Warning Function - PE30.30-P-2052-97BBE
MODEL 453.091/391/491 with CODE 252 (Distance warning function)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, signal | 17F |
| 1 | Circuit 15, signal | 22F |
| 10 | Vehicle speed, signal | 4E |
| 10 | Vehicle speed, signal | 15G |
| 11 | Steering wheel angle sensor, signal | 17K |
| 12 | Steering wheel angle, signal | 4E |
| 12 | Steering wheel angle, signal | 16G |
| 13 | Steering wheel velocity, signal | 5E |
| 13 | Steering wheel velocity, signal | 16G |
| 14 | Accelerator pedal sensor, signal | 34D |
| 15 | Accelerator pedal, status | 5E |
| 15 | Accelerator pedal, status | 16D |
| 16 | Engine torque, signal | 17D |
| 16 | Engine torque, signal | 6E |
| 16 | Engine torque, signal | 32D |
| 17 | Speed, turn rate and lateral acceleration, signal | 4F |
| 17 | Speed, turn rate and lateral acceleration, signal | 8C |
| 18 | Yaw rate, signal | 4F |
| 18 | Yaw rate, signal | 15H |
| 19 | Brake pedal, status | 5F |
| 19 | Brake pedal, status | 15D |
| 19 | Brake pedal, status | 31B |
| 19 | Brake pedal, status | 16B |
| 2 | Distance warning button, status | 13G |
| 20 | Turn signal, status | 5F |
| 20 | Turn signal, status | 15D |
| 21 | Service brake, status | 5F |
| 21 | Service brake, status | 16H |
| 22 | Instrument cluster message, request | 9C |
| 22 | Instrument cluster message, request | 10F |
| 23 | Static warning, request | 11F |
| 23 | Static warning, request | 8D |
| 24 | Collision-critical warning, request | 9D |
| 24 | Collision-critical warning, request | 11F |
| 25 | Distance warning function warning lamp, actuation | 4D |
| 26 | Warning buzzer, actuation | 4B |
| 27 | Static or dynamic object, status | 12F |
| 27 | Static or dynamic object, status | 30D |
| 28 | Relative speed to opposing object, signal | 12F |
| 28 | Relative speed to opposing object, signal | 30D |
| 29 | Torque adjustment, signal | 32J |
| 3 | Distance warning function button status indicator, actuation | 9J |
| 30 | Gear range "D" engaged, signal | 34B |
| 4 | Distance warning system, status | 9F |
| 4 | Distance warning system, status | 29D |
| 4 | Distance warning system, status | 8C |
| 5 | Distance warning function indicator lamp, actuation | 4C |
| 6 | Engine speed, signal | 4E |
| 6 | Engine speed, signal | 16D |
| 7 | Object information, data package | 10F |
| 7 | Object information, data package | 29D |
| 8 | Gear range, status | 17C |
| 8 | Gear range, status | 4E |
| 8 | Gear range, status | 33D |
| 9 | Wheel speed, signal | 5E |
| 9 | Wheel speed, signal | 15G |
| 9 | Wheel speed, signal | 16J |
| 9 | Wheel speed, signal | 13K |
| A1 | Instrument cluster | 7B |
| A1e23 | Distance warning function indicator lamp | 3C |
| A1e52 | Distance warning function warning lamp | 3D |
| A1h1 | Warning buzzer | 3B |
| A1p13 | Multifunction display | 7B |
| A89 | Controller unit for distance warning function with radar sensor | 2E |
| B37 | Accelerator pedal sensor | 36H |
| B56/1 | Transmission mode recognition sensor | 36A |
| CAN B | Interior CAN | 14H |
| CAN B | Interior CAN | 14D |
| CAN B | Interior CAN | 9C |
| CAN B | Interior CAN | 18C |
| CAN B | Interior CAN | 27C |
| CAN E | Chassis CAN | 18K |
| CAN EL | Electric drive system CAN | 33E |
| CAN EL | Electric drive system CAN | 31E |
| CAN G | Front end CAN | 8F |
| F2 | Vehicle interior fuse and relay module | 20E |
| L6/1 | Left front axle rpm sensor | 18H |
| L6/2 | Right front axle rpm sensor | 18H |
| L6/3 | Left rear axle rpm sensor | 11K |
| L6/4 | Right rear axle rpm sensor | 11K |
| N10/10 | Center SAM control unit | 14A |
| N127 | Electric drive control unit | 32B |
| N129/1 | Power electronics control unit | 31K |
| N15/5 | Electronic selector lever module control unit | 32F |
| N30/4 | Electronic Stability Program control unit | 14J |
| N49 | Steering wheel angle sensor | 21J |
| N83 | High-voltage control unit box | 28F |
| N93/2 | Distance warning function gateway | 14E |
| S2 | Ignition lock | 24E |
| S9/1 | Stop lamp switch | 23B |
| S97 | Distance warning function button | 8J |
