Overview Of System Components For Supplemental Restraint System - GF91.60-P-9996KJ
MODEL 453.0/3/4
except CODE 494 (US version)

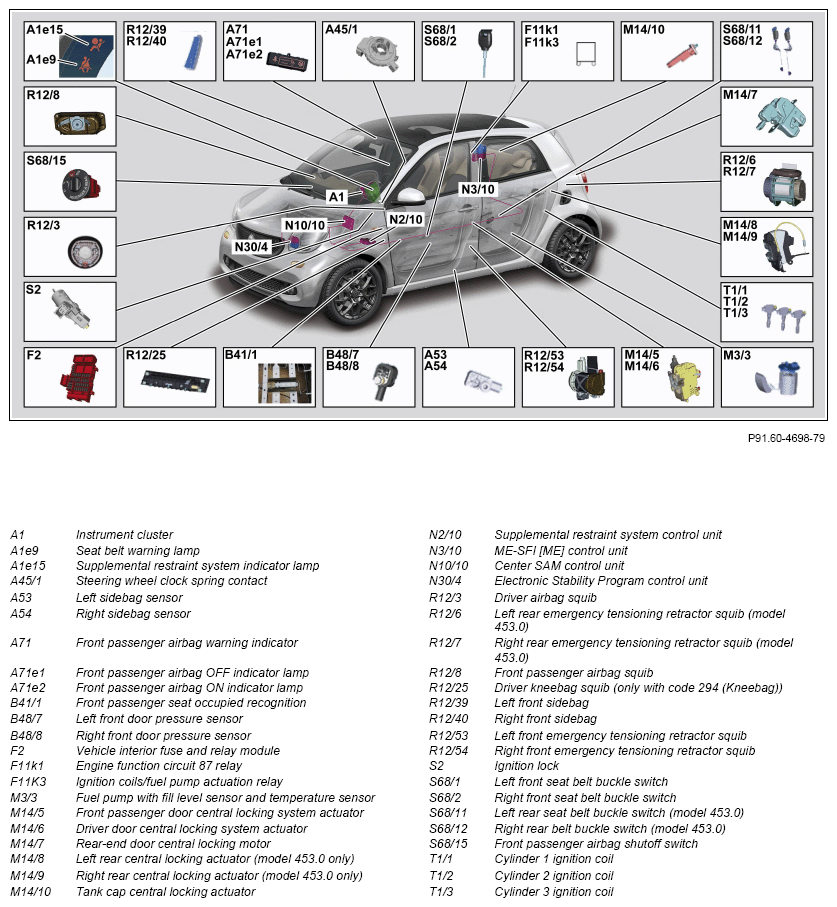

Shown on model 453.0 with engine 281 (valid for all except model 453.091/391/491)

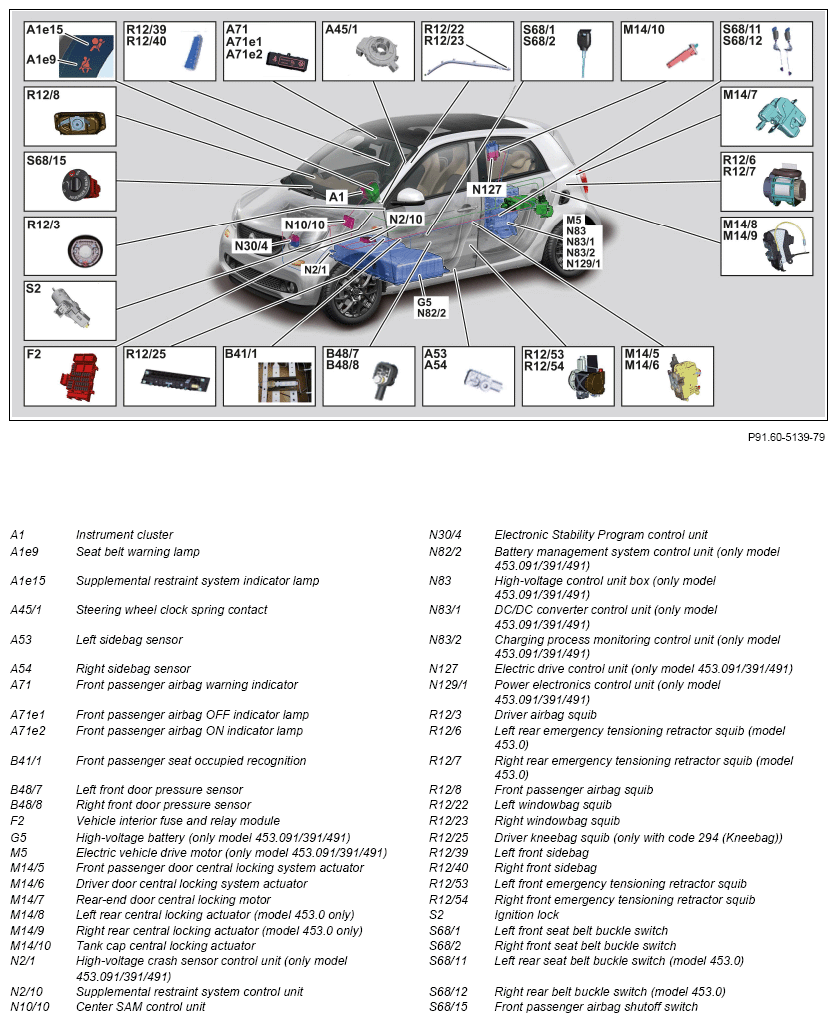

Shown on Model 453.091 without code 908 (On-board charger 22 kW) (valid for Model 453.091/391/491)
In vehicles up to and including model year 2016 and in national versions for the Economic Commission for Europe (ECE) code 294 (Kneebag) is standard equipment for the driver.
| Component description for instrument cluster | Model 453 (except 453.091/391/491) with code K35 (Instrument cluster with monochrome display) or with code K36 (Instrument cluster with color 8.9 cm (3.5") display) A1 |
GF54.30-P-6000KJ | |
| Model 453.091/391/491 with code K35 (Instrument cluster with monochrome display) or with code K36 (Instrument cluster with color 8.9 cm (3.5") display) | GF54.30-P-6000KJE | ||
| Component description for high-voltage battery | Model 453.091/391/491 with engine 780 G5 | GF54.10-P-3004KJE | |
| Component description for electric motor, | Model 453.091/391/491 with engine 780 M5 | GF08.10-P-1000KJE | |
| Crash sensor, high-voltage battery, component description | Model 453.091/391/491 with engine 780 N2/1 | GF08.20-P-4111KJE | |
| Supplemental restraint system control unit, component description | N2/10 | GF91 60-P-4080KJ | |
| Component description for ME-SFI (ME) control unit | Engine 281.910 N3/10 | GF07.61-P-6000KJ | |
| ENGINE 281.920 N3/10 | GF07.61-P-6000KJF | ||
| Center SAM control unit, component description | N10/10 | GF54.21-P-7011KJ | |
| Driver-side SAM control unit, component description | N10/11 | GF54.21-P-7012KJ | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119KJ | |
| Component description for battery management system control unit | Model 453.091/391/491 with engine 780 N82/2 | GF54.10-P-3012KJE | |
| High-voltage control unit box, component description | Model 453.091/391/491 with engine 780 N83 | GF54.21-P-3057KJE | |
| Component description for DC/DC converter control unit | Model 453.091/391/491 with engine 780 N83/1 | GF54.10-P-3006KJE | |
| Charge monitoring control unit, component description | Model 453.091/391/491 without code 908 (Onboard charger 22 kW) N83/2 |
GF54.10-P-3015KJE | |
| High-voltage charger control unit, component description | Model 453.091/391/491 with engine 780 with code 908 (On-board charger 22 kW) N83/10 |
GF08.20-P-2000KJF | |
| Component description for electric drive control unit | Model 453.091/391/491 with engine 780 N127 | GF08.20-P-3001KJE | |
| Component description for power electronics control unit | Model 453.091/391/491 with engine 780 N129/1 | GF08.20-P-1001KJE | |
| Table of contents for function description of supplemental restraint system function | GF91.60-P-0996KJ |
