Overview Of System Components For Supplemental Restraint System - GF91.60-P-9996KJU
MODEL 453.3/4
with CODE 494 (US version)

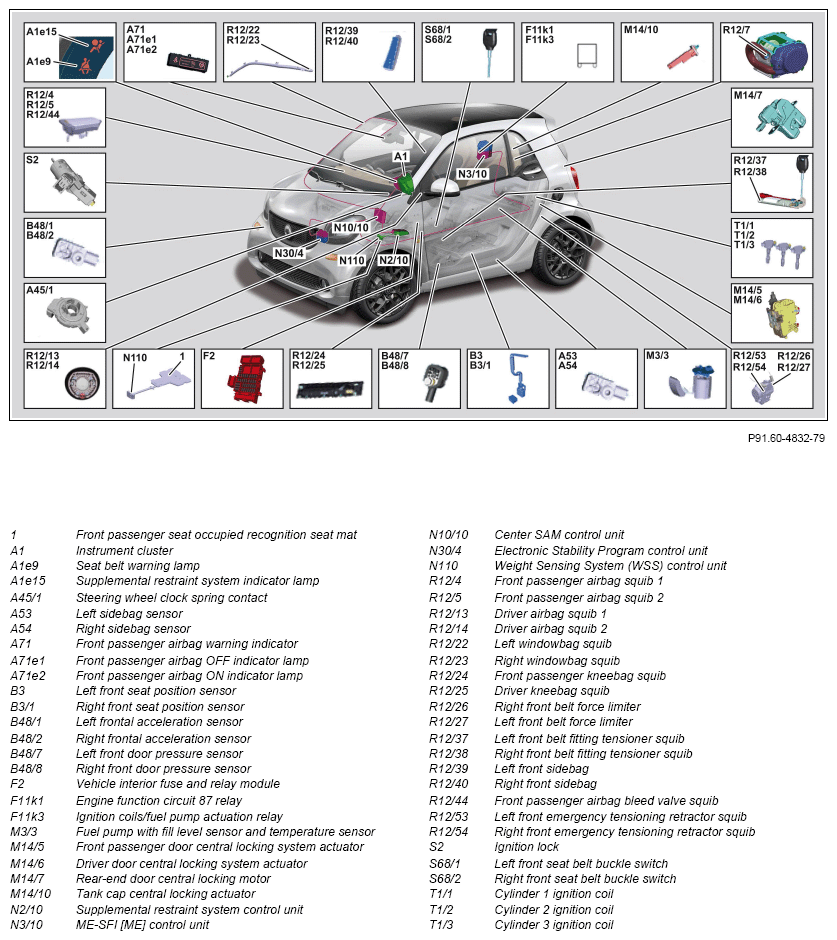

Shown on model 453.3 with engine 281 (valid for all except model 453.391/491)

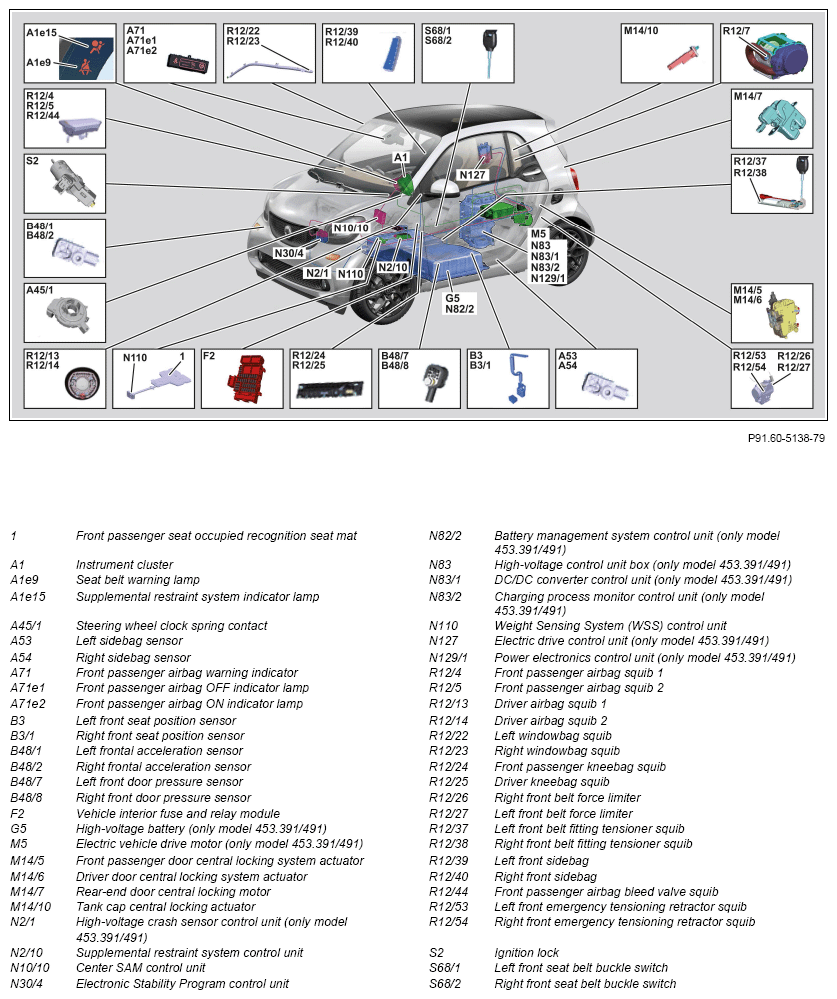

Shown on Model 453.391 (valid for Model 453.391/491)
| Component description for instrument cluster | Model 453/3/4 (except 453.391/491) with code K35 (Instrument cluster with monochrome display) or with code K36 (Instrument cluster with color 8.9 cm (3.5") display) A1 |
GF54.30-P-6000KJ | |
| Model 453.391/491 with code K35 (Instrument cluster with monochrome display) or with code K36 (Instrument cluster with color 8.9 cm (3.5") display) | GF54.30-P-6000KJE | ||
| Component description for high-voltage battery | Model 453.391/491 with engine 780 G5 | GF54.10-P-3004KJE | |
| Component description for electric motor, | Model 453.391/491 with engine 780 M5 | GF08.10-P-1000KJE | |
| Crash sensor, high-voltage battery, component description | Model 453.391/491 with engine 780 N2/1 | GF08.20-P-4111KJE | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080KJ | |
| Component description for ME-SFI (ME) control unit | Vehicles with engine 281.910 N3/10 | GF07.61-P-6000KJ | |
| Vehicles with engine 281.920 | GF07.61-P-6000KJF | ||
| Center SAM control unit, component description | N10/10 | GF54.21-P-7011KJ | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119KJ | |
| Component description for battery management system control unit | Model 453.391/491 with engine 780 N82/2 | GF54.10-P-3012KJE | |
| High-voltage control unit box, component description | Model 453.391/491 with engine 780 N83 | GF54.21-P-3057KJE | |
| Component description for DC/DC converter control unit | Model 453.391/491 with engine 780 N83/1 | GF54.10-P-3006KJE | |
| Charge monitoring control unit, component description | Model 453.391/491 with engine 780 without code 908 (On-board charger 22 kW) N83/2 |
GF54.10-P-3015KJE | |
| Component description for Weight Sensing System (WSS) control unit | N110 | GF91.60-P-4046KJU | |
| Component description for electric drive control unit | Model 453.391/491 with engine 780 N127 | GF08.20-P-3001KJE | |
| Component description for power electronics control unit | Model 453.391/491 with engine 780 N129/1 | GF08.20-P-1001KJE | |
| Table of contents for function description of supplemental restraint system function | GF91.60-P-0996KJU |
