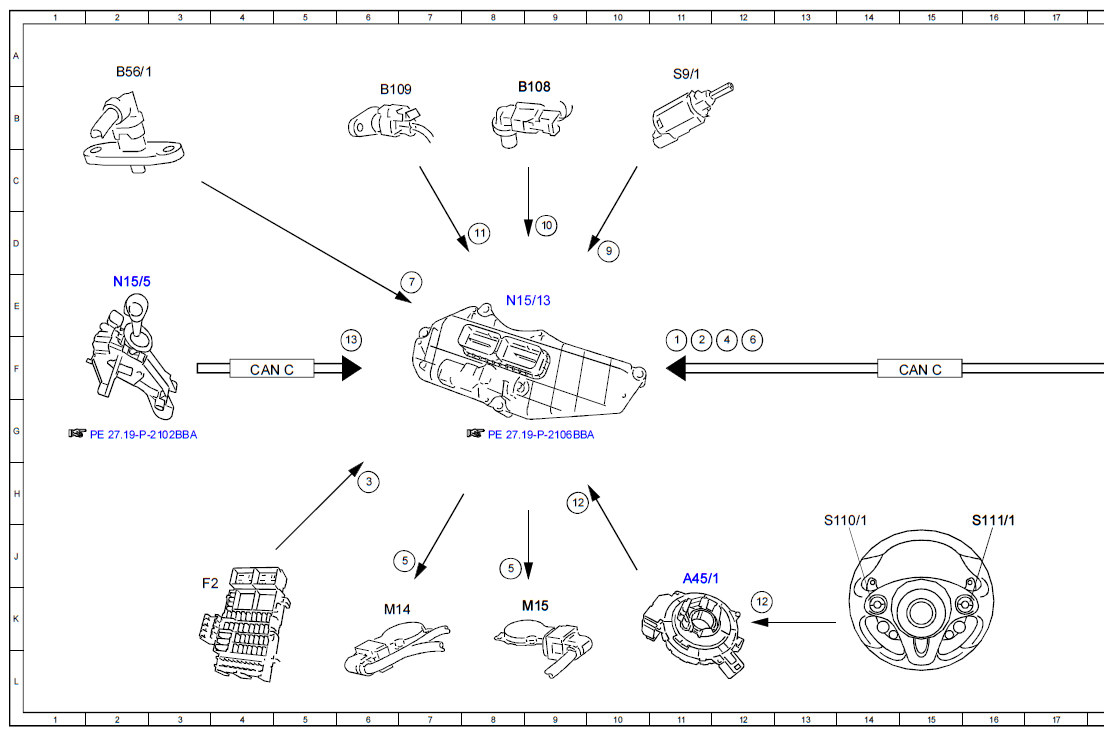

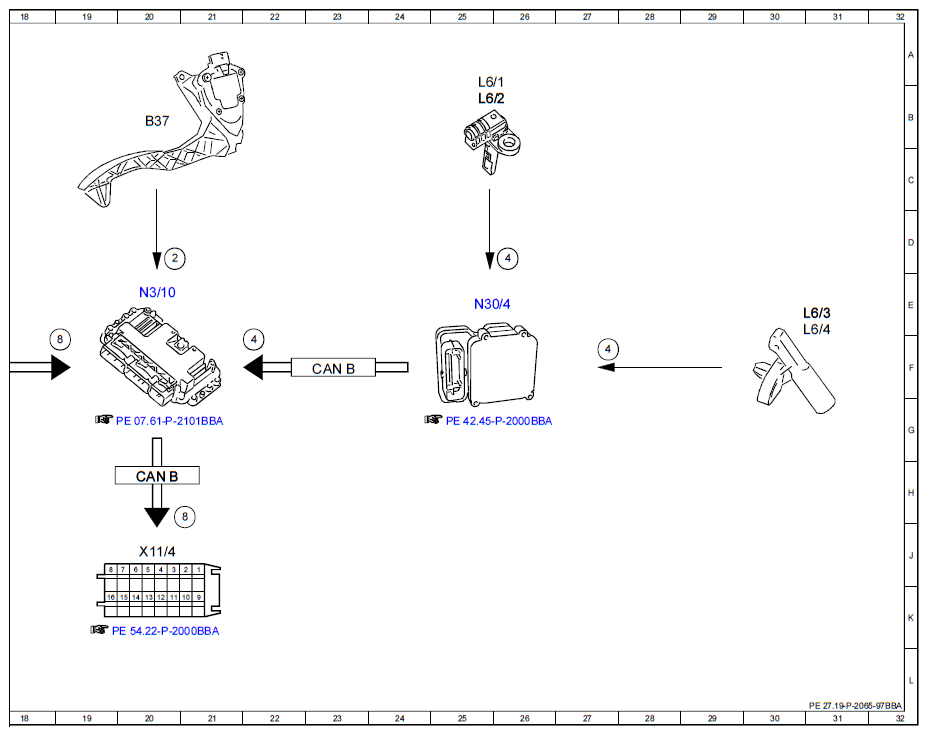

Electrical Function Schematic For Limp-Home Mode, Function - PE27.19-P-2065-97BBA
TRANSMISSION 700.4 in MODEL 453.0/3/4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine speed, signal | 11F |
| 10 | Rpm sensor 1 for transmission input shaft with direction detection, signal | 9D |
| 11 | Rpm sensor 2 for transmission input shaft, signal | 8D |
| 12 | Steering wheel gearshift buttons, status | 12K |
| 12 | Steering wheel gearshift buttons, status | 9H |
| 13 | Selector lever position, status | 6F |
| 2 | Accelerator pedal, status | 11F |
| 2 | Accelerator pedal, status | 20D |
| 3 | Circuit 15, status | 6H |
| 4 | Wheel speed, signal | 12F |
| 4 | Wheel speed, signal | 26D |
| 4 | Wheel speed, signal | 27F |
| 4 | Wheel speed, signal | 22F |
| 5 | Clutch actuator, actuation | 6J |
| 5 | Clutch actuator, actuation | 8J |
| 6 | Engine management, status | 12F |
| 7 | Transmission mode recognition sensor, status | 7E |
| 8 | Transmission control, status | 19F |
| 8 | Transmission control, status | 21J |
| 9 | Brake pedal, status | 10D |
| A45/1 | Steering wheel clock spring contact | 11J |
| B108 | Rpm sensor 1, transmission input shaft with direction detection | 9B |
| B109 | Rpm sensor 2, transmission input shaft | 6B |
| B37 | Accelerator pedal sensor | 20B |
| B56/1 | Transmission mode recognition sensor | 2A |
| CAN B | Interior CAN | 23F |
| CAN B | Interior CAN | 20H |
| CAN C | Drive train CAN | 15F |
| CAN C | Drive train CAN | 4F |
| F2 | Vehicle interior fuse and relay module | 3K |
| L6/1 | Left front axle rpm sensor | 25B |
| L6/2 | Right front axle rpm sensor | 25B |
| L6/3 | Left rear axle rpm sensor | 31E |
| L6/4 | Right rear axle rpm sensor | 31E |
| M14 | Clutch actuator 1 | 6K |
| M15 | Clutch actuator 2 | 9K |
| N15/13 | Double clutch transmission control unit | 8E |
| N15/5 | Electronic selector lever module control unit | 2E |
| N3/10 | ME-SFI [ME] control unit | 20E |
| N30/4 | Electronic Stability Program control unit | 25E |
| S110/1 | Steering wheel downshift button | 13J |
| S111/1 | Steering wheel upshift button | 16J |
| S9/1 | Stop lamp switch | 11A |
| X11/4 | Diagnostic connector | 20J |
