Remove/Install Accelerator Pedal - AR30.12-P-1321SR
MODEL 453

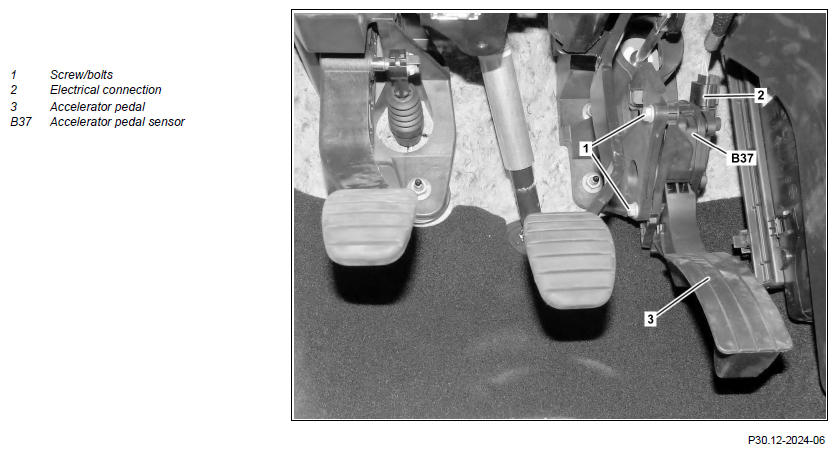

Shown on vehicle with transmission 700.12
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Unplug electrical connection (2) at accelerator pedal sensor (B37) | ||
| 3 | Remove screw/bolts (1) | *BA30.20-P-1001-03D | |
| 4 | Remove accelerator pedal (3) with accelerator pedal sensor (B37) | ||
| 5 | Install in the reverse order |
ACCELERATOR PEDAL
| Number | Designation | MODEL 453 | |
|---|---|---|---|
| BA30.20-P-1001-03D | Screw/bolt, accelerator pedal to bearing bracket | Nm | 8 |
