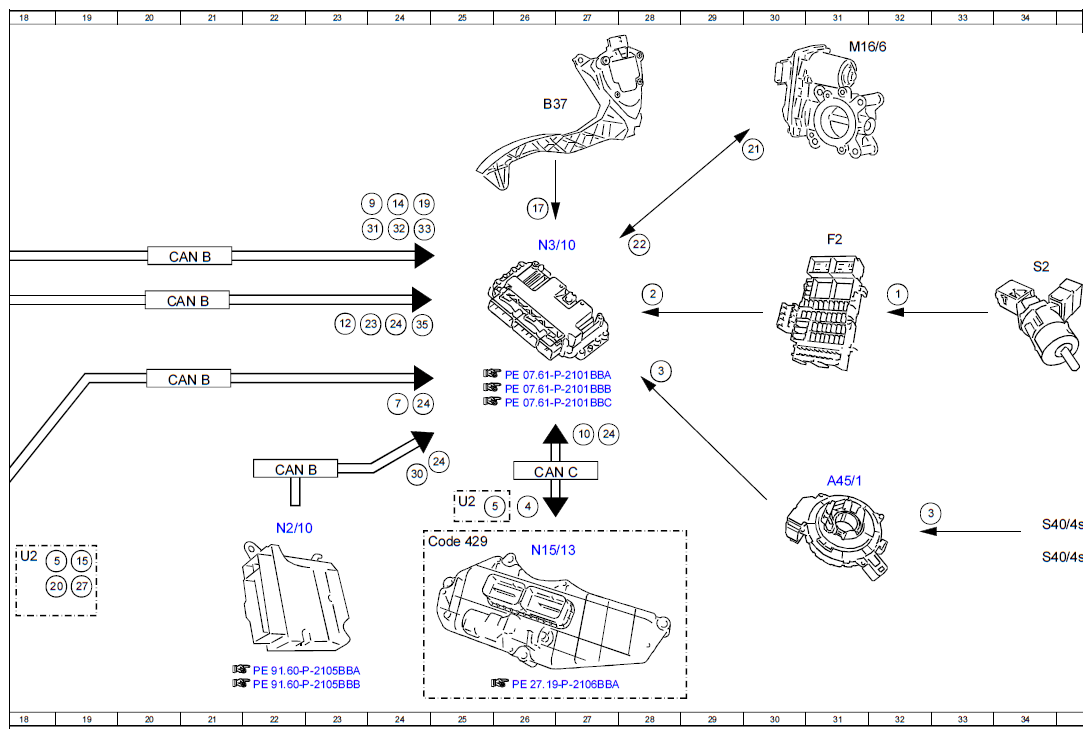

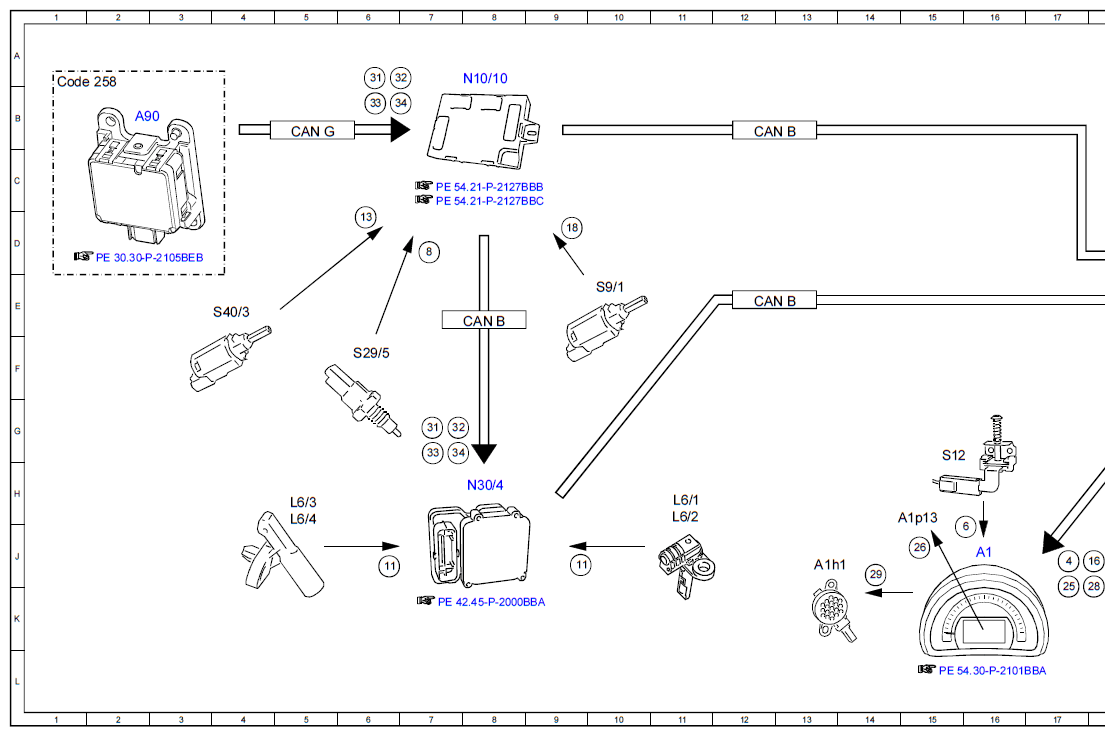

Electrical Function Schematic For Cruise Control (CC) - PE30.30-P-2051-97BBA
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) with CODE 440 (Cruise control)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 15, signal | 32E |
| 10 | Gear range, status | 27G |
| 11 | Wheel speed, signal | 6J |
| 11 | Wheel speed, signal | 9J |
| 12 | Vehicle speed, signal | 23E |
| 13 | Clutch pedal switch, signal | 6D |
| 14 | Clutch pedal, status | 24D |
| 15 | Set maximum speed, status | 19J |
| 16 | Speed setting, status | 18J |
| 17 | Accelerator pedal, status | 26C |
| 18 | Brake light switch, status | 9D |
| 19 | Brake pedal, status | 24C |
| 2 | Terminal 15g, signal | 28E |
| 20 | Maximum speed indicator, request | 19J |
| 21 | Throttle valve actuator, actuation | 30B |
| 22 | Throttle valve position, signal | 28D |
| 23 | ESP/ASR control in progress, status | 24E |
| 24 | Deactivate cruise control, request | 24E |
| 24 | Deactivate cruise control, request | 24G |
| 24 | Deactivate cruise control, request | 25H |
| 24 | Deactivate cruise control, request | 27G |
| 25 | Instrument cluster message, request | 17J |
| 26 | Multifunction display, actuation | 15J |
| 27 | Set speed exceeded, status | 19J |
| 28 | Warning tone, request | 18J |
| 29 | Warning buzzer, actuation | 14J |
| 3 | Cruise control/variable speed limiter switch group, signal | 28F |
| 3 | Cruise control/variable speed limiter switch group, signal | 32H |
| 30 | Crash, signal | 24H |
| 31 | Active Brake Assist, status | 7G |
| 31 | Active Brake Assist, status | 6A |
| 31 | Active Brake Assist, status | 24D |
| 32 | Object information, data package | 7A |
| 32 | Object information, data package | 7G |
| 32 | Object information, data package | 24D |
| 33 | Static or dynamic object, status | 7G |
| 33 | Static or dynamic object, status | 6B |
| 33 | Static or dynamic object, status | 24D |
| 34 | Active brake intervention, request | 7G |
| 34 | Active brake intervention, request | 7B |
| 35 | Engine torque, reduce request | 24F |
| 4 | Cruise control, status | 17J |
| 4 | Cruise control, status | 26H |
| 5 | Variable speed limiter, status | 18J |
| 5 | Variable speed limiter, status | 25H |
| 6 | Parking brake indicator switch, signal | 16J |
| 7 | Parking brake indicator switch, status | 24G |
| 8 | Reverse gear engaged, signal | 7D |
| 9 | Reverse gear, status | 24D |
| A1 | Instrument cluster | 16J |
| A1h1 | Warning buzzer | 13J |
| A1p13 | Multifunction display | 15H |
| A45/1 | Steering wheel clock spring contact | 31H |
| A90 | Controller unit for distance warning function with active brake intervention | 2B |
| B37 | Accelerator pedal sensor | 26B |
| CAN B | Interior CAN | 21F |
| CAN B | Interior CAN | 21D |
| CAN B | Interior CAN | 20E |
| CAN B | Interior CAN | 8E |
| CAN B | Interior CAN | 12E |
| CAN B | Interior CAN | 12B |
| CAN B | Interior CAN | 22H |
| CAN C | Drive train CAN | 26H |
| CAN G | Front end CAN | 5B |
| Code 258 | Active Brake Assist | 1A |
| Code 429 | twinamic | 24J |
| F2 | Vehicle interior fuse and relay module | 31D |
| L6/1 | Left front axle rpm sensor | 11H |
| L6/2 | Right front axle rpm sensor | 11H |
| L6/3 | Left rear axle rpm sensor | 5H |
| L6/4 | Right rear axle rpm sensor | 5H |
| M16/6 | Throttle valve actuator | 31A |
| N10/10 | Center SAM control unit | 8A |
| N15/13 | Double clutch transmission control unit | 26J |
| N2/10 | Supplemental restraint system control unit | 22J |
| N3/10 | ME-SFI [ME] control unit | 26D |
| N30/4 | Electronic Stability Program control unit | 8H |
| S12 | Parking brake indicator switch | 15G |
| S2 | Ignition lock | 34D |
| S29/5 | Backup light activation/idle recognition switch | 6F |
| S40/3 | Clutch pedal switch | 4E |

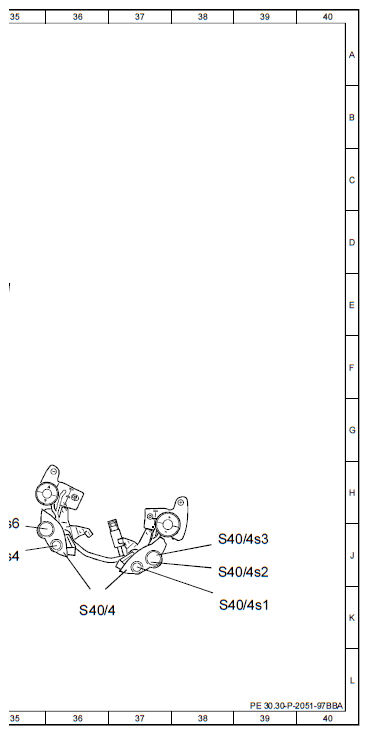

| S40/4 | Cruise control/variable speed limiter switch group | 36K |
| S40/4s1 | Resume from memory switch | 38K |
| S40/4s2 | Decelerate and set switch | 38J |
| S40/4s3 | Accelerate and set switch | 38J |
| S40/4s4 | OFF switch | 34J |
| S40/4s6 | Cruise control/variable speed limiter switch | 34J |
| S9/1 | Stop lamp switch | 10E |
| U2 | Not valid for USA | 18J |
| U2 | Not valid for USA | 25H |
