Remove/Install Cross Strut - AR61.10-P-5139SRC

MODEL 453.44/45/46

Courtesy of MERCEDES-BENZ USA

	Remove/install

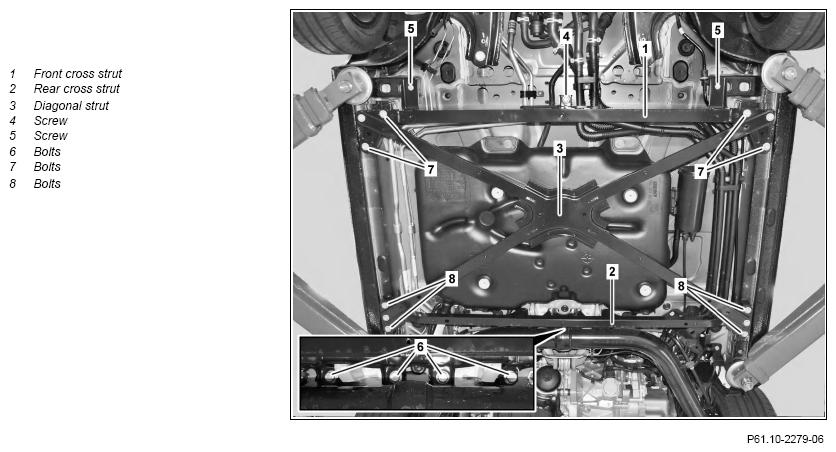

1	Remove diagonal strut (3)		AR61.10-P-5138SRC
2	Unscrew bolts (4, 5)
3	Unscrew bolts (7) and remove front cross strut (1)	Helper required.
4	Remove bolts (6)
5	Unscrew bolts (8) and remove rear cross strut (2)	Helper required.
6	Install in the reverse order
