Remove/Install Diagonal Strut - AR61.10-P-5138SRC
MODEL 453.44/45/46
| Remove/install | |||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| 1 | Raise vehicle with vehicle lift | ||
| 2 | Remove underfloor panels | ||

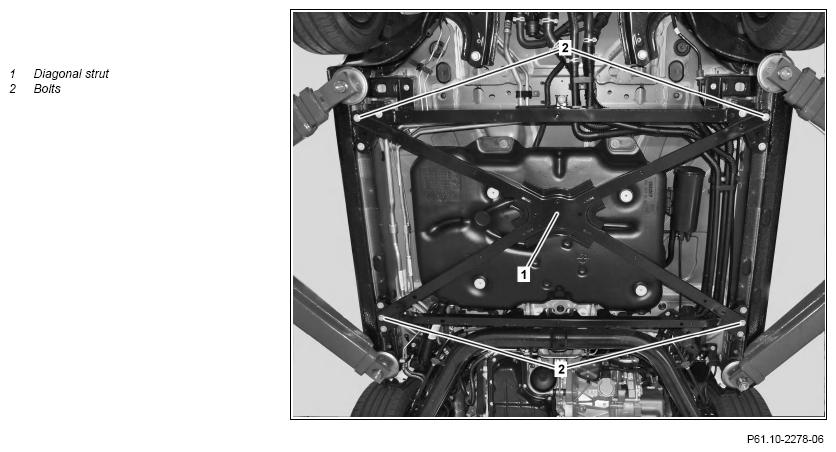

| 3 | Remove bolts (2) and remove diagonal strut (1) | ||
| 4 | Install in the reverse order |
