Remove/Install Mounting Bracket For Front Cross Strut - AR61.10-P-0020SRC
MODEL 453.4
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| General information on repair of vehicles with ultra-strength steels. | AH60.00-P-0024-01SR | ||
| General information on MB materials | AH98.00-P-9409-03SM | ||
| General information on body repair | AH60.00-P-0001-01FF | ||
| Remove | |||
| 1 | Remove detachable parts in area to be repaired | ||
| 2 | Cover all detachable parts remaining on vehicle with spark protection blankets | ||
| 3 | Remove mounting consoles (1, 2) | Round wire brush Spot weld milling machine Wet/dry vacuum cleaner |

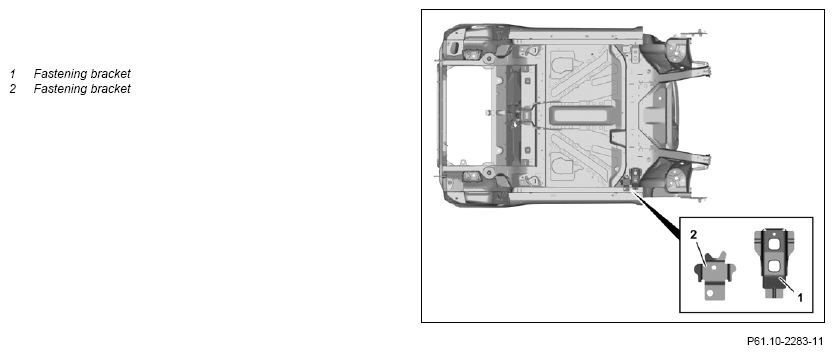

AR61.10-P-0020-01SRC |
| 4 | Prepare mounting consoles (1, 2) for installation | Round wire brush Wet/dry vacuum cleaner |
AR61.10-P-0020-02SRC |
| Install | |||
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly flammable materials from the hazard area. Use air extraction system. | AS00.00-Z-0007-01A | |
| Measures for preventing damage to vehicles or components when performing electric welding work | AH00.00-P-0005-01FF | ||
| 5 | Install mounting consoles (1, 2) | AR61.10-P-0020-03SRC | |
| 000 588 02 84 00 Welder | Round wire brush Wet/dry vacuum cleaner |
WS60.00-P-0022K | |
| 6 | Clean weld joints and sheet metal flange with round wire brush | Round wire brush |
|
| 7 | Remove spark protection blankets | ||
| 8 | Clean repair area | Wet/dry vacuum cleaner |
|
| 9 |
Prime repair area using primer filler Notes on paintwork repairs |
AH98.00-P-9408-02MCC | |
| 10 | Seal seam following repairs | AR97.10-P-4000SR | |
| 11 |
Paint repair areas and adjacent surfaces Notes on paintwork repairs |
AH98.00-P-9408-02MCC | |
| 12 | Add cavity preserving agent | AR97.20-P-1500SR | |
| 13 | Install all detachable body components in area to be repaired |
