Open Tailgate Using Emergency Unlocking Feature - AR72.20-P-3515SRA
MODEL 453.3/4
MODEL 453.3
Shown on left side of vehicle on model 453.3
| Run | |||
| 1 | Fold over backrest | ||
| 2 | Remove load compartment cover | Model 453.3/4 with code 723 (Luggage cover) |
|

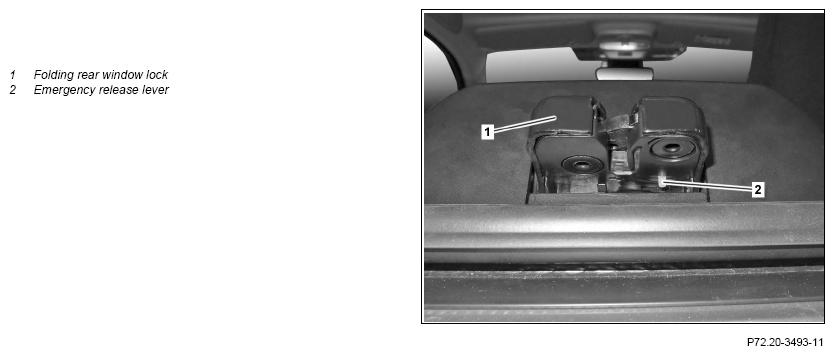

| 3 | Actuate emergency release lever (2) from inside on lock of folding rear window (1) | Model 453.3 | |

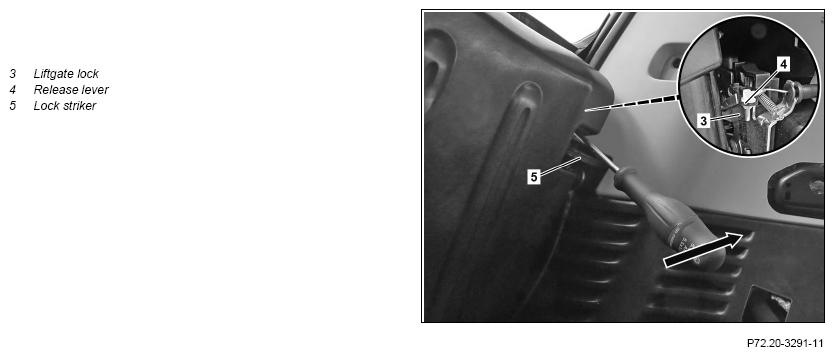

| 4 | Using a suitable tool, actuate release lever (4) via lock striker (5) on liftgate lock (3) to the left and right in direction of arrows |
