Remove/Install Liftgate - AR72.20-P-1020SRC
MODEL 453.4
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||

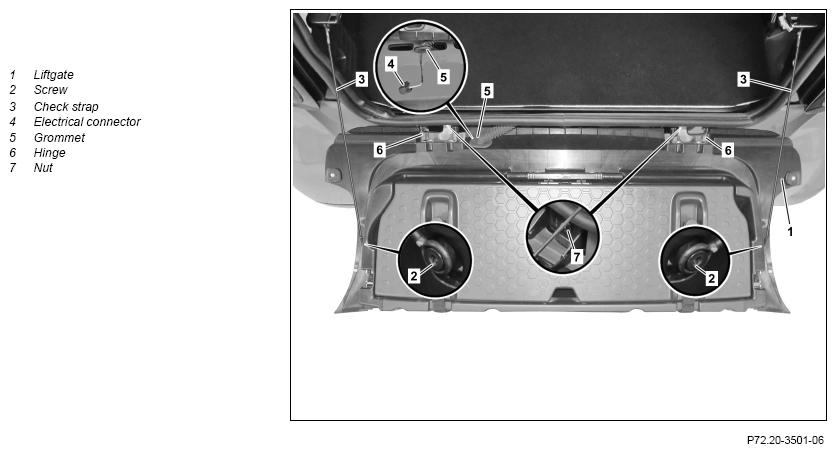

| 1 | Remove outer paneling from liftgate (1) | AR72.20-P-1016SRA | |
| 2 | Remove bolts (2) and place check straps (3) to one side | ||
| 3 | Disconnect electrical connector (4) from outside | ||
| 4 | Loosen grommet (5) and guide electrical wiring harness out of liftgate (1) | ||
| 5 | Mark position of hinges (6) | ||
| 6 | Unscrew nuts (7), remove liftgate (1) and lay down on a suitable surface | *BA72.20-P-1005-03SR | |
| 7 | Install in the reverse order | ||
| 8 | Adjust gap dimensions on liftgate (1) | AR72.20-P-0002SRC | |
| Calibrate | |||
| 9 | Calibrate reversing camera using diagnostic system and calibration device | Model 453.4 with code 218 (Rear view camera) Model 453.4 with code V52 (Combination code for rear parking aid and reversing camera) |
AR54.65-P-0022SR |
LIFTGATE
| Number | Designation | Model 453.4 | |
|---|---|---|---|
| BA72.20-P-1005-03SR | Screw/bolt/nut, liftgate hinge to rear center section | Nm | 21 |
