Component Description For Electric Drive Control Unit - GF08.20-P-3001KJE
ENGINE 780 in MODEL 453.091/391/491
Location

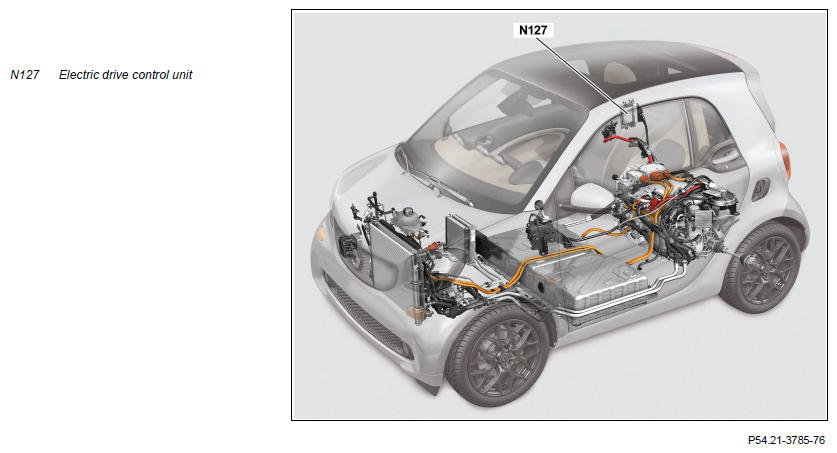

The EDCU (N127) is located at the rear right on the B-pillar.
Task
The EDCU fulfills the following tasks:
- Reading in sensors and signals
- Control module functions
- Evaluation of input factors
- Output of signals and actuation of components
Reading in sensors and signals
Input factors are read in over the following connections:
- Direct line
- Interior CAN (CAN B)
- Electric drive CAN (CAN EL)
- Charge CAN
- Electric drive LIN (LIN EL)
Control module functions
The EDCU includes the followings functions:
- Interface (gateway) between the directly connected Controller Area Network (CAN) bus systems.
- Central controlling and evaluation of the interlock circuit
- Accelerator pedal and torque functions
- Creep torque incl. slope compensation
- Torque filtering/load change shock dampening
- Regenerative braking
- Energy management
- Activating and deactivating high-voltage on-board electrical system
- Charging functions
- Pre-air conditioning
- Ensuring and monitoring torque
Evaluation of input factors
The input factors that have been read in are evaluated by the integrated microprocessor and the affected components are then actuated.
Output of signals and actuation of components
Initial parameter are output over the following connections:
- Direct line
- Interior CAN
- Electric drive system CAN
- Charge CAN
- Electric drive LIN
Input factors and initial parameters for the following assembly parts are read in or output over direct lines by the EDCU:
| Input factors over a direct line | Initial parameters over a direct line | Supplemental information |
|---|---|---|
| Terminal 15 | - | - |
| - | Actuation of the high-voltage battery heater relay(K60/2) | - |
| - | - | - |
| - | Actuation of air conditioning system blower motor power supply relay (K99/1) | - |
| - | Actuation of relay 1 (precharging) battery management system control unit (N82/2k1) | - |
| - | Actuation of relay 2 (phase signal) battery management system control unit (N82/2k2) | - |
| - | Actuation of relay 3 (neutral line) battery management system control unit (N82/2k3) | - |
| - | Actuation of fan motor (M4/7) with pulse width modulated (PWM) signal | - |
| - | High-voltage control unit box coolant pump (M43/1) | - |
| - | High-voltage battery coolant pump (M43/2) | - |
| - | Actuation of the high-voltage battery cooling closed-loop control valve and high-voltage control unit box (Y139/4) | - |
| - | Actuation of the high-voltage battery cooling system regulating valve (Y139/5) | - |
| Brake light switch (S9/1) | - | - |
| Accelerator pedal sensor (B37) | Accelerator pedal sensor (B37) | - |
| Transmission mode recognition sensor (B56/1) | Transmission mode recognition sensor (B56/1) | - |
| Coolant pressure sensor (B4/22) | Coolant pressure sensor (B4/22) | - |
| Charger feed socket contacts temperature sensor (B58/23) | Charger feed socket contacts temperature sensor (B58/23) | - |
| Circuit 31 | - | - |
Input factors and initial parameters for the following assembly parts and control units are sent or received by the EDCU via CAN:
| Input factors via electric drive CAN | Initial parameters via electric drive CAN | Supplemental information |
|---|---|---|
| Battery management system control unit (N82/2) | Battery management system control unit (N82/2) | Includes signals from other control units that are connected via electric drive CAN (CAN EL). |
| Input factors via interior CAN | Initial parameters via charge CAN | Supplemental information |
|---|---|---|
| Control unit of charger for high-voltage battery (7 kW charger) (N83/5) | Control unit of charger for high-voltage battery (7 kW charger) (N83/5) | Contained signals of further control units which are connected via the CAN network. |
| Input factors via interior CAN | Initial parameters via interior CAN | Supplemental information |
|---|---|---|
| Center SAM control unit (N10/10) | Center SAM control unit (N10/10) | Includes signals from other control units that are connected via interior CAN (CAN B). |
Structure
The EDCU consists of one plastic housing with three plug couplings and internal control unit.
Voltage supply
With ignition ON, the EDCU is supplied with voltage from "circuit 15 an fused".
| Wiring diagram for electric drive control unit | PE54.00-P-2001-97BEA |
