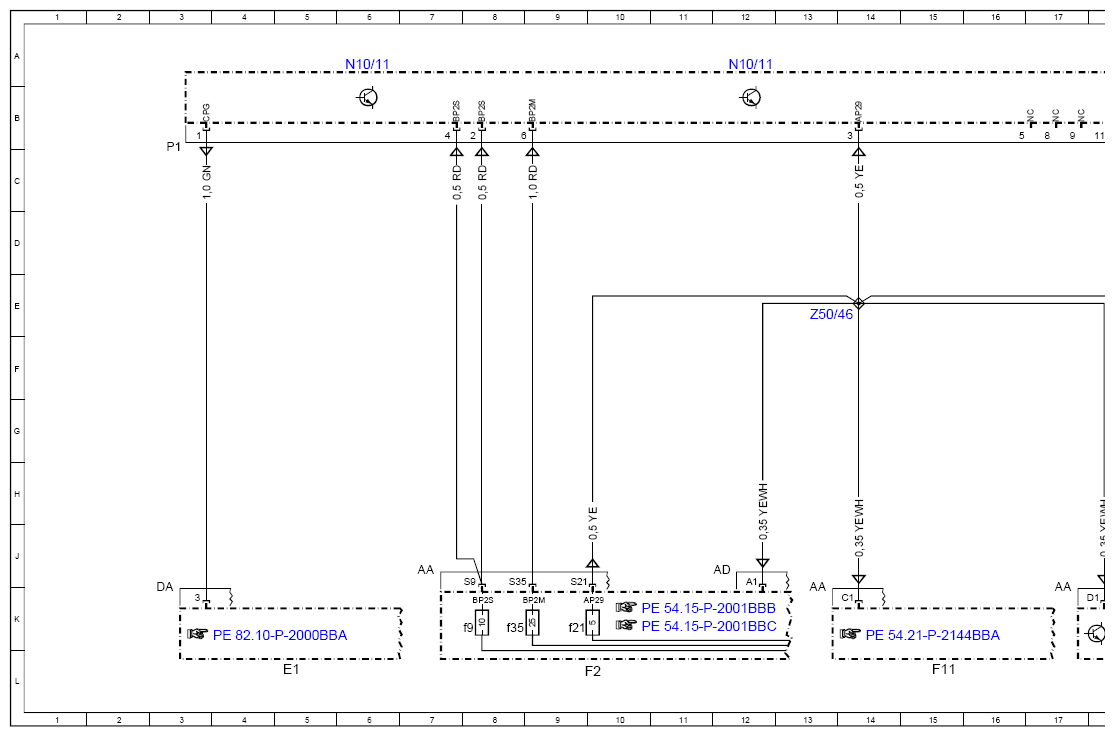

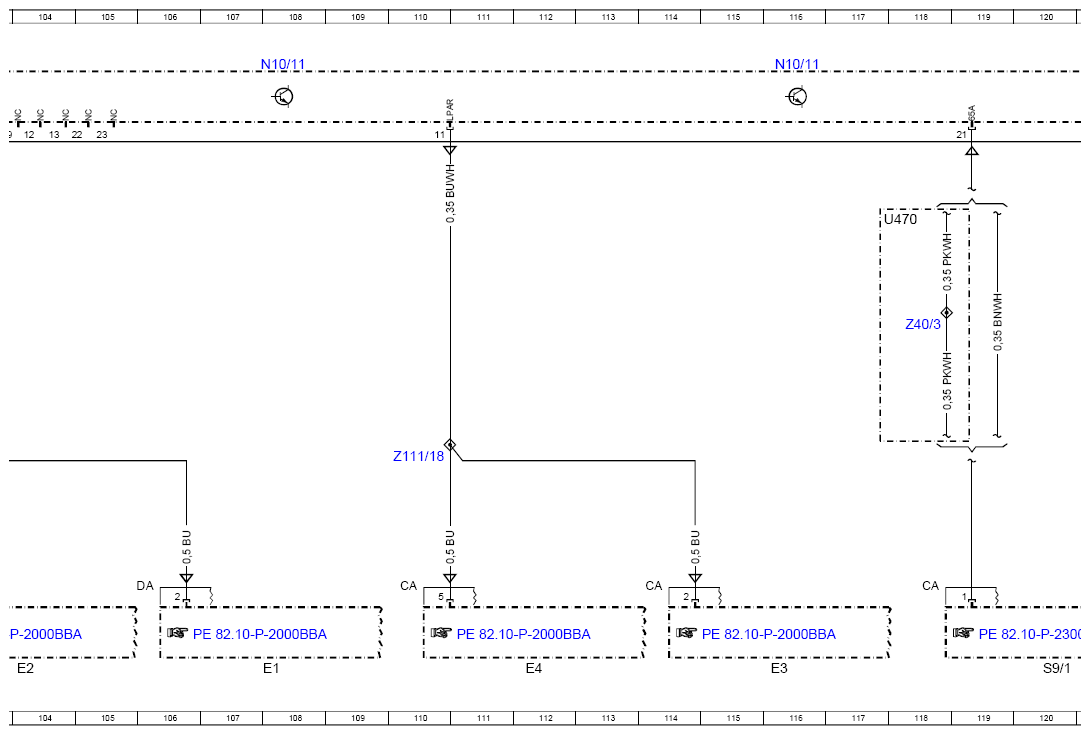

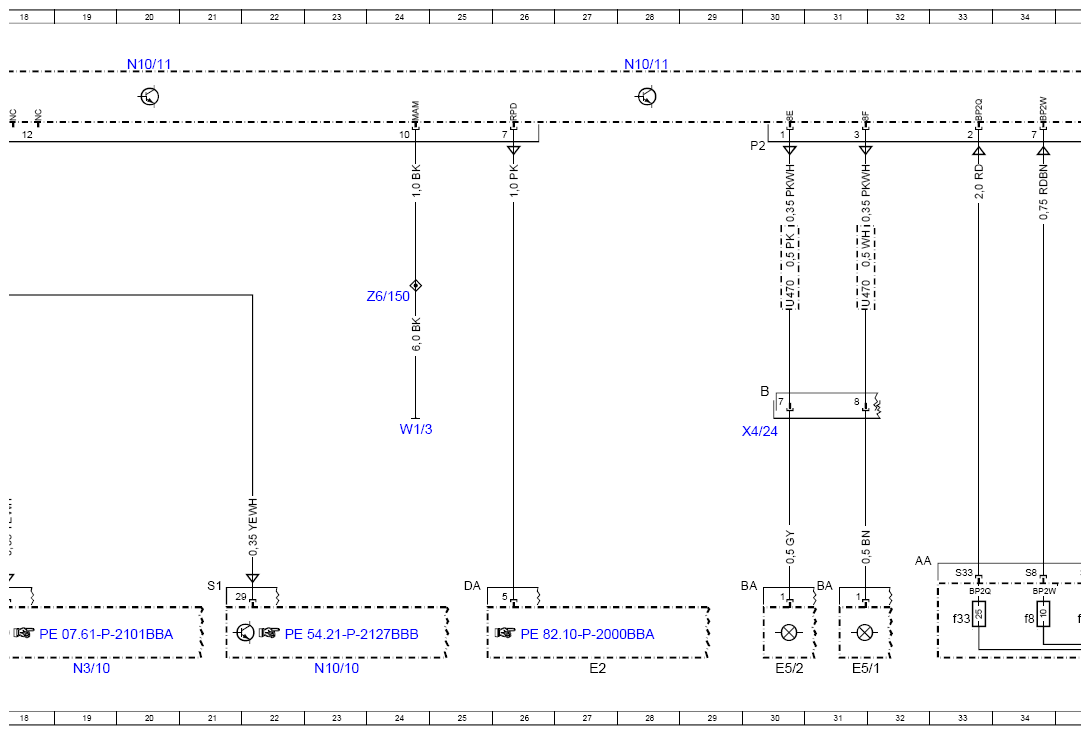

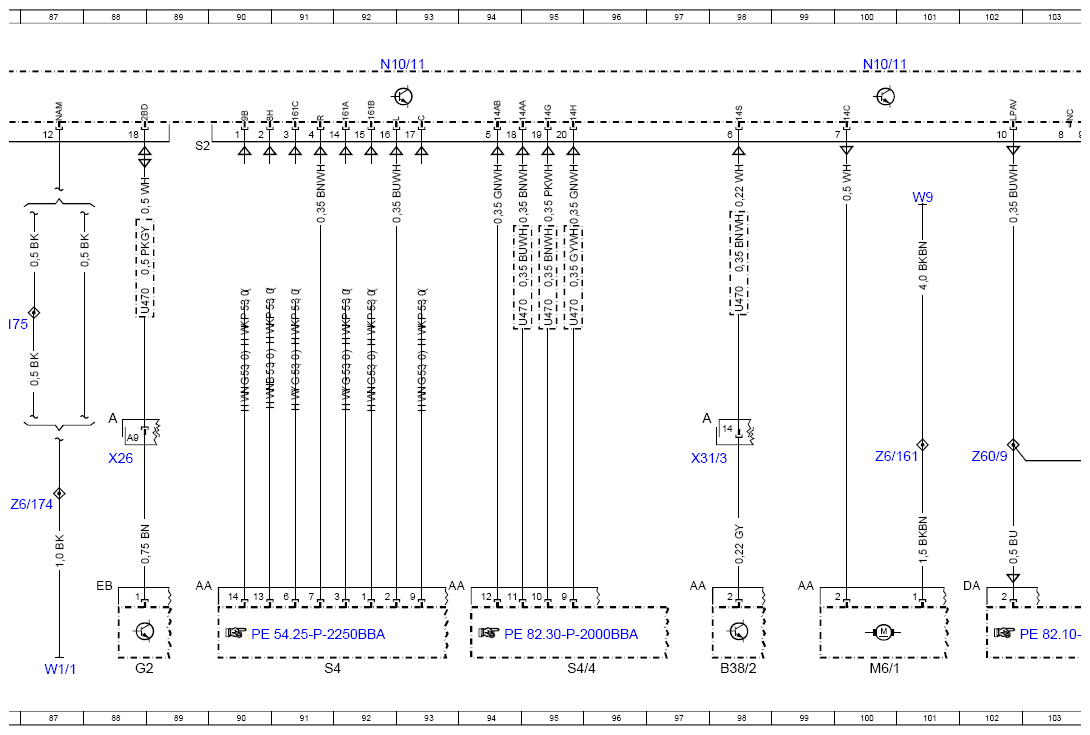

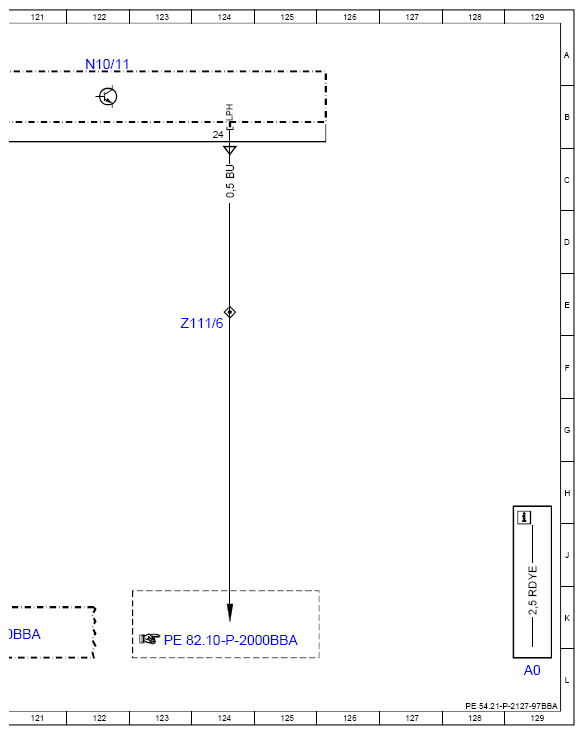

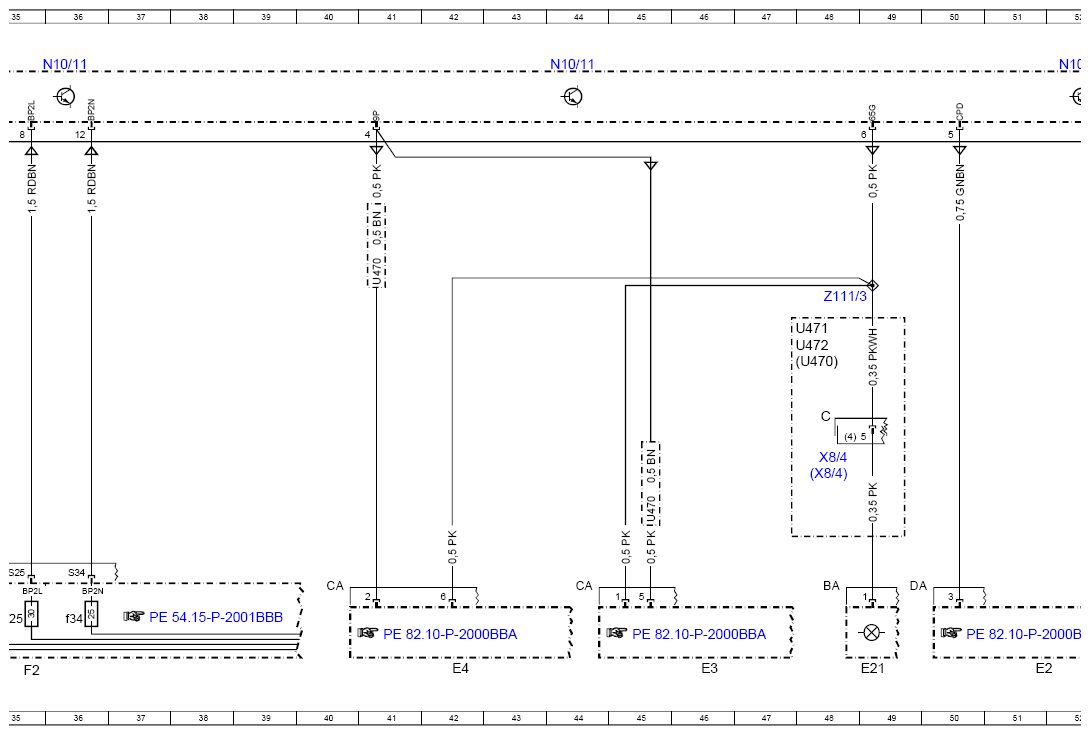

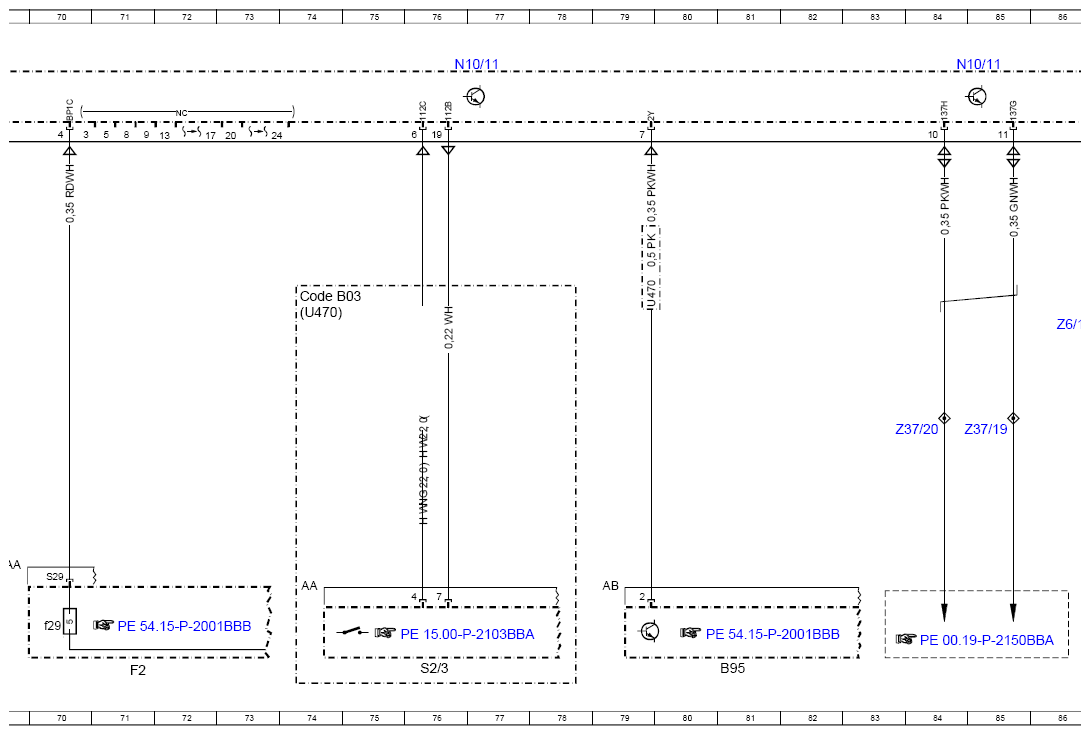

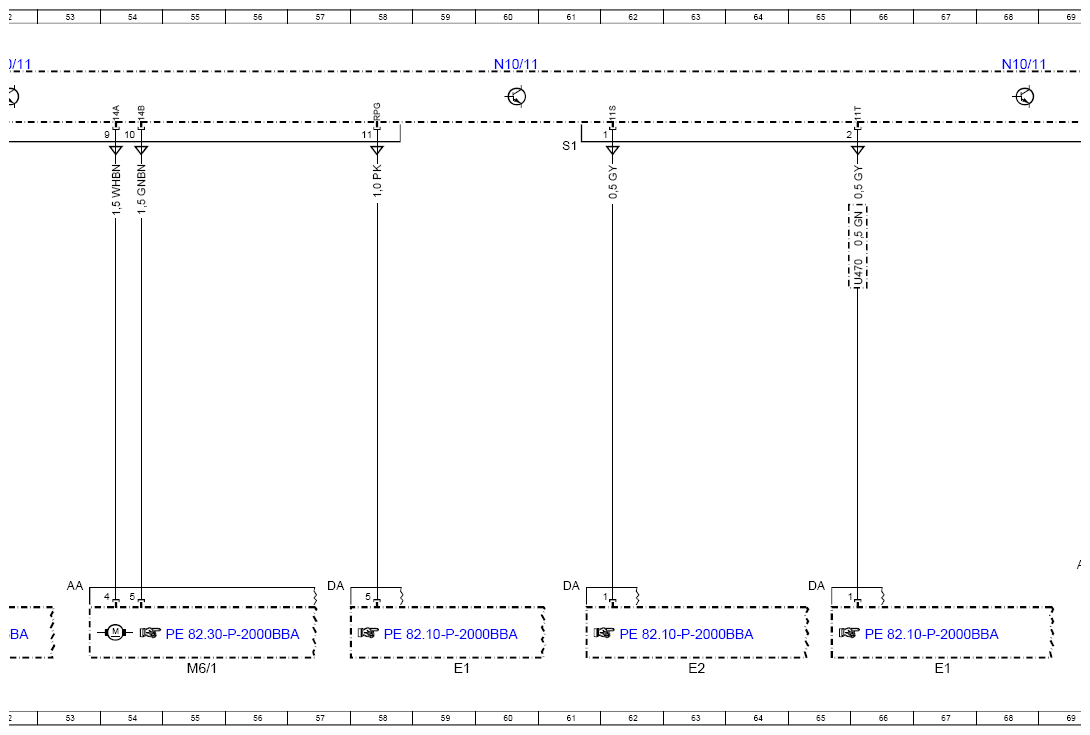

Wiring Diagram For Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-P-2127-97BBA
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491) up to model year 2020 N10/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 129L |
| B38/2 | Rain/light sensor | 98L |
| B95 | Battery sensor | 81L |
| Code B03 | Direct starting | 74E |
| E1 | Left front lamp unit | 5L |
| E1 | Left front lamp unit | 59L |
| E1 | Left front lamp unit | 67L |
| E1 | Left front lamp unit | 108L |
| E2 | Right front lamp unit | 27L |
| E2 | Right front lamp unit | 51L |
| E2 | Right front lamp unit | 63L |
| E2 | Right front lamp unit | 104L |
| E21 | Center stop lamp | 49L |
| E3 | Left rear lamp unit | 46L |
| E3 | Left rear lamp unit | 116L |
| E4 | Right rear lamp unit | 42L |
| E4 | Right rear lamp unit | 112L |
| E5/1 | Left fog lamp | 31L |
| E5/2 | Right fog lamp | 30L |
| F11 | Combustion engine fuse and relay module | 15L |
| F2 | Vehicle interior fuse and relay module | 10L |
| F2 | Vehicle interior fuse and relay module | 35L |
| F2 | Vehicle interior fuse and relay module | 71L |
| F2f21 | Fuse 21 | 9K |
| F2f25 | Fuse 25 | 35K |
| F2f29 | Fuse 29 | 70K |
| F2f33 | Fuse 33 | 33K |
| F2f34 | Fuse 34 | 36K |
| F2f35 | Fuse 35 | 8K |
| F2f8 | Fuse 8 | 34K |
| F2f9 | Fuse 9 | 8K |
| G2 | Alternator | 88L |
| M6/1 | Wiper motor | 55L |
| M6/1 | Wiper motor | 100L |
| N10/10 | Center SAM control unit | 23L |
| N10/11 | Driver SAM control unit | 6A |
| N10/11 | Driver SAM control unit | 12A |
| N10/11 | Driver SAM control unit | 20A |
| N10/11 | Driver SAM control unit | 28A |
| N10/11 | Driver SAM control unit | 36A |
| N10/11 | Driver SAM control unit | 44A |
| N10/11 | Driver SAM control unit | 52A |
| N10/11 | Driver SAM control unit | 60A |
| N10/11 | Driver SAM control unit | 68A |
| N10/11 | Driver SAM control unit | 76A |
| N10/11 | Driver SAM control unit | 84A |
| N10/11 | Driver SAM control unit | 92A |
| N10/11 | Driver SAM control unit | 100A |
| N10/11 | Driver SAM control unit | 116A |
| N10/11 | Driver SAM control unit | 108A |
| N10/11 | Driver SAM control unit | 122A |
| N3/10 | ME-SFI [ME] control unit | 19L |
| S2/3 | Start/stop button | 76L |
| S4 | Combination switch | 91L |
| S4/4 | Windshield wiper system switch | 95L |
| S9/1 | Stop lamp switch | 120L |
| U470 | Valid for model 453.0 | 45H |
| U470 | Valid for model 453.0 | 30E |
| U470 | Valid for model 453.0 | 32E |
| U470 | Valid for model 453.0 | 41E |
| U470 | Valid for model 453.0 | 47F |
| U470 | Valid for model 453.0 | 74E |
| U470 | Valid for model 453.0 | 66E |
| U470 | Valid for model 453.0 | 80E |
| U470 | Valid for model 453.0 | 89E |
| U470 | Valid for model 453.0 | 95E |
| U470 | Valid for model 453.0 | 95E |
| U470 | Valid for model 453.0 | 95E |
| U470 | Valid for model 453.0 | 98E |
| U471 | Valid for model 453.3 | 47E |
| U472 | Valid for model 453.4 | 47F |
| W1/1 | Cockpit frame ground point | 87L |
| W1/3 | Left cockpit ground point | 24G |
| W9 | Left front ground point (at lamp unit) | 101C |
| X26 | Vehicle interior/engine wiring harness electrical connector | 88H |
| X31/3 | Dome lamp electrical connector | 97H |
| X4/24 | Vehicle interior/daytime running lights electrical connector | 30G |
| X8/4 | Trunk lid electrical connector | 48H |
| X8/4 | Trunk lid electrical connector | 48H |
| Z111/18 | Rear standing lights connector sleeve | 110G |
| Z111/3 | Brake light actuation connector sleeve | 48E |
| Z111/6 | Circuit 58 connector sleeve | 124E |
| Z37/19 | CAN bus (low) connector sleeve | 85G |
| Z37/20 | CAN databus (high) connector sleeve | 84G |
| Z40/3 | Stop lamp connector sleeve | 118E |
| Z50/46 | Circuit 15 (fused) connector sleeve | 13E |
| Z6/150 | Ground connection connector sleeve | 24E |
| Z6/161 | Ground connection connector sleeve | 100G |
| Z6/174 | Ground connection connector sleeve | 87H |
| Z6/175 | Ground connection connector sleeve | 86E |
| Z60/9 | Daytime running lamp connector sleeve (circuit 58) | 102G |
