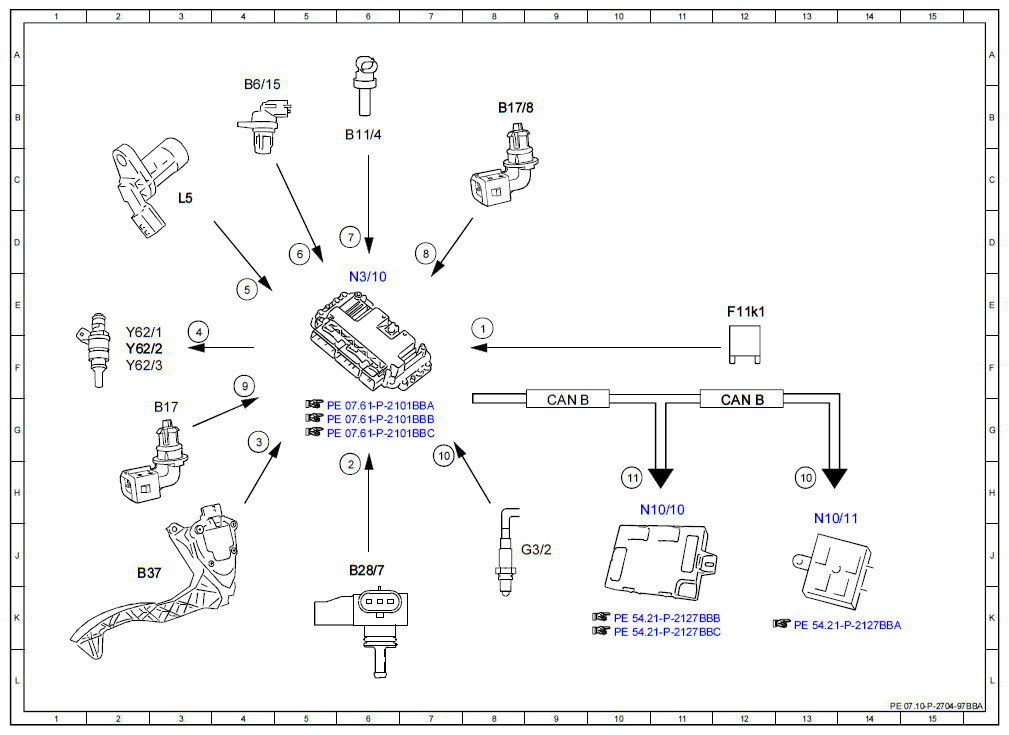

Electrical Function Diagram For Injection Control - PE07.10-P-2704-97BBA
ENGINE 281.910 in MODEL 453.0/3/4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Circuit 87, status | 8E |
| 10 | Oxygen sensor, signal | 7G |
| 11 | Engine running, signal | 10H |
| 2 | Engine load, signal | 6H |
| 3 | Accelerator pedal sensor, signal | 4G |
| 4 | Injection valves, actuation | 3F |
| 5 | Engine speed, signal | 4E |
| 6 | Camshaft Hall sensor, signal | 5D |
| 7 | Coolant temperature sensor, signal | 6D |
| 8 | Charge air temperature sensor, signal | 7D |
| 9 | Intake air temperature sensor, signal | 4F |
| B11/4 | Coolant temperature sensor | 6B |
| B17 | Intake air temperature sensor | 3G |
| B17/8 | Charge air temperature sensor | 8B |
| B28/7 | Pressure sensor downstream of throttle valve | 6J |
| B37 | Accelerator pedal sensor | 2J |
| B6/15 | Intake camshaft Hall sensor | 4B |
| CAN B | Interior CAN | 9G |
| CAN B | Interior CAN | 12G |
| F11k1 | Engine function circuit 87 relay | 12E |
| G3/2 | Oxygen sensor upstream of catalytic converter | 8J |
| L5 | Crankshaft position sensor | 3C |
| N10/10 | Center SAM control unit | 11H |
| N10/11 | Driver SAM control unit | 13H |
| N3/10 | ME-SFI [ME] control unit | 6E |
| Y62/1 | Cylinder 1 injection valve | 2F |
| Y62/2 | Cylinder 2 injection valve | 2F |
| Y62/3 | Cylinder 3 injection valve | 2F |
