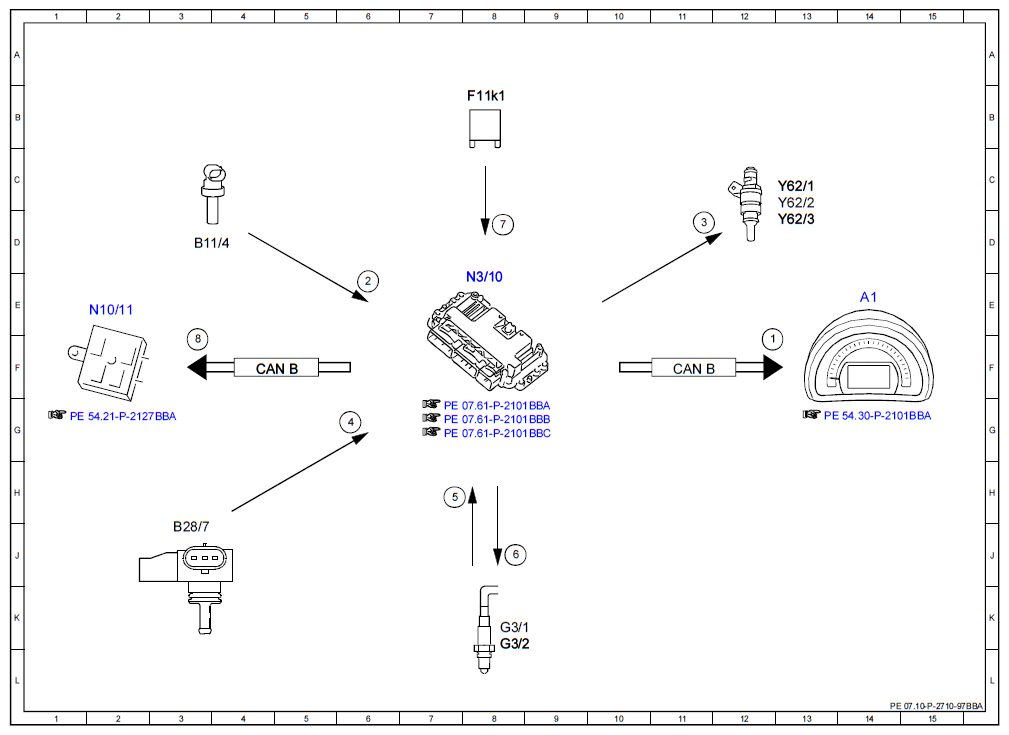

Electrical Function Schematic For Lambda Control - PE07.10-P-2710-97BBA
ENGINE 281.910 in MODEL 453.0/3/4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Instrument cluster, request | 13E |
| 2 | Coolant temperature sensor, signal | 6E |
| 3 | Injection valves, actuation | 12D |
| 4 | Engine load, signal | 6G |
| 5 | Oxygen sensor, signal | 7H |
| 6 | Oxygen sensor heater, actuation | 8J |
| 7 | Circuit 87, status | 8D |
| 8 | Engine running, signal | 3F |
| A1 | Instrument cluster | 14E |
| B11/4 | Coolant temperature sensor | 3D |
| B28/7 | Pressure sensor downstream of throttle valve | 3J |
| CAN B | Interior CAN | 11F |
| CAN B | Interior CAN | 4F |
| F11k1 | Engine function circuit 87 relay | 8B |
| G3/1 | Oxygen sensor downstream of catalytic converter | 8K |
| G3/2 | Oxygen sensor upstream of catalytic converter | 8K |
| N10/11 | Driver SAM control unit | 2E |
| N3/10 | ME-SFI [ME] control unit | 8E |
| Y62/1 | Cylinder 1 injection valve | 13C |
| Y62/2 | Cylinder 2 injection valve | 13C |
| Y62/3 | Cylinder 3 injection valve | 13D |
