Overview Of System Components For Theft Protection And Locking - GF80.00-P-9999KJ
MODEL 453.0/3/4

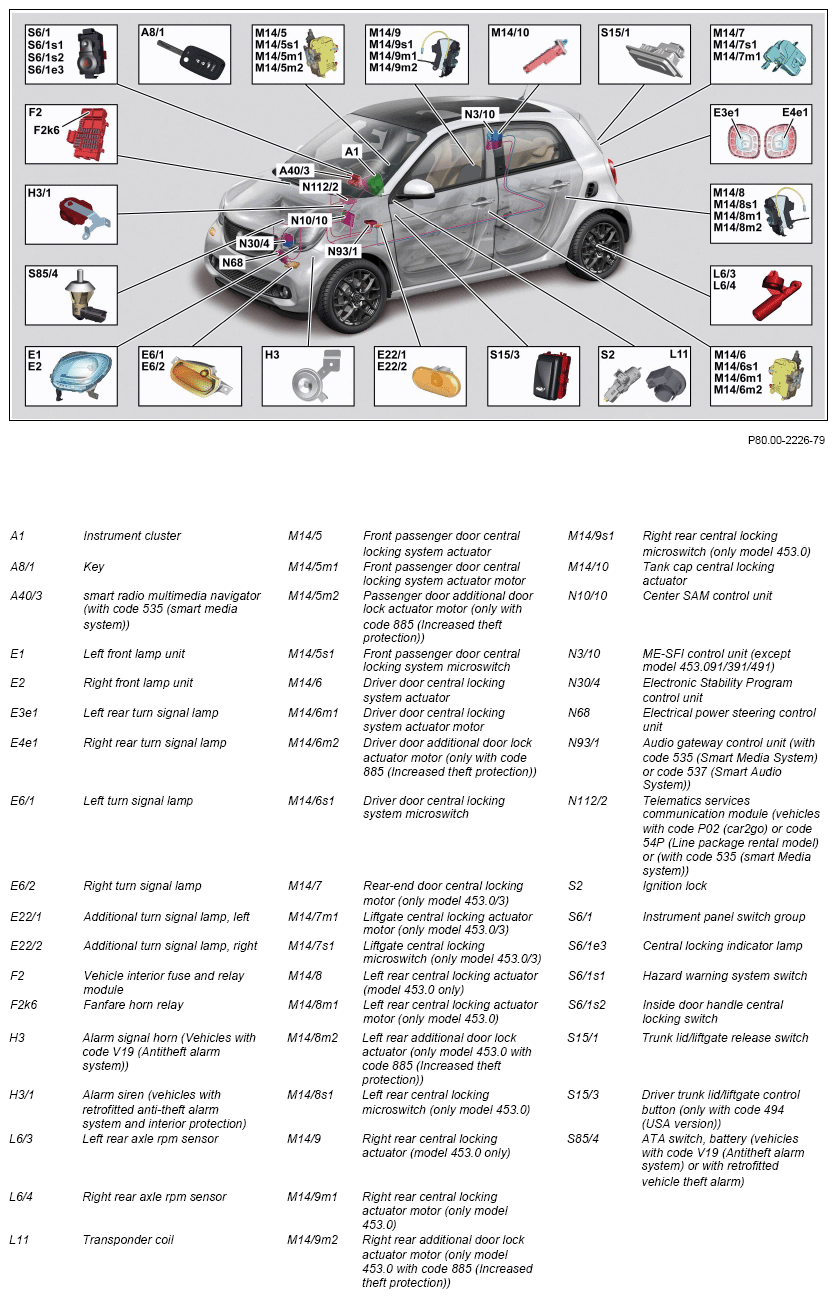

Shown on model 453.0 with engine 281 (except model 453.091)

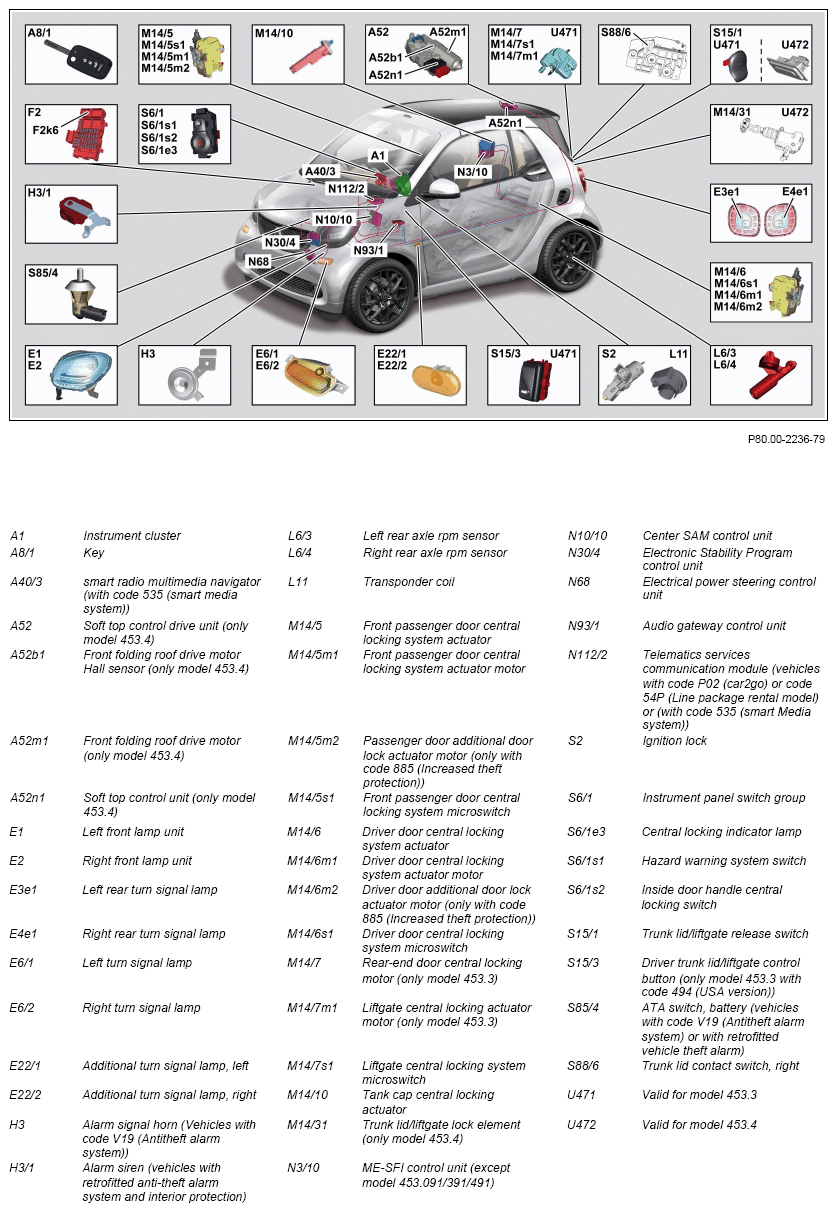

Survey or components, model 453.3/4 shown on model 453.4 with Motor 281 (except model 453.391/491)

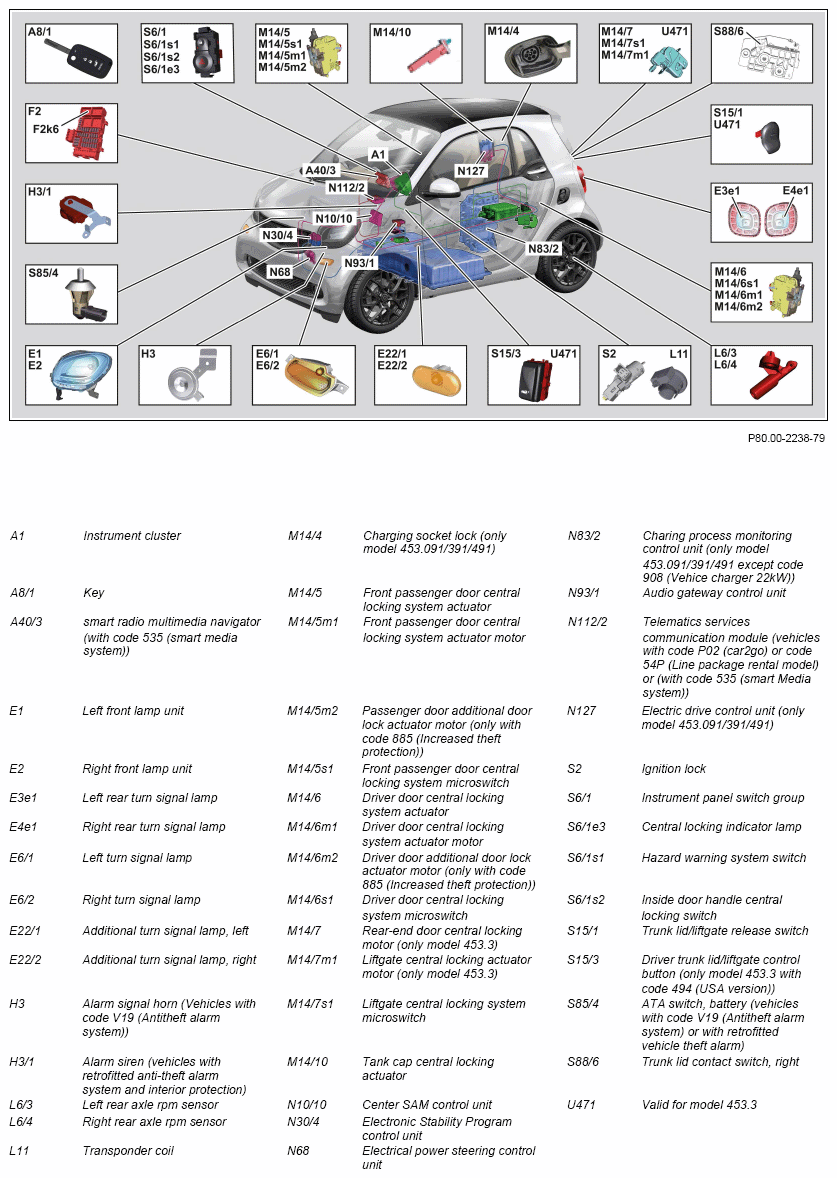

Survey of components for central locking, electrical vehicle (shown on model 453.391 except code 908 (Vehicle charger 22kW))
On model 453.091/391/491 with code 908 (vehicle charger 22kW) the charging socket lock is actuated via the charger control unit for high voltage battery (22 KW charger).
The following components are not shown with retrofitted antitheft alarm system with interior protection:
- Tow-away protection sensor (B33) (only on tow-away protection)
- ATA control unit (N26) (model 453.0/3)
- ATA ultrasonic sensor (B39/2) (model 453.0/3)
- ATA ultrasonic sensor 2 (B39/9) (model 453.0/3)
- Interior protection sensor 1 (B44/5) (model 453.4)
- Interior protection sensor 2 (B44/6) (model 453.4)
| Component description for instrument cluster | Model 453.0 (except 453.091/.391/491) with code K35 (Instrument cluster with h monochrome display) or with code K36 (Instrument cluster with colored 8.9 cm (3.5") Display) A1 |
GF54.30-P-6000KJ | |
| Model 453.091/391/491 with code K35 (instrument cluster with monochrome display) or with code K36 (Instrument cluster with colored 8.9 cm (3.5") display) | GF54.30-P-6000KJE | ||
| Smart media system, component description | Model 453.0/3/4 with code 535 (smart Media system) A40/3 |
GF82.85-P-3142KJ | |
| Soft top control unit, component description | Model 453.4 A52n1 |
GF77.39-P-3211KJ | |
| Component description for ME-SFI (ME) control unit | Engine 281.910 N3/10 |
GF07.61-P-6000KJ | |
| Engine 281.920 N3/10 |
GF07.61-P-6000KJF | ||
| Center SAM control unit, component description | N10/10 | GF54.21-P-7011KJ | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119KJ | |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010KJ | |
| Charge monitoring control unit, component description | Model 453.091/391/491 with engine 780 except code 908 (Bordlader 22kW) N83/2 | GF54.10-P-3015KJE | |
| High-voltage charger control unit, component description | Model 453.091/391/491 with engine 780 with code 908 (Bordlader 22kW) N83/10 | GF08.20-P-2000KJF | |
| Audio gateway control unit, component description | N93/1 | GF82.62-P-3119KJ | |
| Telematics services communications module, component description | Model 453.0/3/4 with code 535 (smart Media-System) or with code 54P (Line package rental model) or with code P02 (car2go) N112/2 | GF82.85-P-0220KJ | |
| Component description for electric drive control unit | Model 453.091/391/491 with engine 780 N127 | GF08.20-P-3001KJE | |
| Table of contents for function description of theft protection and locking | GF80.00-P-0999KJ |
