Overview Of System Components For Electric Mirror - GF88.79-P-9996KJ
MODEL 453.0/3/4
with CODE V21 (Electrically adjustable and heated outside mirrors (FFO))
MODEL 453.0/3/4
with CODE V35 (Automatically dimming interior mirror)

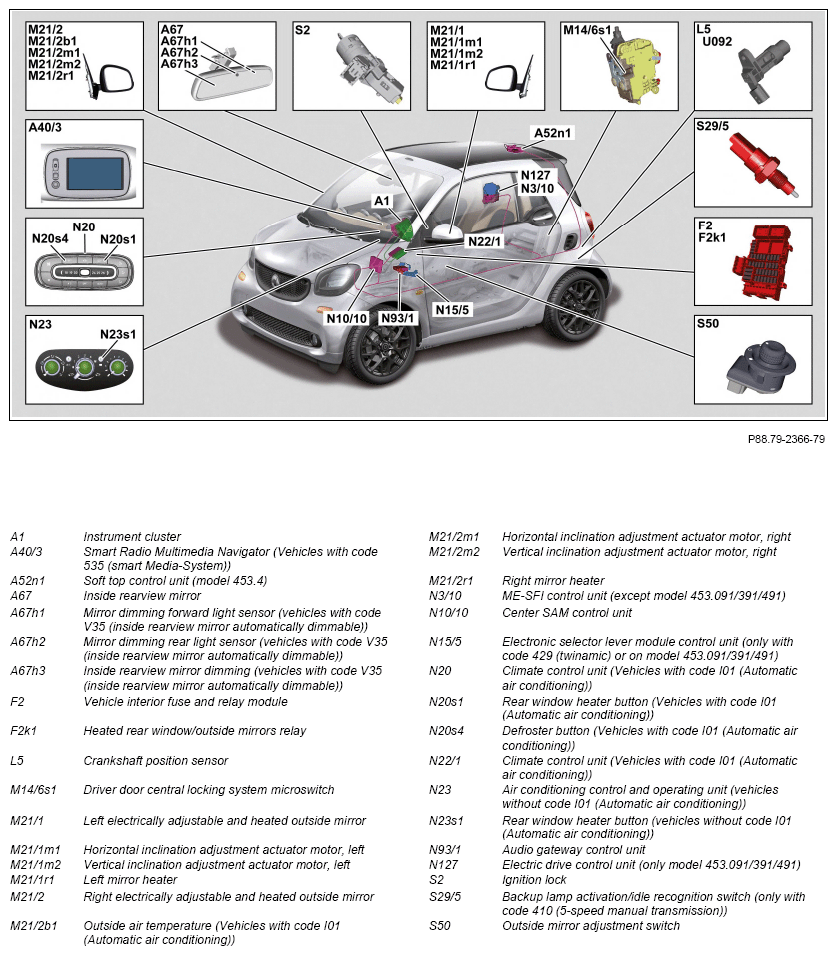

Shown on Model 453.4
| Component description for instrument cluster | Model 453.0 (except 453.091/391/491) with code K35 (Instrument cluster with monochrome display) or with code K36 (Instrument cluster with color 8.9 cm (3.5") display) A1 | GF54.30-P-6000KJ | |
| Model 453.091/391/491 with code K35 (instrument cluster with monochrome display) or with code K36 (Instrument cluster with colored 8.9 cm (3.5") display) | GF54.30-P-6000KJE | ||
| Soft top control control unit, component description | MODEL 453.4 A52n1 | GF77.39-P-3211KJ | |
| smart media system, component description | Vehicles with code 535 (smart Media-System) A40/3 | GF82.85-P-3142KJ | |
| Component description for ME-SFI (ME) control unit | Vehicles with engine 281.910 N3/10 | GF07.61-P-6000KJ | |
| Vehicles with engine 281.920 | GF07.61-P-6000KJF | ||
| Center SAM control unit, component description | N10/10 | GF54.21-P-7011KJ | |
| Component description for electronic selector lever module control unit | MODEL 453.0/3/4 with TRANSMISSION 700.4 N15/5 | GF27.60-P-5163KJ | |
| Model 453.091/391/491 | GF27.60-P-5163KJE | ||
| Climate control operating unit, component description | Model 453 (except 453.091/391/491) with code I01 (Automatic air conditioning) N20 | GF83.40-P-2261KJ | |
| Model 453.091/391/491 | GF83.40-P-2261KJE | ||
| Climate control control unit, component description | Model 453.0 (except 453.091/391/491) with Code I01 (Automatic air conditioning) N22/1 | GF83.40-P-2250KJ | |
| Model 453.091/391/491 | GF83.40-P-2250KJE | ||
| Component description for climate control control and operating unit | Model 453 (except 453.091/391/491) without code I01 (Automatic air conditioning) N23 |
GF83.40-P-3002KJ | |
| Audio gateway control unit, component description | N93/1 | GF82.62-P-3119KJ | |
| Component description for electric drive control unit | Model 453.091/391/491 with engine 780 N127 | GF08.20-P-3001KJE | |
| Table of contents for function description of electric mirrors | GF88.79-P-0996KJ |
